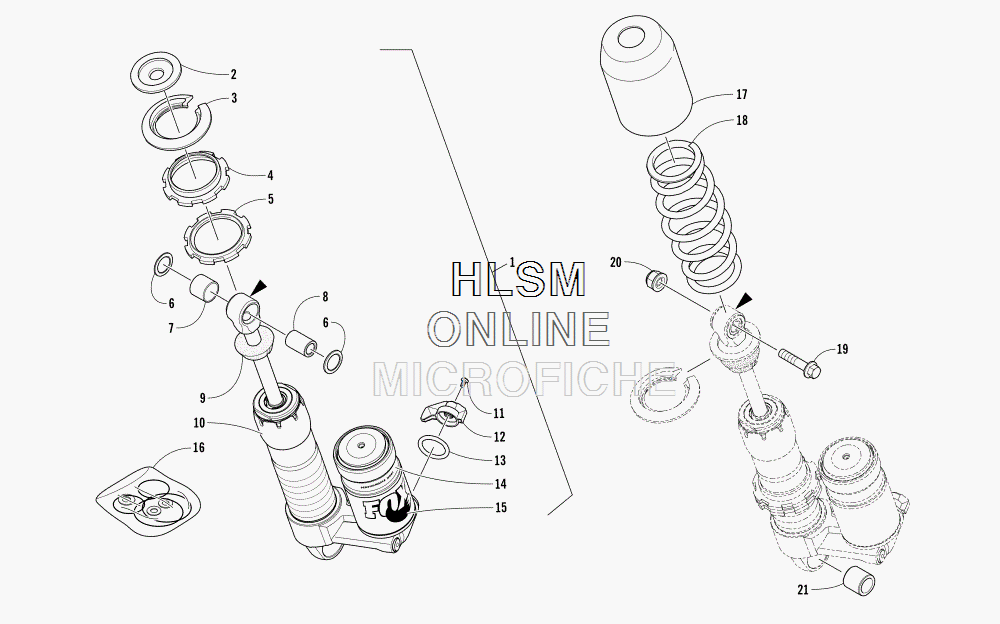

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
13704-212 SHOCK, FRONT ARM (INC. 2-12)SHOCK, FRONT ARM (INC. 2-12)
-
24604-187 ...RETAINING WASHER...RETAINING WASHER
-
34604-186 ...RETAINER, SPRING...RETAINER, SPRING
-
43603-027 ...PRELOAD RING, BACK-UP...PRELOAD RING, BACK-UP
-
53603-026 ...PRELOAD RING...PRELOAD RING
-
64604-206 ...SPACER...SPACER
-
73603-399 ...BUSHING, EYELET...BUSHING, EYELET
-
84604-223 ...AXLE, EYELET...AXLE, EYELET
-
93604-530 ...BUMPER...BUMPER
-
104604-016 ...GUIDE, SPRING...GUIDE, SPRING
-
113603-377 ...SCREW, MACHINE...SCREW, MACHINE
-
123603-520 ...KNOB, DAMPING ADJUSTER - REBOUND...KNOB, DAMPING ADJUSTER - REBOUND
-
133603-523 DECAL, BASE VALUEDECAL, BASE VALUE
-
143603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
153603-521 DECAL, RESERVOIRDECAL, RESERVOIR
-
163603-522 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
170604-790 COVER, SHOCKCOVER, SHOCK
-
181704-236 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
198413-845 SCREW, CAPSCREW, CAP
-
208437-804 NUT, LOCKNUT, LOCK
-
213604-906 BEARINGBEARING
