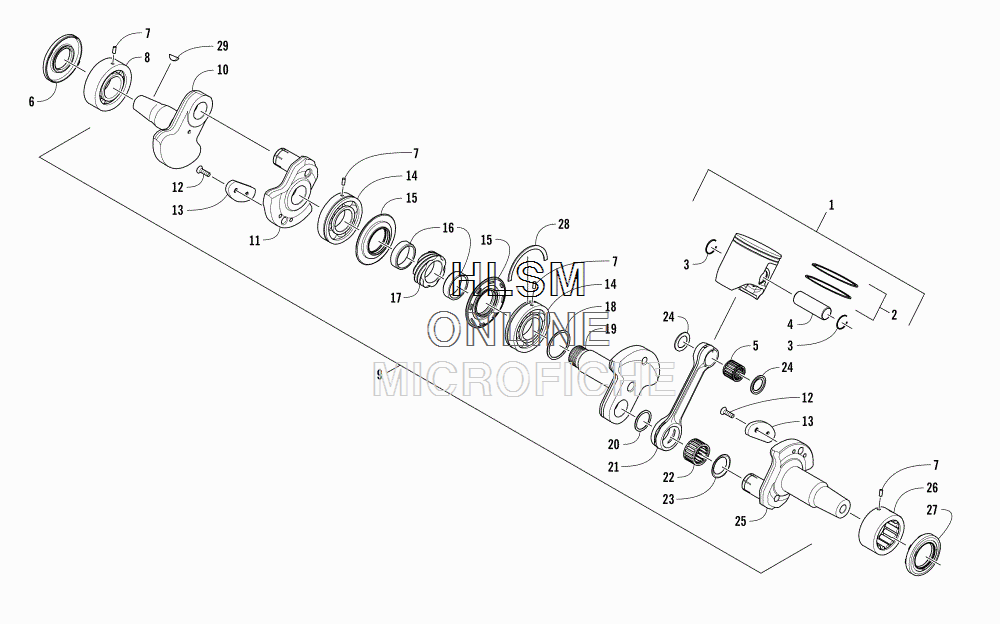

PISTON AND CRANKSHAFT для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
10905-187 PISTON SET (INC. 2-4)PISTON SET (INC. 2-4)
-
20905-176 ...RING SET, PISTON...RING SET, PISTON
-
30931-011 ...CIRCLIP, PISTON...CIRCLIP, PISTON
-
40905-160 ...PIN, PISTON...PIN, PISTON
-
50932-011 BEARINGBEARING
-
60930-039 SEAL, OILSEAL, OIL
-
70929-004 PIN, ALIGNMENTPIN, ALIGNMENT
-
80932-004 BEARINGBEARING
-
91905-004 CRANKSHAFT ASSEMBLY (INC. 10-23 AND 25)CRANKSHAFT ASSEMBLY (INC. 10-23 AND 25)
-
100905-059 ...CRANKSHAFT - MAG...CRANKSHAFT - MAG
-
110905-057 ...WHEEL, CRANKSHAFT...WHEEL, CRANKSHAFT
-
120905-045 ...SCREW, MACHINE...SCREW, MACHINE
-
130905-040 ...BALANCER, CRANKSHAFT...BALANCER, CRANKSHAFT
-
140932-001 ...BEARING...BEARING
-
150930-028 ...SEAL, OIL...SEAL, OIL
-
160905-047 ...SPACER...SPACER
-
170905-041 ...GEAR, PUMP DRIVE...GEAR, PUMP DRIVE
-
180905-044 ...SHIM, 40 X 46 X 1 MM...SHIM, 40 X 46 X 1 MM
-
190905-055 ...CRANKSHAFT - CENTER...CRANKSHAFT - CENTER
-
200905-066 ...SHIM, 27 X 33 X 1 MM...SHIM, 27 X 33 X 1 MM
-
210905-063 ...CONNECTING ROD...CONNECTING ROD
-
220932-012 ...BEARING...BEARING
-
230905-065 ...WASHER...WASHER
-
240905-086 SHIM, PISTONSHIM, PISTON
-
250905-061 CRANKSHAFT - PTOCRANKSHAFT - PTO
-
260932-009 BEARINGBEARING
-
270930-051 SEAL, OIL - PTO-SIDE (40 X 64 X 8)SEAL, OIL - PTO-SIDE (40 X 64 X 8)
-
280905-052 C-RINGC-RING
-
290829-006 KEYKEY
