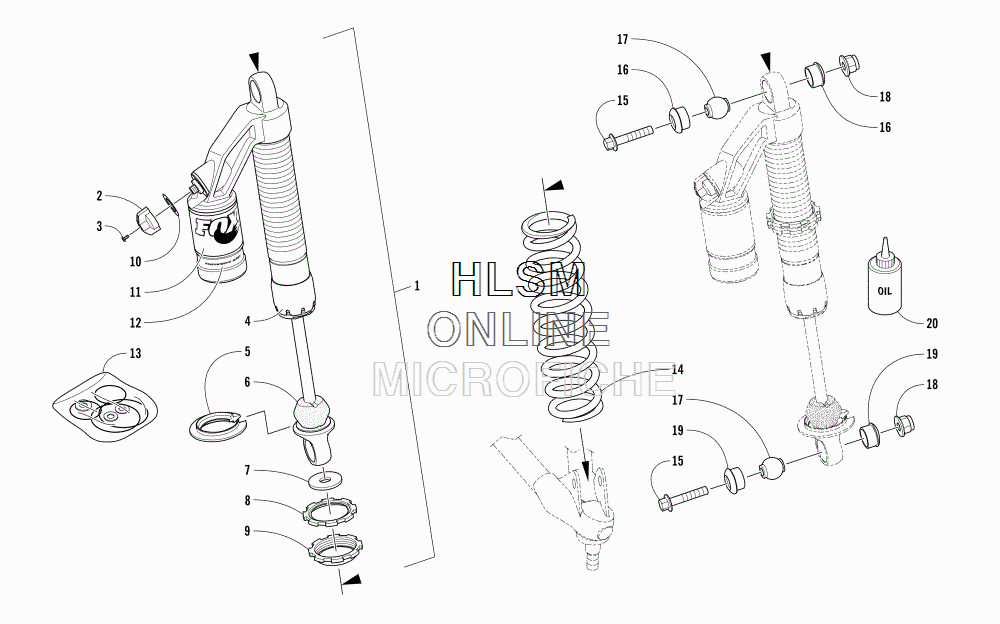

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
13703-746 COMPLETE SHOCK ABSORBER (INC. 2-13)COMPLETE SHOCK ABSORBER (INC. 2-13)
-
23603-623 ...DAMPING, ADJUST KNOB...DAMPING, ADJUST KNOB
-
33603-377 ...SCREW, MACHINE...SCREW, MACHINE
-
44604-016 ...GUIDE, SPRING...GUIDE, SPRING
-
54604-186 ...RETAINER, SPRING...RETAINER, SPRING
-
63603-024 ...BUMPER, SHAFT...BUMPER, SHAFT
-
73603-028 ...WASHER...WASHER
-
83603-026 ...PRELOAD RING...PRELOAD RING
-
93603-027 ...PRELOAD RING, BACK-UP...PRELOAD RING, BACK-UP
-
103603-523 ...DECAL, BASE VALUE...DECAL, BASE VALUE
-
113603-521 ...DECAL, RESERVOIR...DECAL, RESERVOIR
-
123603-365 ...DECAL, "PERFORMANCE SERIES"...DECAL, "PERFORMANCE SERIES"
-
133603-522 ...KIT, SEAL/CAP REBUILD...KIT, SEAL/CAP REBUILD
-
143703-496 SPRING, COMPRESSION - WHITESPRING, COMPRESSION - WHITE
-
158413-850 SCREW, CAPSCREW, CAP
-
163603-260 BUSHINGBUSHING
-
173603-261 SLEEVESLEEVE
-
188437-804 NUT, LOCKNUT, LOCK
-
193603-296 BUSHINGBUSHING
-
205639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
