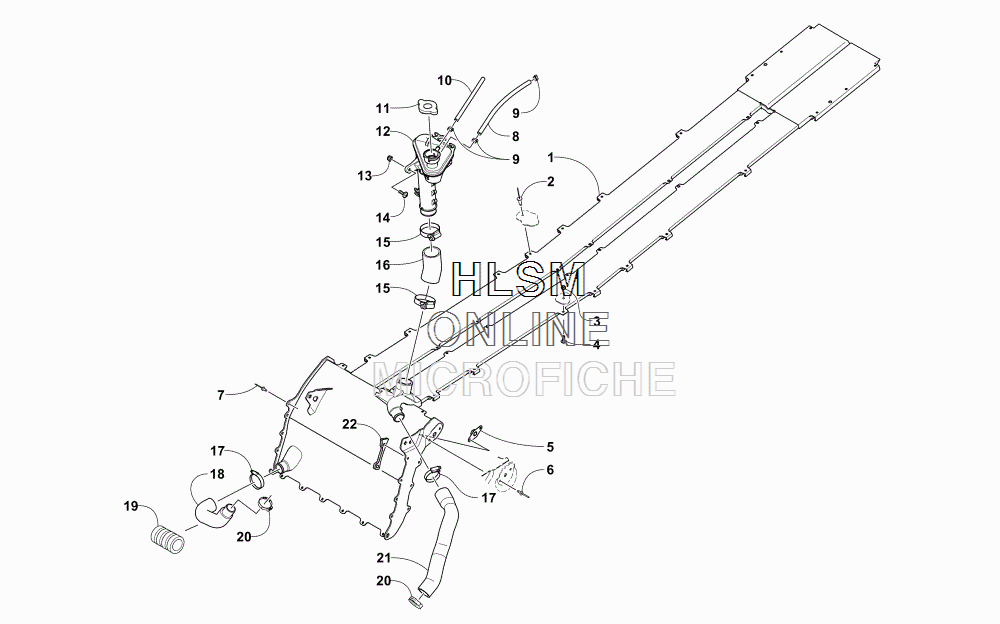

COOLING ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
10713-113 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-702 RIVET - BLACKRIVET - BLACK
-
38422-502 NUTNUT
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-688 RIVET - ZINCRIVET - ZINC
-
78060-706 RIVET - BLACKRIVET - BLACK
-
80610-538 HOSE - 25 FTHOSE - 25 FT
-
91623-655 CLAMP, HOSECLAMP, HOSE
-
100610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
100610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
110413-255 CAP, RADIATORCAP, RADIATOR
-
120613-135 TANK, COOLANTTANK, COOLANT
-
138422-602 NUTNUT
-
148476-625 SCREW, CAPSCREW, CAP
-
150423-317 CLAMPCLAMP
-
160610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
172623-088 CLAMP, HOSECLAMP, HOSE
-
180610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
190619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
201623-656 CLAMP, HOSECLAMP, HOSE
-
210613-191 HOSE, COOLANT - HEAT EXCHANGER/ENGINEHOSE, COOLANT - HEAT EXCHANGER/ENGINE
-
220613-272 BUMPER, PROTECTOR - COOLANT HOSEBUMPER, PROTECTOR - COOLANT HOSE
