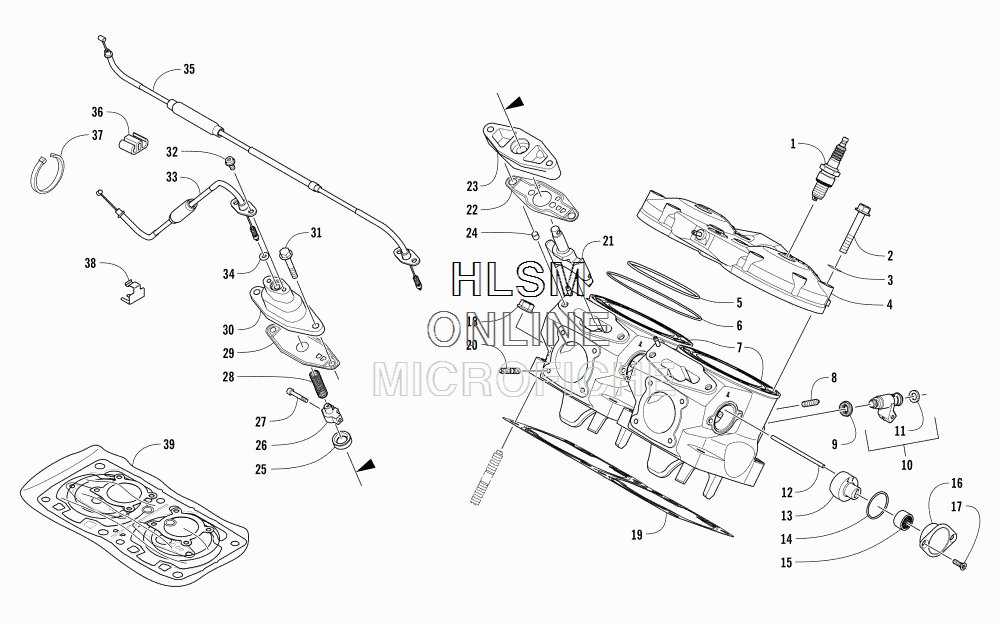

CYLINDER AND HEAD ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
10217-762 PLUG, SPARKPLUG, SPARK
-
20923-012 SCREW, CAPSCREW, CAP
-
30930-019 O-RINGO-RING
-
41904-004 HEAD, CYLINDERHEAD, CYLINDER
-
50930-033 O-RINGO-RING
-
60930-041 O-RINGO-RING
-
71904-003 CYLINDERCYLINDER
-
80923-046 BOLT, STUDBOLT, STUD
-
90930-032 SEAL, INJECTORSEAL, INJECTOR
-
100910-027 INJECTOR (INC. 11)INJECTOR (INC. 11)
-
110930-036 ...O-RING...O-RING
-
120923-044 PIN, EXHAUST SIDE VALVEPIN, EXHAUST SIDE VALVE
-
130909-032 VALVE, EXHAUST SIDE - STL - RIGHTVALVE, EXHAUST SIDE - STL - RIGHT
-
130909-033 VALVE, EXHAUST SIDE - STL - LEFTVALVE, EXHAUST SIDE - STL - LEFT
-
140930-043 O-RINGO-RING
-
150932-018 BEARING, NEEDLEBEARING, NEEDLE
-
160909-010 CAP, EXHAUST SIDE VALVECAP, EXHAUST SIDE VALVE
-
170923-051 SCREW, MACHINESCREW, MACHINE
-
180923-029 NUTNUT
-
190930-029 GASKET, CYLINDERGASKET, CYLINDER
-
200923-053 BOLT, STUDBOLT, STUD
-
210909-031 VALVE, EXHAUSTVALVE, EXHAUST
-
220930-022 GASKET, EXHAUST VALVE CASEGASKET, EXHAUST VALVE CASE
-
231909-001 PLATE, EXHAUST VALVE (INC. 24-25)PLATE, EXHAUST VALVE (INC. 24-25)
-
240829-062 ...PIN, DOWEL...PIN, DOWEL
-
250930-001 ...SEAL, OIL...SEAL, OIL
-
260909-041 CLAMP, EXHAUST VALVECLAMP, EXHAUST VALVE
-
270923-005 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
280909-020 SPRINGSPRING
-
290930-010 GASKET, EXHAUST VALVE COVERGASKET, EXHAUST VALVE COVER
-
300909-018 COVER, EXHAUST VALVECOVER, EXHAUST VALVE
-
310923-021 SCREW, CAPSCREW, CAP
-
320923-002 SCREW, CAPSCREW, CAP
-
330909-044 CABLE, EXHAUST VALVE - MAGCABLE, EXHAUST VALVE - MAG
-
340930-008 O-RINGO-RING
-
350909-043 CABLE, EXHAUST VALVE - PTOCABLE, EXHAUST VALVE - PTO
-
360909-001 CLAMP, EXHAUST VALVE CABLECLAMP, EXHAUST VALVE CABLE
-
370123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
380909-002 CLIP, RETAININGCLIP, RETAINING
-
397639-735 GASKET SET - TOP ENDGASKET SET - TOP END
-
397639-734 GASKET SET - COMPLETEGASKET SET - COMPLETE
