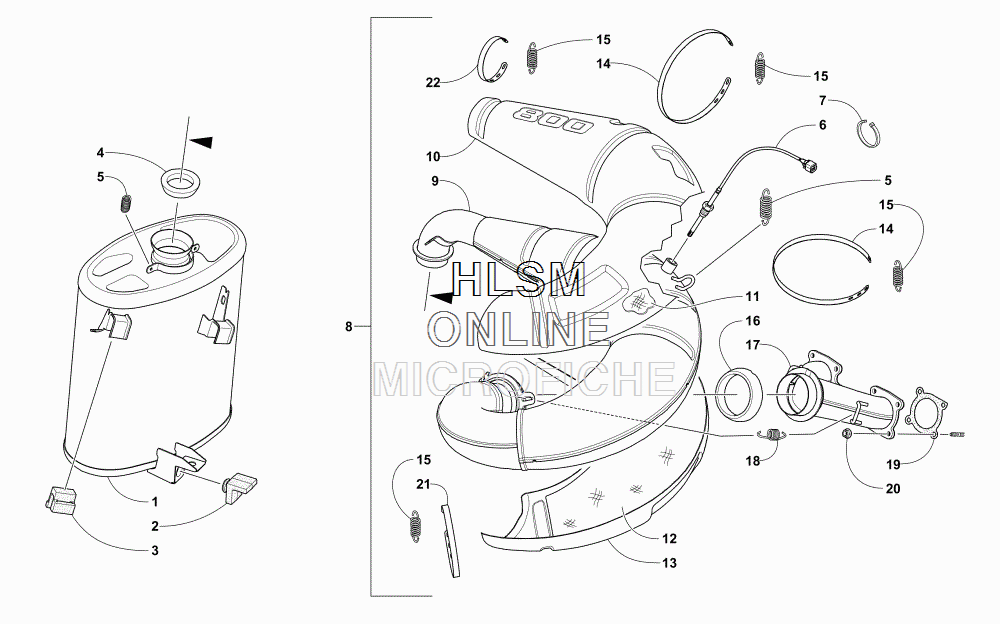

EXHAUST ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
12712-080 RESONATORRESONATOR
-
22612-706 GROMMET - LOWERGROMMET - LOWER
-
32612-893 GROMMET - UPPERGROMMET - UPPER
-
41612-619 GASKET, EXHAUST - TAILPIPEGASKET, EXHAUST - TAILPIPE
-
52612-949 SPRINGSPRING
-
60630-330 SENSOR, EXHAUST TEMPERATURESENSOR, EXHAUST TEMPERATURE
-
70123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
82712-072 CHAMBER, EXPANSION (INC. 9-15 AND 21-22)CHAMBER, EXPANSION (INC. 9-15 AND 21-22)
-
92712-075 ...CHAMBER, EXPANSION...CHAMBER, EXPANSION
-
103612-268 ...COVER, EXPANSION CHAMBER - UPPER...COVER, EXPANSION CHAMBER - UPPER
-
113612-270 ...PACKING, EXPANSION CHAMBER - UPPER...PACKING, EXPANSION CHAMBER - UPPER
-
123612-271 ...PACKING, EXPANSION CHAMBER - LOWER...PACKING, EXPANSION CHAMBER - LOWER
-
133612-269 ...COVER, EXPANSION CHAMBER - LOWER...COVER, EXPANSION CHAMBER - LOWER
-
142612-786 ...BAND, TIE...BAND, TIE
-
151612-178 ...SPRING, EXHAUST...SPRING, EXHAUST
-
162612-059 GASKET, EXHAUST - MANIFOLDGASKET, EXHAUST - MANIFOLD
-
171712-996 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
183612-096 SPRING, EXHAUSTSPRING, EXHAUST
-
190930-016 GASKET, EXHAUSTGASKET, EXHAUST
-
208424-604 NUTNUT
-
212612-785 BAND, TIEBAND, TIE
-
222612-784 BAND, TIEBAND, TIE
