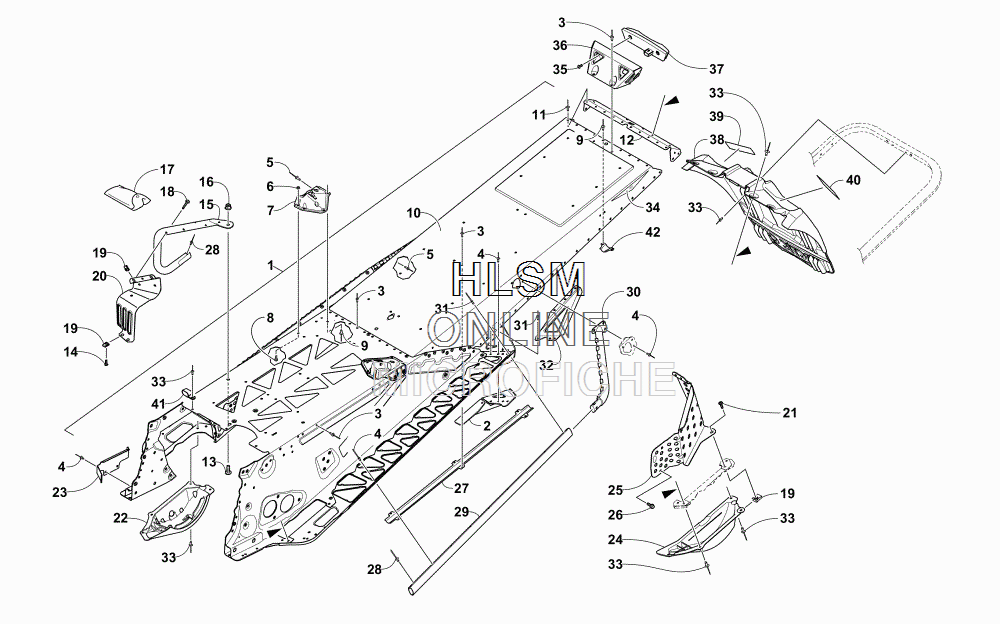

TUNNEL AND SNOWFLAP ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
–3707-125 COMPLETE CHASSIS ASSEMBLY - GREENCOMPLETE CHASSIS ASSEMBLY - GREEN
-
13707-198 TUNNEL ASSEMBLY - GREEN (INC. 2-12 AND 29-32)TUNNEL ASSEMBLY - GREEN (INC. 2-12 AND 29-32)
-
23707-176 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN...BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
-
23707-177 ...BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN...BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
-
38060-682 ...RIVET...RIVET
-
48060-686 ...RIVET - ZINC...RIVET - ZINC
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
73707-174 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
-
73707-175 ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
-
88475-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
103707-197 ...TUNNEL, REAR - GREEN...TUNNEL, REAR - GREEN
-
118060-504 ...RIVET...RIVET
-
123707-173 ...END CAP, TUNNEL - GREEN...END CAP, TUNNEL - GREEN
-
138476-820 SCREW, MACHINESCREW, MACHINE
-
148470-516 SCREW, MACHINESCREW, MACHINE
-
153707-072 SUPPORT, FOOTREST - RIGHT - GREENSUPPORT, FOOTREST - RIGHT - GREEN
-
153707-073 SUPPORT, FOOTREST - LEFT - GREENSUPPORT, FOOTREST - LEFT - GREEN
-
168427-802 NUTNUT
-
170744-090 KIT, TOOLKIT, TOOL
-
188468-535 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
203707-024 FOOTREST - RIGHT - GREENFOOTREST - RIGHT - GREEN
-
203707-025 FOOTREST - LEFT - GREENFOOTREST - LEFT - GREEN
-
218470-520 SCREW, MACHINESCREW, MACHINE
-
221607-646 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
230608-705 BRACKET, ROUTING - OIL LINEBRACKET, ROUTING - OIL LINE
-
241607-645 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
253707-236 SHIELD, BRAKE DISC - GREENSHIELD, BRAKE DISC - GREEN
-
268408-613 SCREW, CAPSCREW, CAP
-
270630-307 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
281623-130 RIVETRIVET
-
293707-179 ROLL, TUNNEL - GREENROLL, TUNNEL - GREEN
-
303707-182 GUSSET, TUNNEL ROLL - RIGHT - GREENGUSSET, TUNNEL ROLL - RIGHT - GREEN
-
303707-183 GUSSET, TUNNEL ROLL - LEFT - GREENGUSSET, TUNNEL ROLL - LEFT - GREEN
-
311623-241 RIVETRIVET
-
323707-180 GUSSET, RUNNING BOARD - RIGHT - GREENGUSSET, RUNNING BOARD - RIGHT - GREEN
-
323707-181 GUSSET, RUNNING BOARD - LEFT - GREENGUSSET, RUNNING BOARD - LEFT - GREEN
-
338061-706 RIVETRIVET
-
340621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
358470-510 SCREW, MACHINESCREW, MACHINE
-
360730-281 BRACKET, MOUNTING - TAILLIGHT - GREENBRACKET, MOUNTING - TAILLIGHT - GREEN
-
370609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
386606-394 SNOWFLAPSNOWFLAP
-
395611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
405611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
411623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
420630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
