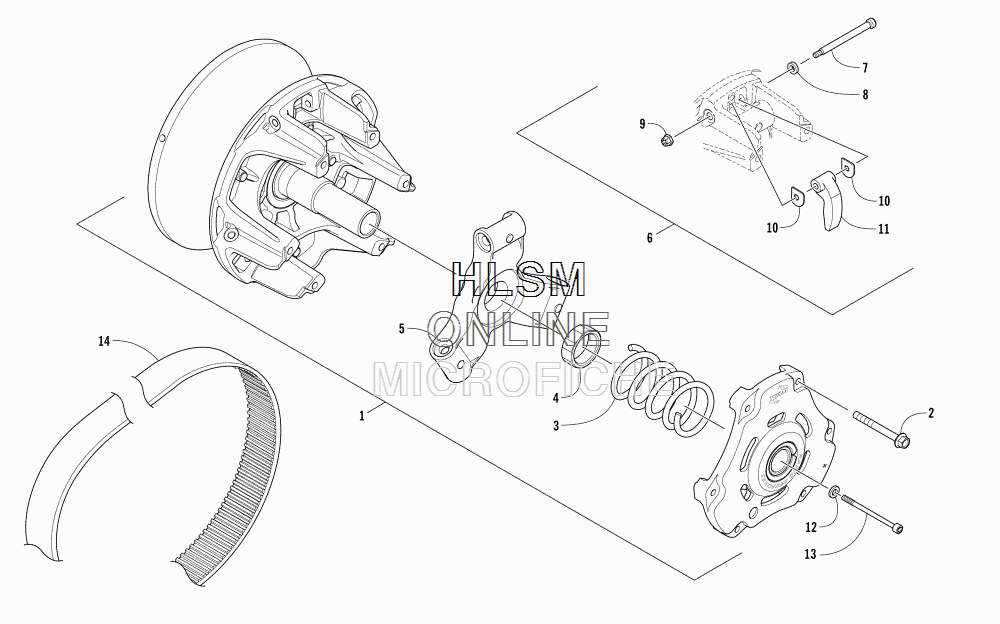

DRIVE CLUTCH для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
10746-888 CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-6, AND 8-11)CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-6, AND 8-11)
-
20646-950 ...SCREW, SHOULDER...SCREW, SHOULDER
-
30646-875 SPRING, DRIVE CLUTCHSPRING, DRIVE CLUTCH
-
40646-979 NUT, JAMNUT, JAM
-
50646-956 SPIDERSPIDER
-
67639-127 KIT, CAM ARM (INC. 7-10)KIT, CAM ARM (INC. 7-10)
-
70823-396 ...PIN, CAM ARM...PIN, CAM ARM
-
82623-091 ...WASHER...WASHER
-
90823-399 ...NUT, LOCK...NUT, LOCK
-
100646-880 ...WASHER, THRUST...WASHER, THRUST
-
110646-906 ARM, CAMARM, CAM
-
121623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
131623-792 BOLT, CLUTCHBOLT, CLUTCH
-
140627-111 BELT, DRIVEBELT, DRIVE
