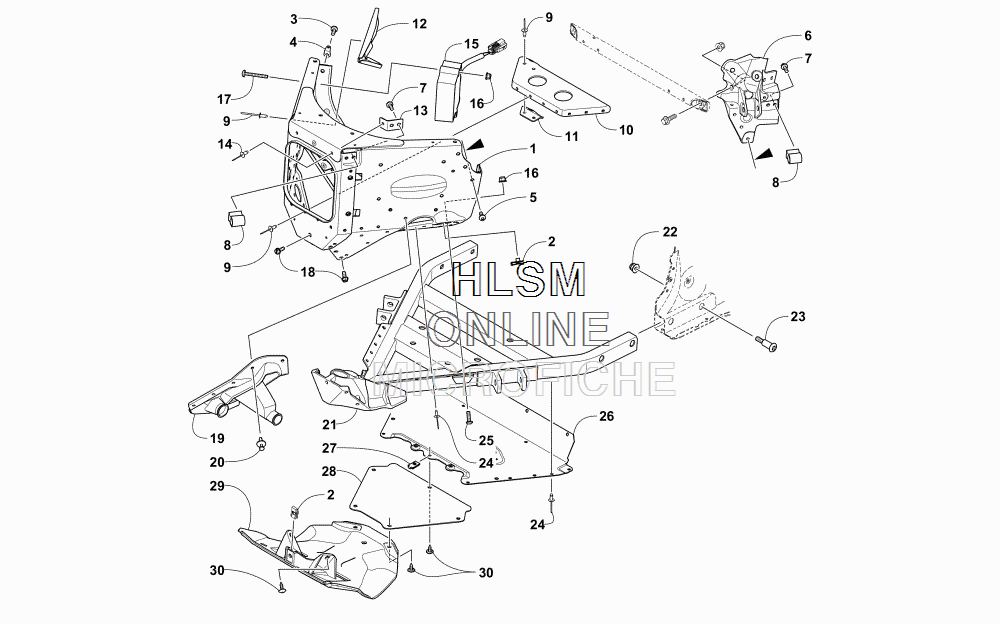

FRONT FRAME ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
12707-494 PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-6)PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-6)
-
20423-577 ...CLIP, U-NUT...CLIP, U-NUT
-
31623-683 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
42612-707 ...TAB, SPRING...TAB, SPRING
-
50423-538 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
61707-776 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
-
61707-777 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
-
78413-617 SCREW, CAPSCREW, CAP
-
81607-233 BRACKET, MOUNTING - UPPER A-ARMBRACKET, MOUNTING - UPPER A-ARM
-
98060-706 RIVET - BLACKRIVET - BLACK
-
101607-565 BRACKET, REINFORCEMENT - LOWERBRACKET, REINFORCEMENT - LOWER
-
111607-566 BRACE, STEERING POST - LOWERBRACE, STEERING POST - LOWER
-
120607-991 BRACKET, STEERING STOPBRACKET, STEERING STOP
-
131607-561 GUSSET, A-ARM MOUNTING BRACKETGUSSET, A-ARM MOUNTING BRACKET
-
141623-241 RIVETRIVET
-
150630-366 REGULATOR/RECTIFIERREGULATOR/RECTIFIER
-
168427-602 NUT, LOCKNUT, LOCK
-
178468-645 SCREW, MACHINESCREW, MACHINE
-
181623-959 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
191605-028 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
191605-029 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
200623-362 CLIP, RETAININGCLIP, RETAINING
-
213707-130 FRAME, FRONT - LOWER W/BUSHINGS - BLACKFRAME, FRONT - LOWER W/BUSHINGS - BLACK
-
228427-802 NUTNUT
-
231623-817 SCREW, SHOULDERSCREW, SHOULDER
-
248060-686 RIVET - ZINCRIVET - ZINC
-
258468-620 SCREW, MACHINESCREW, MACHINE
-
261607-629 BELLY PAN - CENTERBELLY PAN - CENTER
-
271623-052 CLIP, U-NUTCLIP, U-NUT
-
281607-063 PANEL, ACCESSPANEL, ACCESS
-
297606-053 BELLY PAN - FRONTBELLY PAN - FRONT
-
302623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
