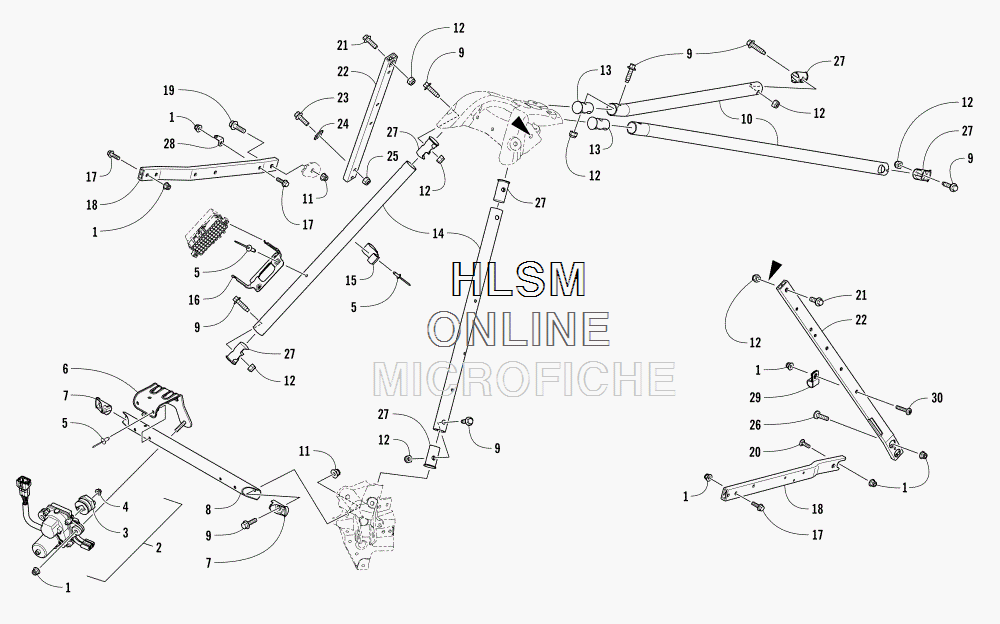

STEERING SUPPORT ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
20902-012 SERVOMOTOR (INC. 3-4)SERVOMOTOR (INC. 3-4)
-
30902-019 ...PULLEY, CONTROLLER...PULLEY, CONTROLLER
-
48424-501 ...NUT...NUT
-
58060-686 RIVET - ZINCRIVET - ZINC
-
60708-642 BRACKET, SERVOMOTORBRACKET, SERVOMOTOR
-
71607-002 INSERTINSERT
-
81707-582 SUPPORT, SHOCK MOUNT BRACKET - BLACKSUPPORT, SHOCK MOUNT BRACKET - BLACK
-
92623-121 SCREW, CAPSCREW, CAP
-
102707-686 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
102707-687 SPAR, REAR - LEFTSPAR, REAR - LEFT
-
118427-802 NUTNUT
-
128422-802 NUT, LOCKNUT, LOCK
-
131607-680 INSERTINSERT
-
142707-424 SPAR, FRONT - BLACKSPAR, FRONT - BLACK
-
151623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
160645-653 BRACKET, MOUNTING - FUSE BLOCKBRACKET, MOUNTING - FUSE BLOCK
-
178408-630 SCREW, CAPSCREW, CAP
-
180607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
181607-583 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
198408-885 SCREW, CAPSCREW, CAP
-
201623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
218408-820 SCREW, CAPSCREW, CAP
-
220607-252 SUPPORT, SIDE - REAR - RIGHTSUPPORT, SIDE - REAR - RIGHT
-
221607-581 SUPPORT, SIDE - REAR - LEFTSUPPORT, SIDE - REAR - LEFT
-
238408-625 SCREW, CAPSCREW, CAP
-
248053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
258422-602 NUTNUT
-
268476-616 SCREW, MACHINESCREW, MACHINE
-
271607-747 INSERTINSERT
-
282612-707 TAB, SPRINGTAB, SPRING
-
292623-083 CLAMP, ROUTINGCLAMP, ROUTING
-
308476-625 SCREW, CAPSCREW, CAP
