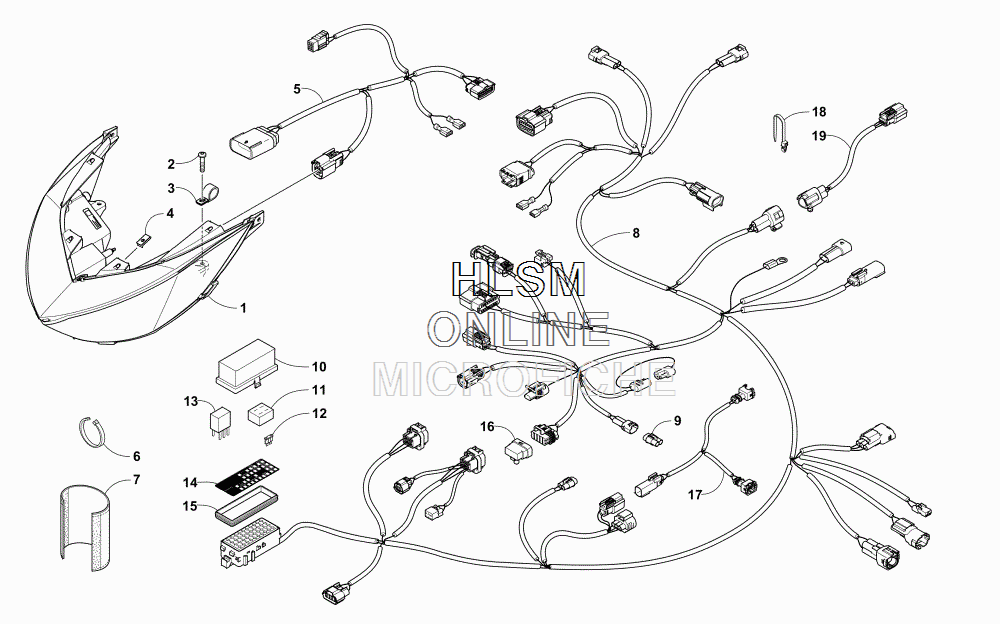

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
10609-959 HEADLIGHT, LED - ASSEMBLYHEADLIGHT, LED - ASSEMBLY
-
21623-915 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
31623-675 CLAMPCLAMP
-
40423-031 NUT, SPEEDNUT, SPEED
-
51686-770 HARNESS, HOODHARNESS, HOOD
-
60123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
60123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
60123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
76706-704 WRAP, HARNESSWRAP, HARNESS
-
81686-848 HARNESS, MAIN (INC. 9-15)HARNESS, MAIN (INC. 9-15)
-
90630-325 ...PLUG...PLUG
-
100430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
110430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
120430-068 ...FUSE - 7.5 AMP...FUSE - 7.5 AMP
-
120430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
120430-098 ...FUSE - 20 AMP...FUSE - 20 AMP
-
120430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
130430-033 ...RELAY (5-PIN) 30 AMP...RELAY (5-PIN) 30 AMP
-
143621-615 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
150430-086 ...SEAL...SEAL
-
160430-103 COVER, DIAGNOSTICS CONNECTORCOVER, DIAGNOSTICS CONNECTOR
-
171686-663 HARNESS, EXTENSION - INJECTORHARNESS, EXTENSION - INJECTOR
-
180623-677 TIE, CABLE - PUSH MOUNTTIE, CABLE - PUSH MOUNT
-
191686-641 HARNESS, EXTENSION - TAILLIGHTHARNESS, EXTENSION - TAILLIGHT
