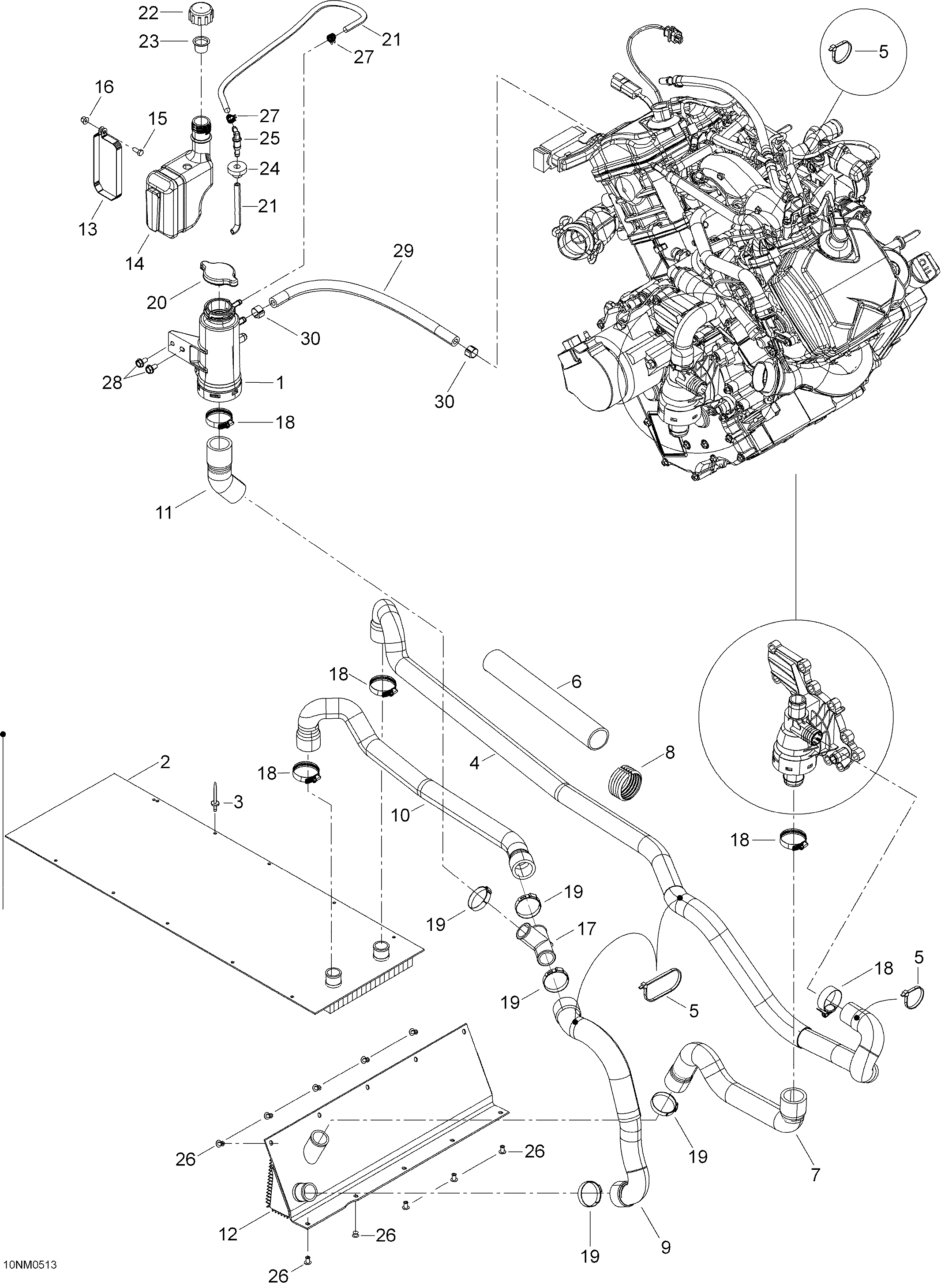

01- Cooling для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1509000176 Filler neck assyFiller neck assy
-
25246648 RadiatorRadiator
-
336083 RivetRivet
-
4605249835 Hose, pump-radiatorHose, pump-radiator
-
527126 Tie rapTie rap
-
527100 Tie rapTie rap
-
639062 TubingTubing
-
7509000104 HoseHose
-
8390003 Protective shield (1000 mm)Protective shield (1000 mm)
-
9509000193 Hose, tank-front radiatorHose, tank-front radiator
-
10605349836 Hose, T-piece-rear radiatorHose, T-piece-rear radiator
-
11509000195 HoseHose
-
12509000146 Front radiatorFront radiator
-
13509000191 Bracket, coolant-tankBracket, coolant-tank
-
14709200099 Coolant-tankCoolant-tank
-
1540247 Screw M5 x 16Screw M5 x 16
-
1633062 Elastic flanged nut M5Elastic flanged nut M5
-
17509000219 T-fittingT-fitting
-
18408800400 Hose clampHose clamp
-
19509000045 Hose clampHose clamp
-
20509000180 Cap pressureCap pressure
-
21415110000 Overflow hoseOverflow hose
-
22709200009 CapCap
-
23709200034 Cap protectorCap protector
-
24570135100 GrommetGrommet
-
25414580600 ConnectorConnector
-
2636489 RivetRivet
-
27414554800 Hose clampHose clamp
-
2840327 Screw M6 x 12Screw M6 x 12
-
29509000304 HoseHose
-
30293650170 Hose clampHose clamp
