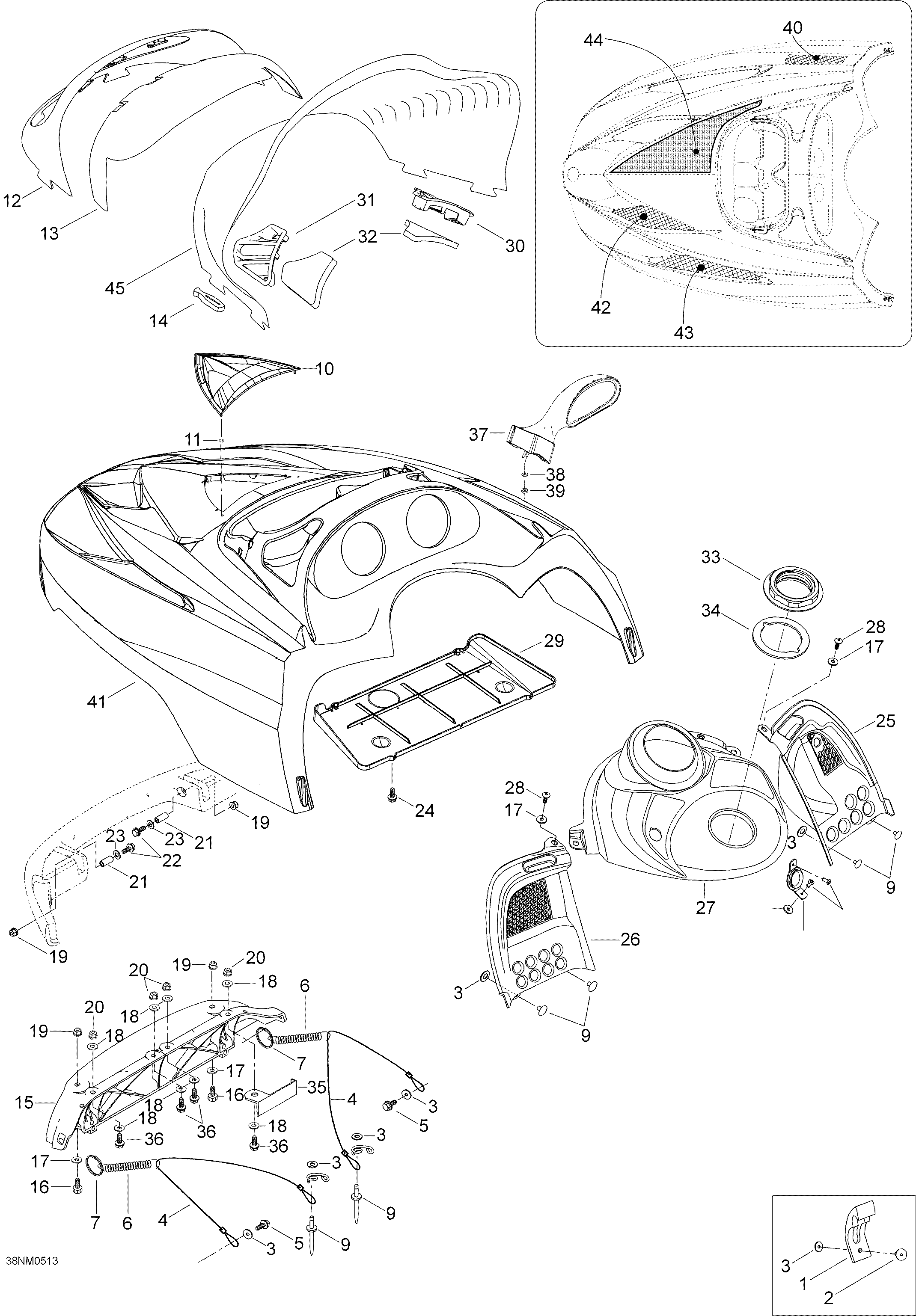

09- Hood для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1570027100 LatchLatch
-
236037 RivetRivet
-
320008 Washer A5,3Washer A5,3
-
4414581400 Retainer cableRetainer cable
-
540177 Screw B4,8 x 16Screw B4,8 x 16
-
6415043300 SpringSpring
-
7415058300 RingRing
-
85442870 BracketBracket
-
936036 RivetRivet
-
10517303016 Grill, middleGrill, middle
-
1141034 CirclipCirclip
-
12517302158 Moulding Head LampMoulding Head Lamp
-
13517302003 Windshield supportWindshield support
-
14570023800 LatchLatch
-
15517302631 Hinge halfHinge half
-
1640381 Socket head screw M6 x 20Socket head screw M6 x 20
-
1720117 WasherWasher
-
1820009 Washer A6,4Washer A6,4
-
1933200 Elastic flanged nut M6Elastic flanged nut M6
-
2033010 Elastic stop nut M6Elastic stop nut M6
-
21517302179 BushingBushing
-
2240003 Hex. screw M6 x 35Hex. screw M6 x 35
-
2320003 Washer A6,4Washer A6,4
-
24243141640 Screw, Plastite M4.8 x 16Screw, Plastite M4.8 x 16
-
25517302709 R.H. ConsolR.H. Consol
-
26517302006 L.H. ConsolL.H. Consol
-
27517302702 ConsolConsol
-
28732600030 ScrewScrew
-
29605351270 Air intake plateAir intake plate
-
30517302024 R.H. Grill-air intakeR.H. Grill-air intake
-
31517302025 L.H. Grill-air intakeL.H. Grill-air intake
-
32605450267 FilterFilter
-
33517302043 NutNut
-
345447116 GasketGasket
-
355448263 R.H. Support plateR.H. Support plate
-
355448264 L.H. Support plateL.H. Support plate
-
3640030 Hex. screw M6 x 20Hex. screw M6 x 20
-
37517302764 R.H. MirrorR.H. Mirror
-
37517302766 L.H. MirrorL.H. Mirror
-
3820037 Washer A4,3Washer A4,3
-
3933008 Elastic stop nut M4Elastic stop nut M4
-
40517302998 R.H. GrillR.H. Grill
-
41605151290 Hood, pre ass'y (Earth grey). Includes 41 to 43Hood, pre ass'y (Earth grey). Includes 41 to 43
-
425346887 L.H. Front grillL.H. Front grill
-
425346888 R.H. Front grillR.H. Front grill
-
435346889 L.H. Rear grillL.H. Rear grill
-
44414631900 Heat protectorHeat protector
-
45605152462 WindshieldWindshield
