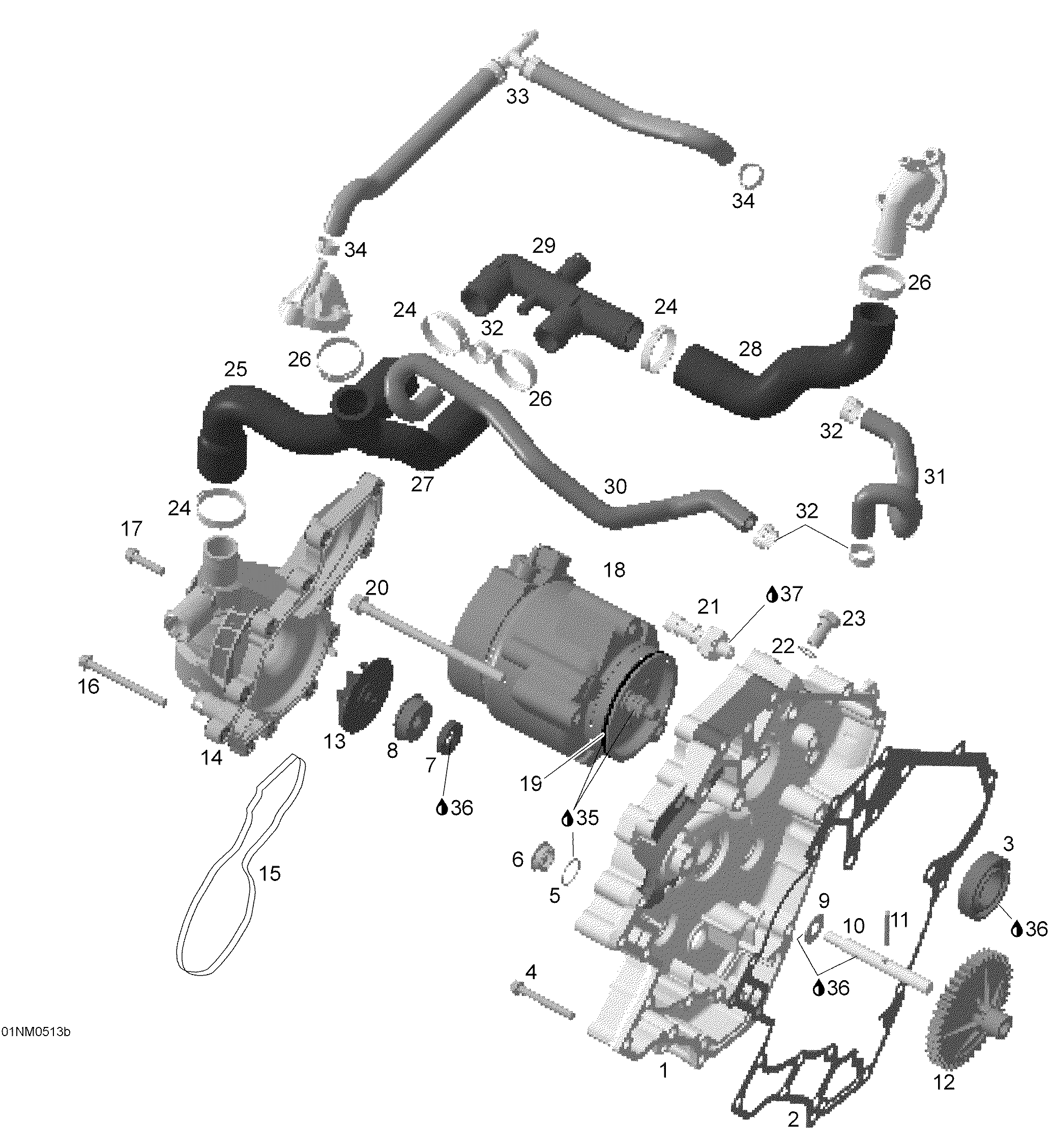

01- Waterpump And Alternator для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1420811663 Ignition coverIgnition cover
-
2420950590 GasketGasket
-
3420932650 Ball bearingBall bearing
-
4420440322 Screw M6 x 45Screw M6 x 45
-
5420250890 O-ringO-ring
-
6420241801 Plug screwPlug screw
-
7420650310 Oil sealOil seal
-
8420650370 Rotary sealRotary seal
-
9420227685 Thrust washerThrust washer
-
10420837480 Waterpump shaftWaterpump shaft
-
11420232430 Needle pinNeedle pin
-
12420834460 Waterpump gear (41 teeth)Waterpump gear (41 teeth)
-
13420222500 ImpellerImpeller
-
14420811605 Waterpump housingWaterpump housing
-
15420950500 GasketGasket
-
16420440602 Screw M6 x 65Screw M6 x 65
-
17420440232 Screw M6 x 25Screw M6 x 25
-
18420296460 Alternator (40 amperes)Alternator (40 amperes)
-
19420850430 O-ringO-ring
-
20420941651 Screw M8 x 119Screw M8 x 119
-
21420256773 Oil pressure switchOil pressure switch
-
22420230150 Gasket ringGasket ring
-
23420940874 Banjo bolt M10 x 19Banjo bolt M10 x 19
-
24420853173 ClampClamp
-
25420922180 Molded hoseMolded hose
-
26420853163 ClampClamp
-
27420922745 Molded hoseMolded hose
-
28420922740 Molded hoseMolded hose
-
29420922280 Hose joining nippleHose joining nipple
-
30420822090 Molded hoseMolded hose
-
31420822092 Molded hoseMolded hose
-
32420853303 ClampClamp
-
33420660881 Molded hose assyMolded hose assy
-
34420853303 ClampClamp
-
35293550014 Grease, super lubeGrease, super lube
-
36293600054 Oil, 0 W 40, 12x1 literOil, 0 W 40, 12x1 liter
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
