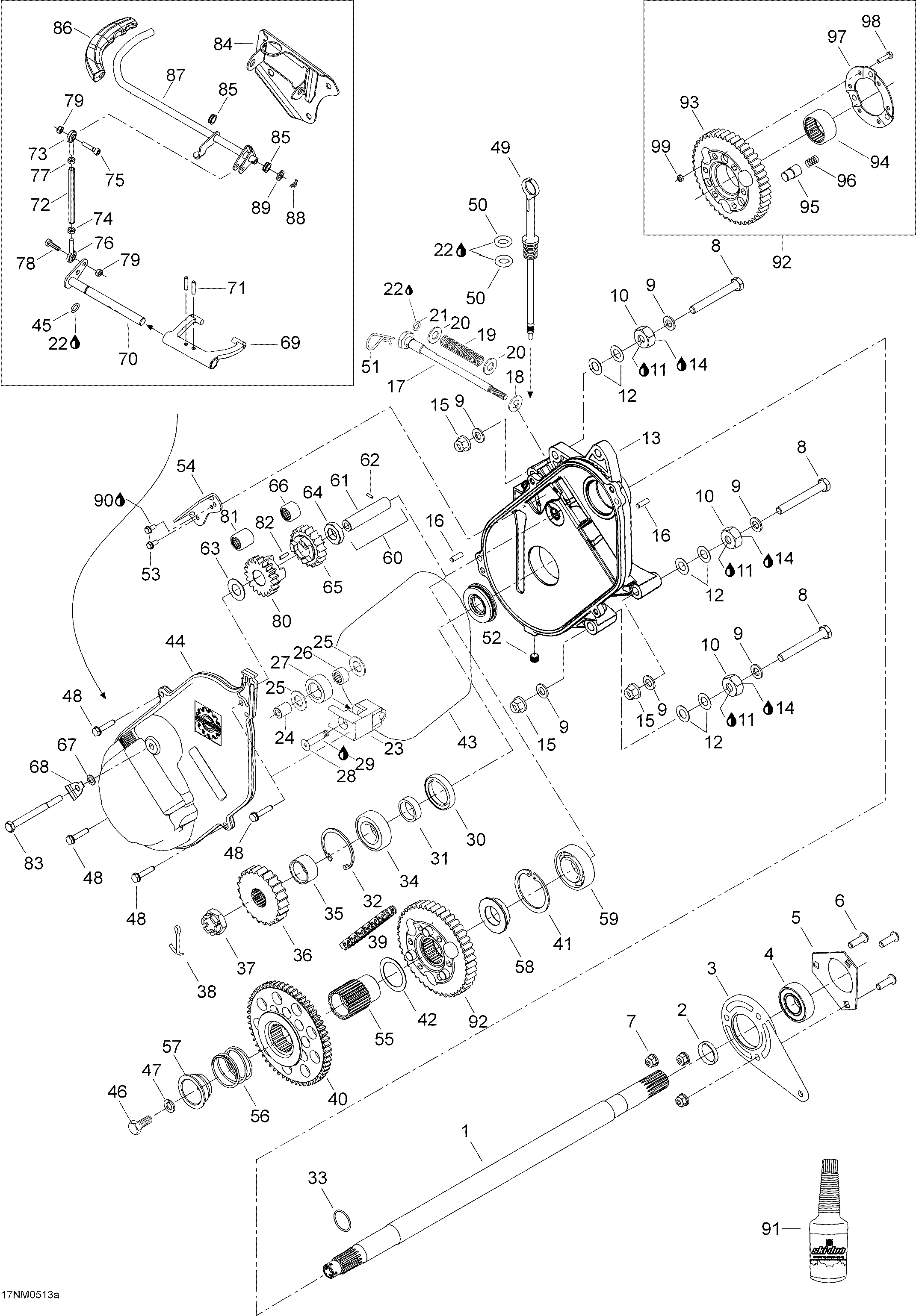

05- Drive System 1 для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1501026300 Counter shaftCounter shaft
-
2504149100 SleeveSleeve
-
3080044200 Casting SpacerCasting Spacer
-
4504152026 Ball bearingBall bearing
-
5501025000 FlangeFlange
-
640344 Socket head screw M8 x 25Socket head screw M8 x 25
-
733201 Elastic flanged nut M8Elastic flanged nut M8
-
840190 Hex, screw M10 x 80Hex, screw M10 x 80
-
920005 Washer A10,5Washer A10,5
-
10504083800 SpacerSpacer
-
11293800060 Loctite 243, 10mlLoctite 243, 10ml
-
12504073700 ShimShim
-
13504152062 ChaincaseChaincase
-
14293800070 Loctite 767, 8ozLoctite 767, 8oz
-
1533012 Elastic stop nut M10Elastic stop nut M10
-
16732620001 Cylinder pinCylinder pin
-
17504151946 Adjusting screwAdjusting screw
-
18503189148 Washer, hardenedWasher, hardened
-
19504151945 SpringSpring
-
20503125900 Washer, hardenedWasher, hardened
-
21504151954 O-ringO-ring
-
22413711500 Synt. greaseSynt. grease
-
23504151940 Chain tensionerChain tensioner
-
24504080200 CushionCushion
-
25504080300 WasherWasher
-
26405403000 Needle bearingNeedle bearing
-
27414531300 RollerRoller
-
28732601144 ScrewScrew
-
29293800005 Loctite 271, 10mlLoctite 271, 10ml
-
30415049300 SealSeal
-
31507031500 CushionCushion
-
32371901700 CirclipCirclip
-
33414876700 O-ringO-ring
-
34504152006 Ball bearingBall bearing
-
35504147200 ShimShim
-
36504085400 Spriocket Z23Spriocket Z23
-
37250000012 Nut M20Nut M20
-
3841003 PinPin
-
39504151857 Chain 13/74Chain 13/74
-
40504096800 Sprocket Z56Sprocket Z56
-
41415064300 CirclipCirclip
-
42504094300 WasherWasher
-
43415046400 O-ringO-ring
-
44504151845 CoverCover
-
45414773200 O-ringO-ring
-
4640196 Hex. screw M10 x 50Hex. screw M10 x 50
-
4720068 Lock washer D10Lock washer D10
-
4840340 Socket head screw M6 x 30Socket head screw M6 x 30
-
49504151750 Filler cap ass'yFiller cap ass'y
-
50414969400 O-ringO-ring
-
51414575600 PinPin
-
52504151921 Plug 1/8-27Plug 1/8-27
-
53210251180 Self tapping screw M5 x 11Self tapping screw M5 x 11
-
54504152036 Slider, chainSlider, chain
-
55504097700 CouplingCoupling
-
56504096600 SpringSpring
-
57504151964 CapCap
-
58504076300 Ring-retainingRing-retaining
-
59504152005 Ball bearingBall bearing
-
60504151972 Reverse shaft ass'y. Includes 61 to 62Reverse shaft ass'y. Includes 61 to 62
-
61504083100 Reverse shaftReverse shaft
-
62250400010 PinPin
-
63504077300 SpacerSpacer
-
64504078700 SpacerSpacer
-
65581096900 Sprocket ass'y. Includes 65 to 66Sprocket ass'y. Includes 65 to 66
-
66414773100 Needle bearingNeedle bearing
-
67504082900 WasherWasher
-
68504087700 Tab lockTab lock
-
69504075800 ForkFork
-
70504151806 Fork axleFork axle
-
71414772500 PinPin
-
72504151814 Tie-rodTie-rod
-
73414773400 R.H. Ball jointR.H. Ball joint
-
7433015 L.H. Nut M6L.H. Nut M6
-
7540052 Socket head screw M6 x 20Socket head screw M6 x 20
-
76414773500 L.H. Ball jointL.H. Ball joint
-
7733002 Nut M6Nut M6
-
7840030 Hex. screw M6 x 20Hex. screw M6 x 20
-
7933010 Elastic stop nut M6Elastic stop nut M6
-
80581122200 Sprocket ass'y. Includes 80 to 81Sprocket ass'y. Includes 80 to 81
-
81414805000 Needle bearingNeedle bearing
-
82570048600 PinPin
-
8340090 Hex. screw M8 x 90Hex. screw M8 x 90
-
84504151823 Support plateSupport plate
-
85504151818 CushionCushion
-
86570064600 GripGrip
-
87504151810 HandleHandle
-
88371800800 PinPin
-
89503189264 WasherWasher
-
90293800005 Loctite 271, 10mlLoctite 271, 10ml
-
91413803300 Synthetic chaincase oil (12 x 355ml)Synthetic chaincase oil (12 x 355ml)
-
92581096800 Sprocket ass'y Z44. Includes 92 to 99Sprocket ass'y Z44. Includes 92 to 99
-
93504084400 Sprocket Z44Sprocket Z44
-
94414772600 Needle bearingNeedle bearing
-
95504076800 Drive pinDrive pin
-
96414772700 SpringSpring
-
97504076100 Ring retainerRing retainer
-
98207152044 ScrewScrew
-
99233551416 Lock nutLock nut
