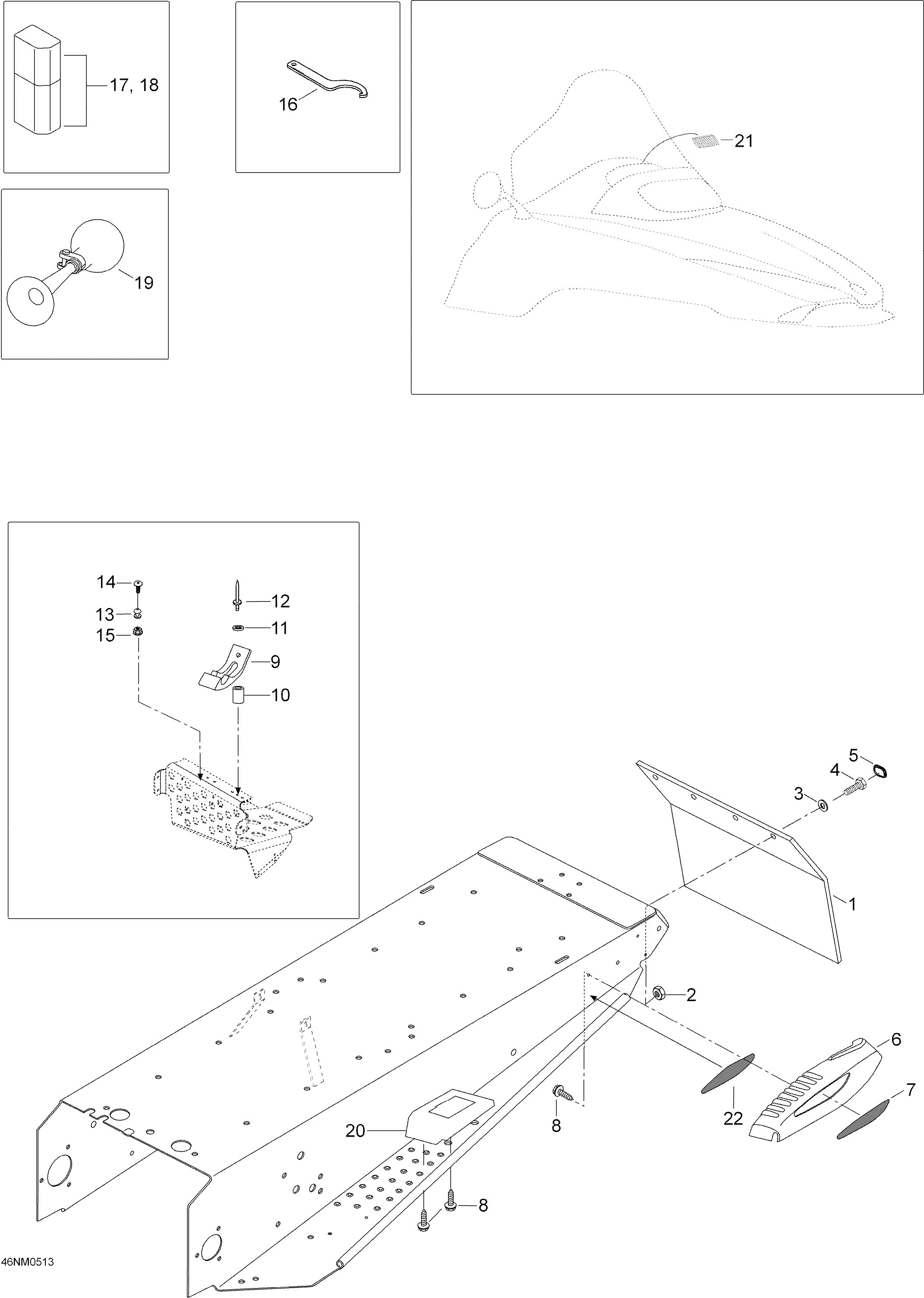

09- Utilities для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
15246859 Snow quardSnow quard
-
233200 Elastic flanged nut M6Elastic flanged nut M6
-
320009 Washer A6,4Washer A6,4
-
440078 Screw M6 x 22Screw M6 x 22
-
5415073300 CapCap
-
6605251970 R.H. MoldingR.H. Molding
-
6605251971 L.H. MoldingL.H. Molding
-
7516000241 R.H. Rear reflectorR.H. Rear reflector
-
7516000242 L.H. Rear reflectorL.H. Rear reflector
-
840870 ScrewScrew
-
9531955 LatchLatch
-
10543417 SleeveSleeve
-
11543392 WasherWasher
-
1236072 RivetRivet
-
13605449087 Counter rollCounter roll
-
1440168 Screw M4 x 25Screw M4 x 25
-
1533008 Elastic stop nut M4Elastic stop nut M4
-
16529032900 Wrench adjustWrench adjust
-
17605450112 Tool setTool set
-
18572036310 Tool boxTool box
-
1921003 HornHorn
-
20572088700 R.H. Foot RestR.H. Foot Rest
-
20572088800 L.H. Foot RestL.H. Foot Rest
-
2121060 Reflector, brightReflector, bright
-
2221135 Reflector, yellowReflector, yellow
