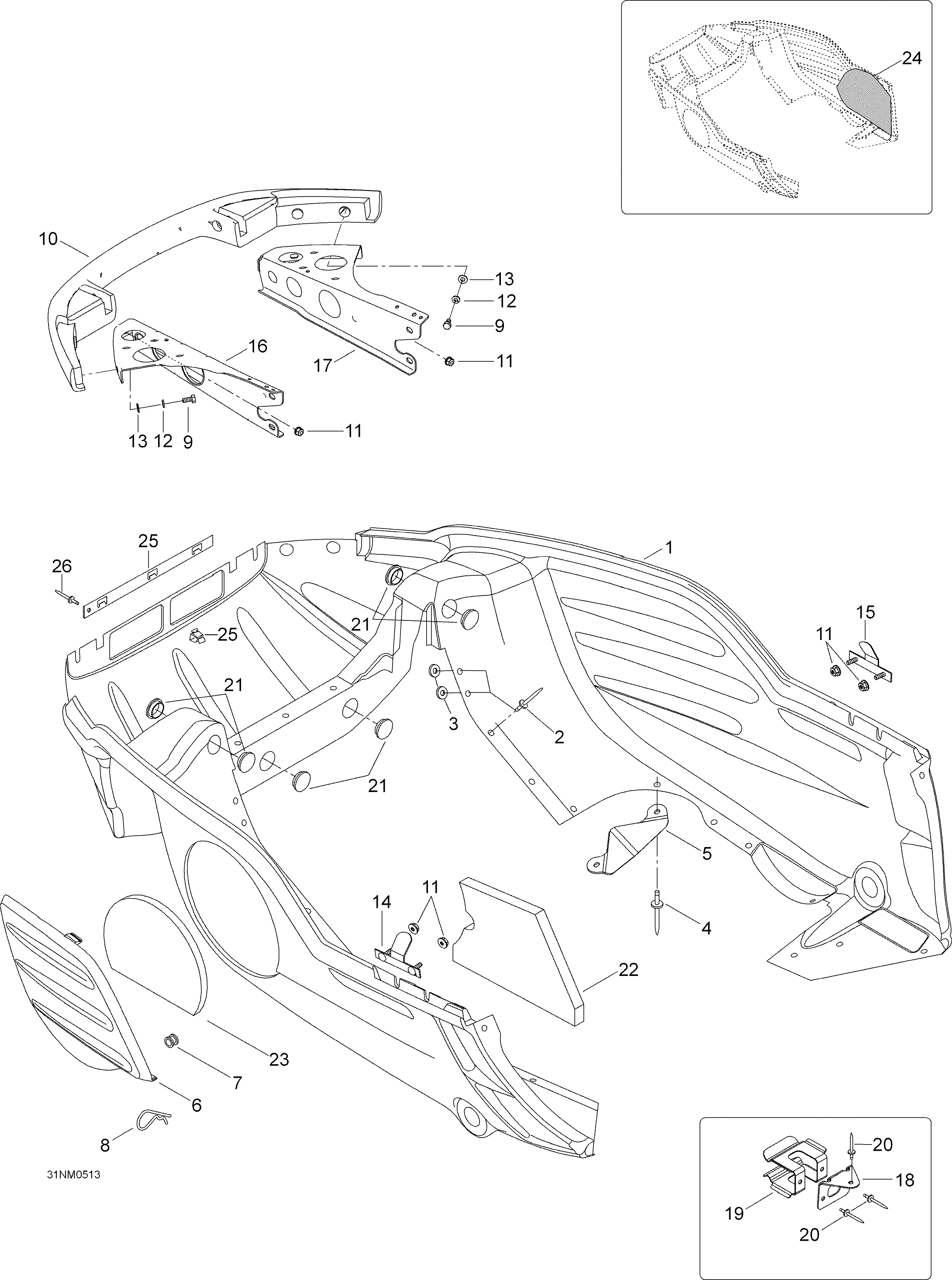

09- Bottom Pan для BRP Lynx Touring V-1000 - 2005
![](/wa-data/public/shop/sheme/bombardier/lynx/daaf9269-90f7-4ffb-85fc-66efe4d05424.png)
-
№АртикулНазвание
-
15148035 Bottom pan, BlackBottom pan, Black
-
236037 RivetRivet
-
320008 Washer A5,3Washer A5,3
-
436087 RivetRivet
-
5502006563 Deflector snowDeflector snow
-
6502006506 Bottom pan doorBottom pan door
-
7414036300 GrommetGrommet
-
8414575600 PinPin
-
940029 Hex. screw M6 x 16Hex. screw M6 x 16
-
10502006719 Bumper, blackBumper, black
-
1133200 Elastic flange nut M6Elastic flange nut M6
-
1220052 Lock washer A6Lock washer A6
-
1320009 Washer A6,4Washer A6,4
-
14502006645 L.H. BracketL.H. Bracket
-
15502006685 R.H. BracketR.H. Bracket
-
16502006597 L.H. SupportL.H. Support
-
17502006596 R.H. SupportR.H. Support
-
18502006599 Belt supportBelt support
-
19517281905 Belt supportBelt support
-
2036489 RivetRivet
-
21414916600 Nylon capNylon cap
-
22605250270 Bottom foamBottom foam
-
23605350269 Bottom pan door foamBottom pan door foam
-
24605249386 heat protectorheat protector
-
25502006647 Support plateSupport plate
-
2636005 RivetRivet
