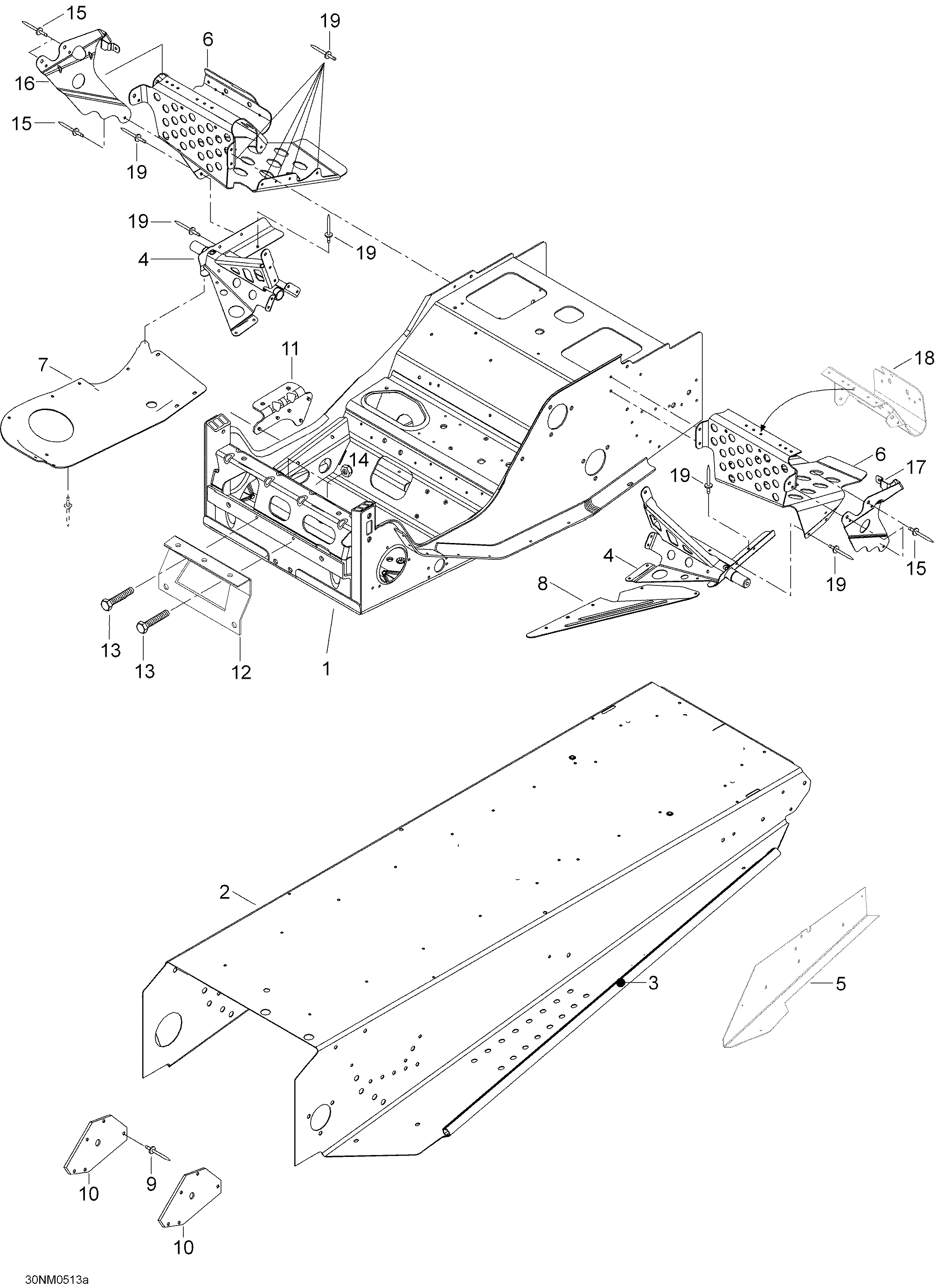

09- Frame для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1605151322 Frame ass'y. Includes 1 to 19Frame ass'y. Includes 1 to 19
-
45246775 R.H. supportR.H. support
-
45246776 L.H. supportL.H. support
-
5605351194 L.H. SupportL.H. Support
-
5605351195 R.H.SupportR.H.Support
-
6605250239 R.H. front footrestR.H. front footrest
-
6605250240 L.H. front footrestL.H. front footrest
-
7518322636 Frame ass'yFrame ass'y
-
8605349267 L.H. reinf. plateL.H. reinf. plate
-
936489 RivetRivet
-
105348321 Support, front armSupport, front arm
-
11518322635 BracketBracket
-
125346111 Support plateSupport plate
-
1340029 Hex. screw M6 x 16Hex. screw M6 x 16
-
1433200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
1536087 RivetRivet
-
165146912 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
175146913 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
185146917 R.H. toe holdR.H. toe hold
-
185146918 L.H. toe holdL.H. toe hold
-
1936108 RivetRivet
