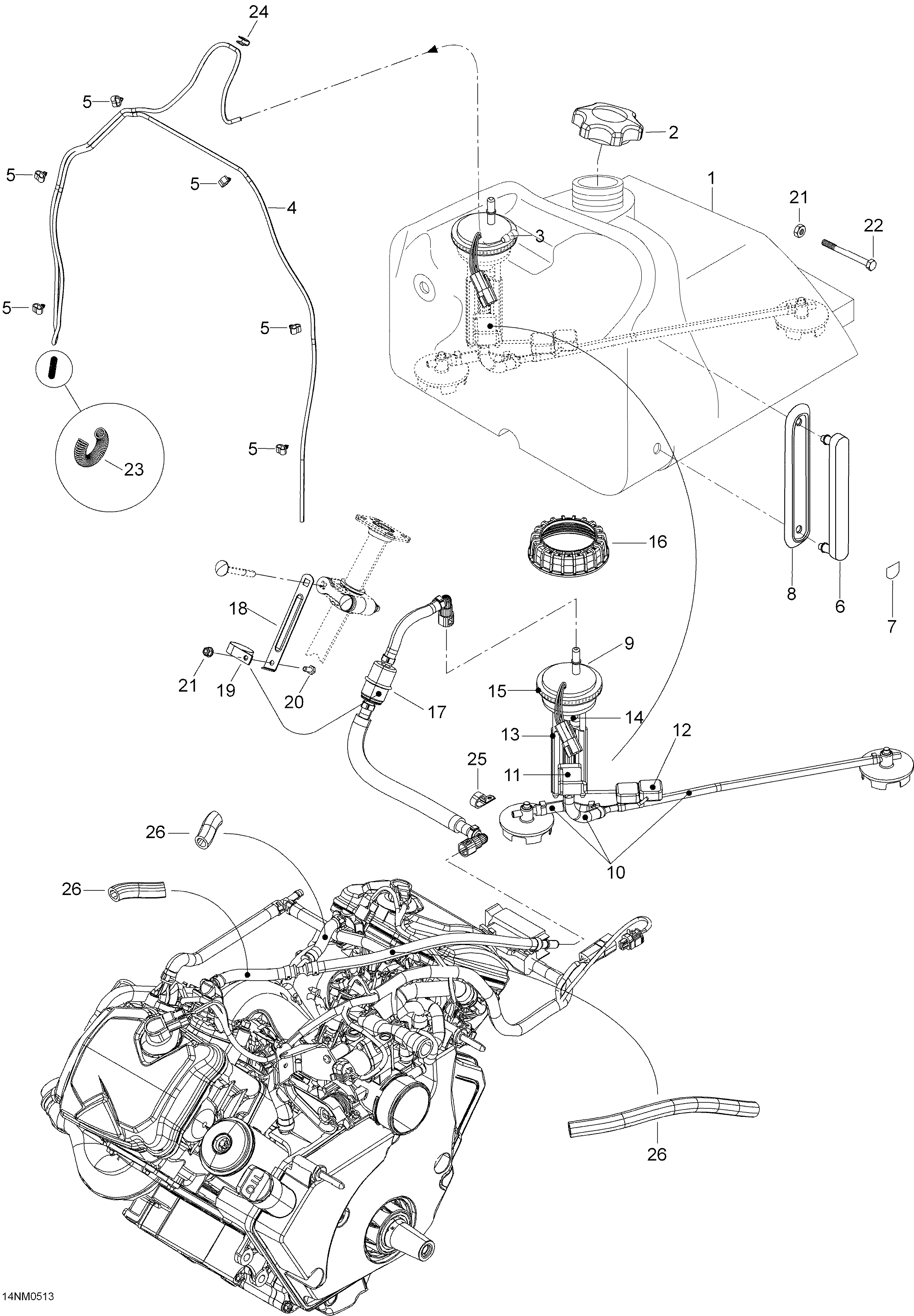

02- Fuel System для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1605149201 Fuel tankFuel tank
-
2580259400 Cap assemblyCap assembly
-
319051 FittingFitting
-
439035 Airhose 5/3Airhose 5/3
-
5513032923 Tube clampTube clamp
-
6572015900 Fuel gaugeFuel gauge
-
7549200 Fuel labelFuel label
-
8570018000 Housing gaugeHousing gauge
-
9513033101 Fuel pump assy. Includes 9 to 15Fuel pump assy. Includes 9 to 15
-
10861302300 Fuel hose kitFuel hose kit
-
11861301800 Resistor card kitResistor card kit
-
12861301900 Float lever kitFloat lever kit
-
13861302000 Pump kitPump kit
-
14861302100 Regulator kitRegulator kit
-
15513033039 SealSeal
-
16513033040 CoverCover
-
17513033078 Fuel filterFuel filter
-
18513033057 BracketBracket
-
19513033047 ClampClamp
-
2040029 Screw M6 x 16Screw M6 x 16
-
2133200 Elastig flanged nut M6Elastig flanged nut M6
-
2240193 Hex. screw M6 x 50Hex. screw M6 x 50
-
2325003 SpringSpring
-
24414479100 ClampClamp
-
2527013 ClampClamp
-
2627127 TubingTubing
