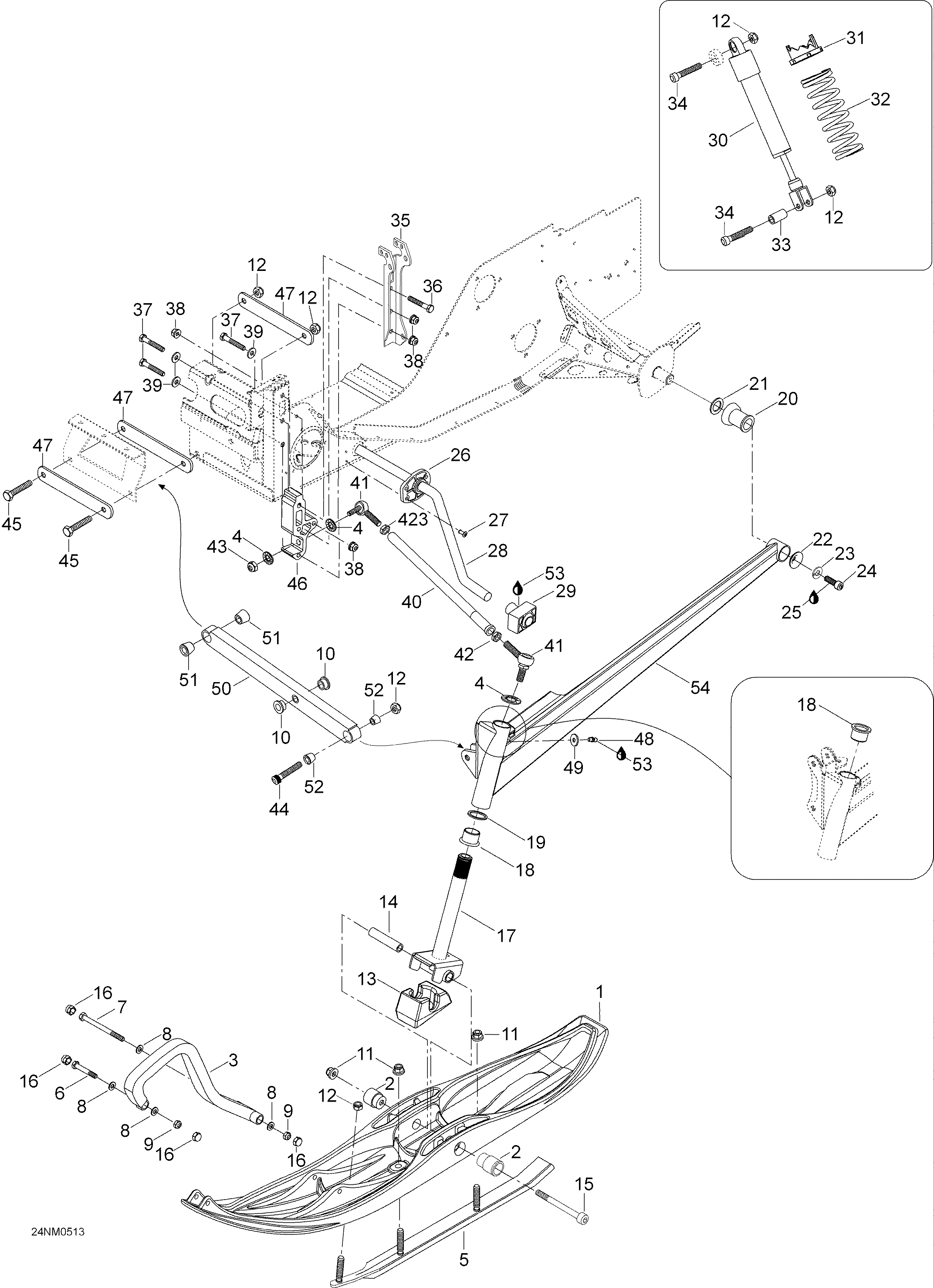

07- Front Suspension And Ski для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1605148440 ADJ-ski. Includes 1 to 2ADJ-ski. Includes 1 to 2
-
2605348392 SleeveSleeve
-
3505070963 HandleHandle
-
420074 Lock washer M12Lock washer M12
-
5619400006 Runner carbide kitRunner carbide kit
-
640009 Hex. screw M8 x 50Hex. screw M8 x 50
-
740264 Hex. screw M8 x 90Hex. screw M8 x 90
-
820004 Washer A8,4Washer A8,4
-
933011 Elastic stop nut M8Elastic stop nut M8
-
1031029 CushionCushion
-
1133074 CushionCushion
-
1233012 Elastic stop nut M10Elastic stop nut M10
-
13605348458 Rubber damperRubber damper
-
14506133300 SleeveSleeve
-
1540225 Socket head screw M10 x 140Socket head screw M10 x 140
-
1628056 CapCap
-
17605248927 Ski legSki leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20570062200 Rubber damperRubber damper
-
21503146700 WasherWasher
-
22506079600 CupCup
-
2320014 Lock washer A8Lock washer A8
-
2440289 Socket head screw M8 x 25Socket head screw M8 x 25
-
25293800060 Loctite 243, 10mlLoctite 243, 10ml
-
26505070191 SleeveSleeve
-
2736087 RivetRivet
-
285246797 StabilizatorStabilizator
-
29505070117 Block-joint ballBlock-joint ball
-
3023147 Shock. Includes 30-32Shock. Includes 30-32
-
31503183700 Adjusting camAdjusting cam
-
335441433 SleeveSleeve
-
3440837 Socket head screw M10 x 55Socket head screw M10 x 55
-
355247702 Shock bracketShock bracket
-
3640010 Hex. screw M8 x 55Hex. screw M8 x 55
-
3740264 Hex. screw M8 x 90Hex. screw M8 x 90
-
3833201 Elastic flanged nut M8Elastic flanged nut M8
-
3920104 Washer, hardened M8Washer, hardened M8
-
405346122 Upper armUpper arm
-
4131092 Ball jointBall joint
-
4233048 Nut M12Nut M12
-
4333087 Elastic stop nut M12Elastic stop nut M12
-
4440858 Socket head screw M10 x 50Socket head screw M10 x 50
-
4540814 Hex. screw M10 x 110Hex. screw M10 x 110
-
465447559 L.H. Upper bracketL.H. Upper bracket
-
465447566 R.H. Upper bracketR.H. Upper bracket
-
475346112 Support plateSupport plate
-
4834011 Grease fittingGrease fitting
-
4920007 Washer A6,4Washer A6,4
-
50605249207 Lower arm ass'y (Full Moon). Includes 50 to 52Lower arm ass'y (Full Moon). Includes 50 to 52
-
515447769 SleeveSleeve
-
525447770 SleeveSleeve
-
53413711500 Synthetic greaseSynthetic grease
-
54605248970 R.H. Swing arm (Full Moon)R.H. Swing arm (Full Moon)
-
54605248969 L.H. Swing arm (Full Moon)L.H. Swing arm (Full Moon)
