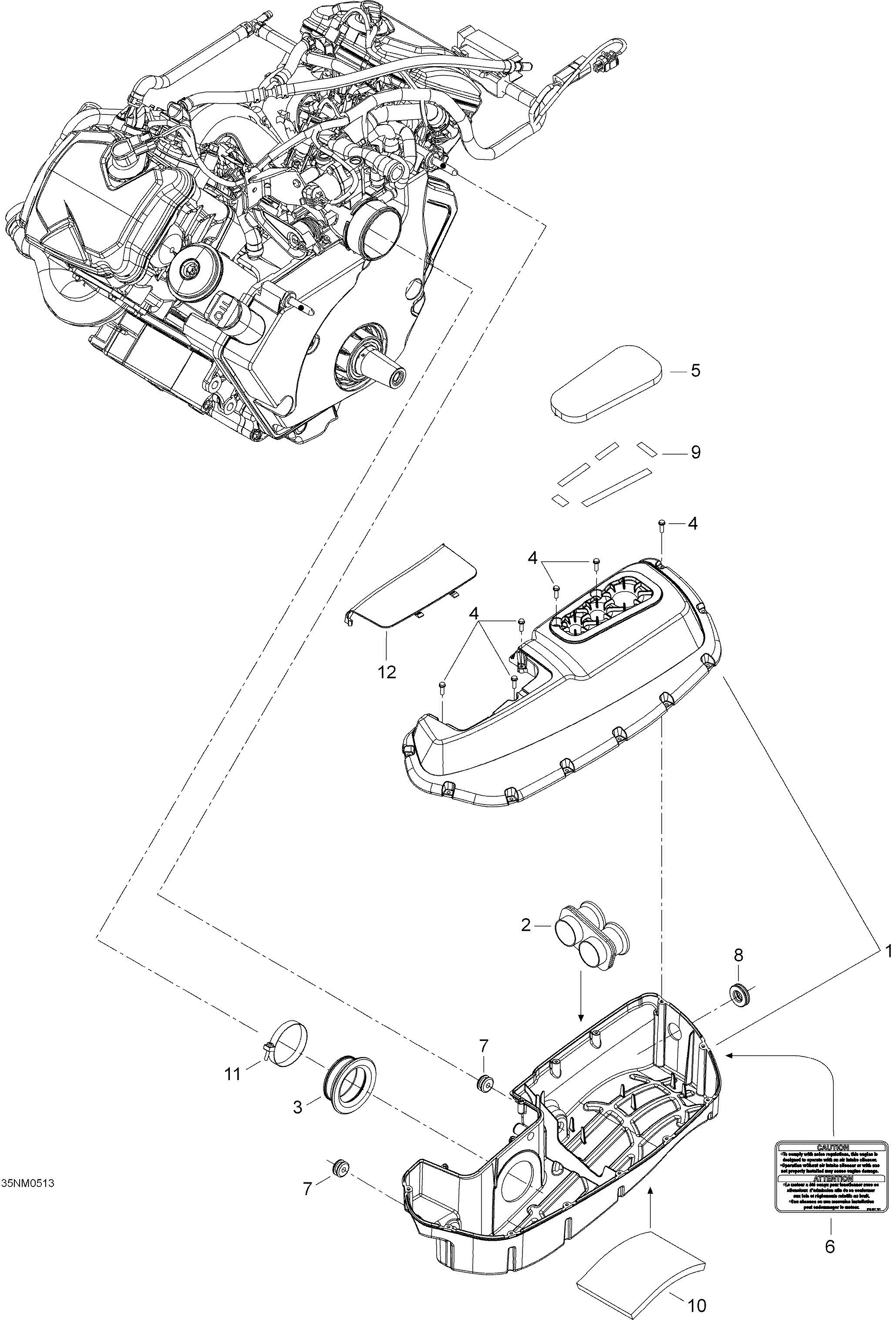

02- Air Silencer для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1508000315 Air intake ass'y. Includes 1 to 9Air intake ass'y. Includes 1 to 9
-
2273000107 Inlet tubeInlet tube
-
3508000254 Intake adaptorIntake adaptor
-
4243141680 Screw M4.8 x 16Screw M4.8 x 16
-
5508000251 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7508000331 GrommetGrommet
-
8570065500 GrommetGrommet
-
9415110900 TapeTape
-
10508000250 Air filterAir filter
-
11508000382 ClampClamp
-
12508000253 Cover, air intakeCover, air intake
