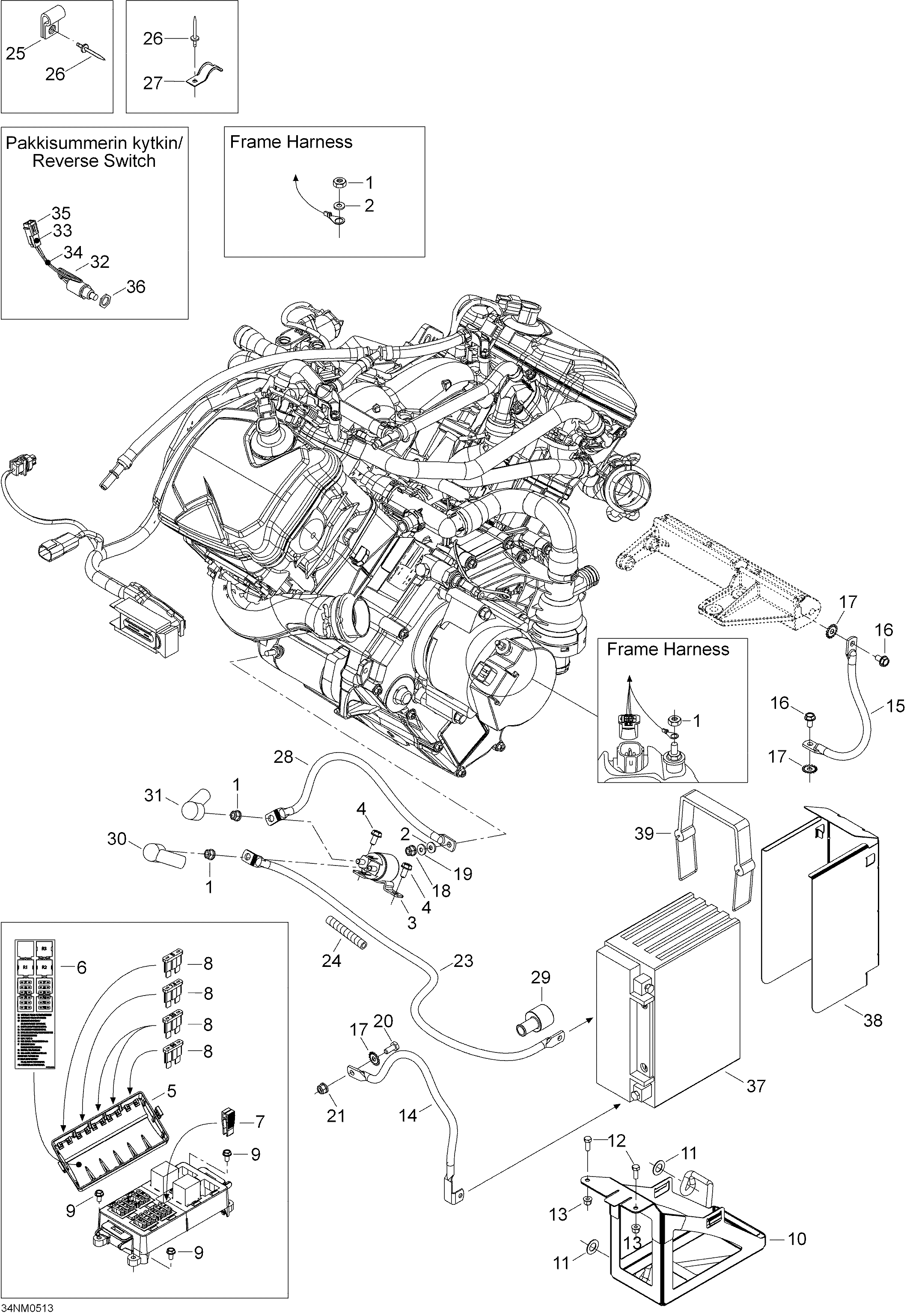

10- Battery And Starter для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
133010 Elastic stop nut M6Elastic stop nut M6
-
220003 Washer A6,4Washer A6,4
-
3515176011 Relay-starterRelay-starter
-
440327 Hex. screw M6 x 12Hex. screw M6 x 12
-
5515176066 CoverCover
-
6516001613 Decal, fuseDecal, fuse
-
7515175811 ToolTool
-
8278000344 Fuse 5 AFuse 5 A
-
8278000704 Fuse 7.5 AFuse 7.5 A
-
8278001143 Fuse 20 AFuse 20 A
-
8410917200 Fuse 30 AFuse 30 A
-
9210251680 Screw M5 x 16Screw M5 x 16
-
10515175954 Battery supportBattery support
-
1120005 Washer A10,5Washer A10,5
-
1240247 Screw M5 x 16Screw M5 x 16
-
1333062 Elastic flanged nut M5Elastic flanged nut M5
-
14515175962 Ground wireGround wire
-
15515175483 Ground wireGround wire
-
1640327 Hex. screw M6 x 12Hex. screw M6 x 12
-
1720017 Serrated lock washerSerrated lock washer
-
1833002 Nut M6Nut M6
-
1920052 Spring washer A6Spring washer A6
-
2040029 Hex. screw M6 x 16Hex. screw M6 x 16
-
2233200 Elastic flanged nut M6Elastic flanged nut M6
-
23515175794 Battery wireBattery wire
-
24390004 TubingTubing
-
2527092 ClampClamp
-
2636489 RivetRivet
-
2727025 ClampClamp
-
28515175793 Battery wireBattery wire
-
29515175919 Cap protectionCap protection
-
30570151000 Cap protectionCap protection
-
31278001771 Cap protectionCap protection
-
32515175967 Switch ass'y. Includes 32 to 35Switch ass'y. Includes 32 to 35
-
33515175232 Male terminalMale terminal
-
34293740005 Vinyl tapeVinyl tape
-
35515175654 Male terminal housingMale terminal housing
-
36250100012 Nut M12Nut M12
-
37515175895 BatteryBattery
-
38515175616 ProtectorProtector
-
39515175955 Battery strapBattery strap
