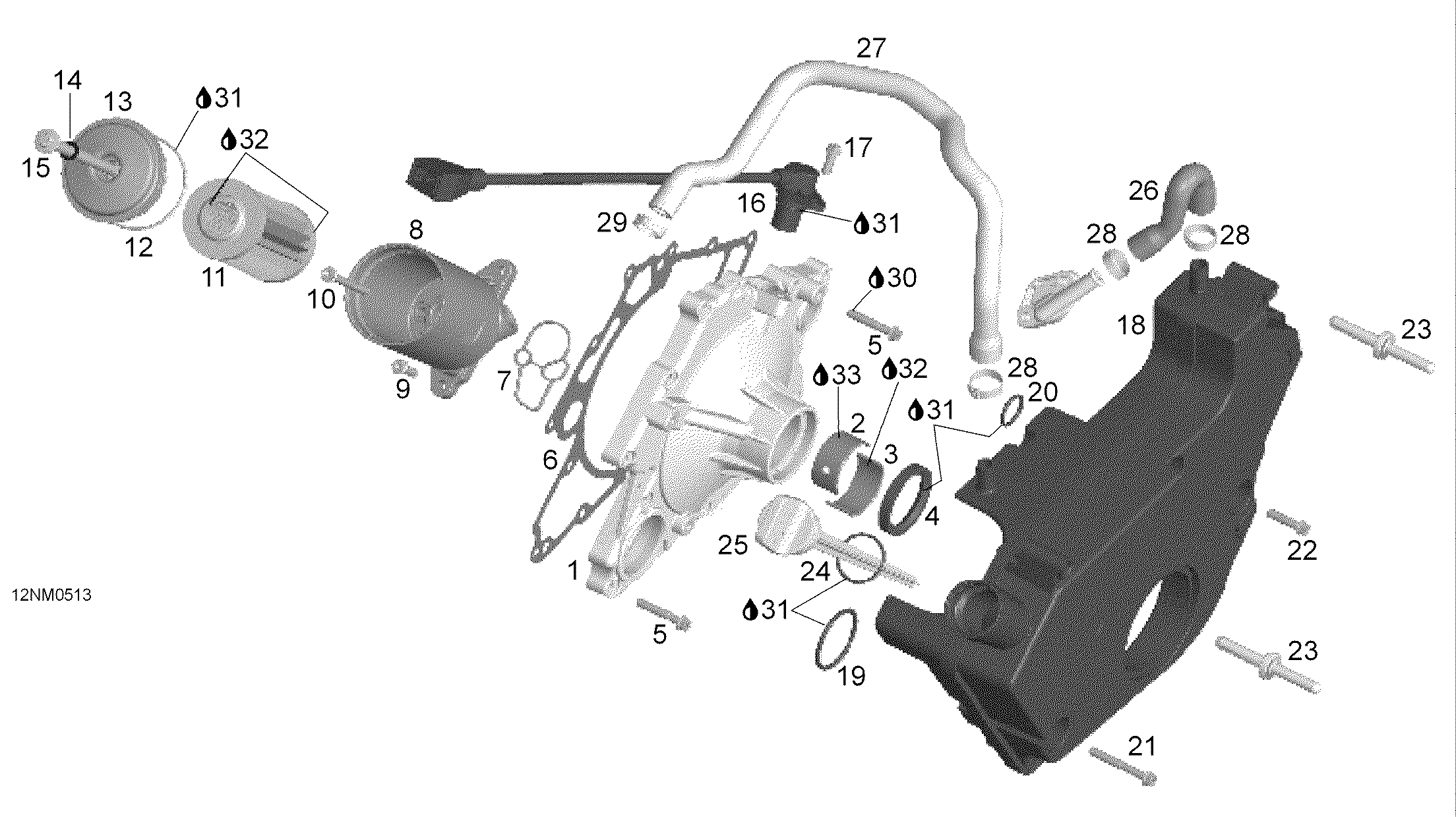

02- Oil System для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1420811671 PTO cover ass’y. Includes 1 to 3PTO cover ass’y. Includes 1 to 3
-
2420933540 Plain bearingPlain bearing
-
3420933545 Plain bearingPlain bearing
-
4420931155 Oil sealOil seal
-
5420440272 Screw M6 x 35Screw M6 x 35
-
6420950610 GasketGasket
-
7420950990 GasketGasket
-
8420811903 Oil filter housing assyOil filter housing assy
-
9420440232 Screw M6 x 25Screw M6 x 25
-
10420440602 Screw M6 x 65Screw M6 x 65
-
11420956741 Oil filterOil filter
-
12420230920 O-ringO-ring
-
13420610326 Oil filter coverOil filter cover
-
14420950860 O-ringO-ring
-
15420641105 Screw M8 x 140.5Screw M8 x 140.5
-
16420966570 Crank position triggerCrank position trigger
-
17420440162 Screw M6 x 16Screw M6 x 16
-
18420956700 Oil tank assy. Includes 18 to 20Oil tank assy. Includes 18 to 20
-
19420631400 O-ringO-ring
-
20420631410 O-ringO-ring
-
21420440322 Screw M6 x 45Screw M6 x 45
-
22420440232 Screw M6 x 25Screw M6 x 25
-
23420660860 Fixation boltFixation bolt
-
24420430590 O-ringO-ring
-
25420956890 Oil dipstickOil dipstick
-
26420960740 Molded hose assyMolded hose assy
-
27420960801 Air vent lineAir vent line
-
28420853143 ClampClamp
-
29420853313 ClampClamp
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293550014 Grease, super lubeGrease, super lube
-
32293600054 Engine oil 4 strokes, 0W40, 12 x 1 literEngine oil 4 strokes, 0W40, 12 x 1 liter
-
33420899271 Petamo grease GHY133N, 400 gPetamo grease GHY133N, 400 g
