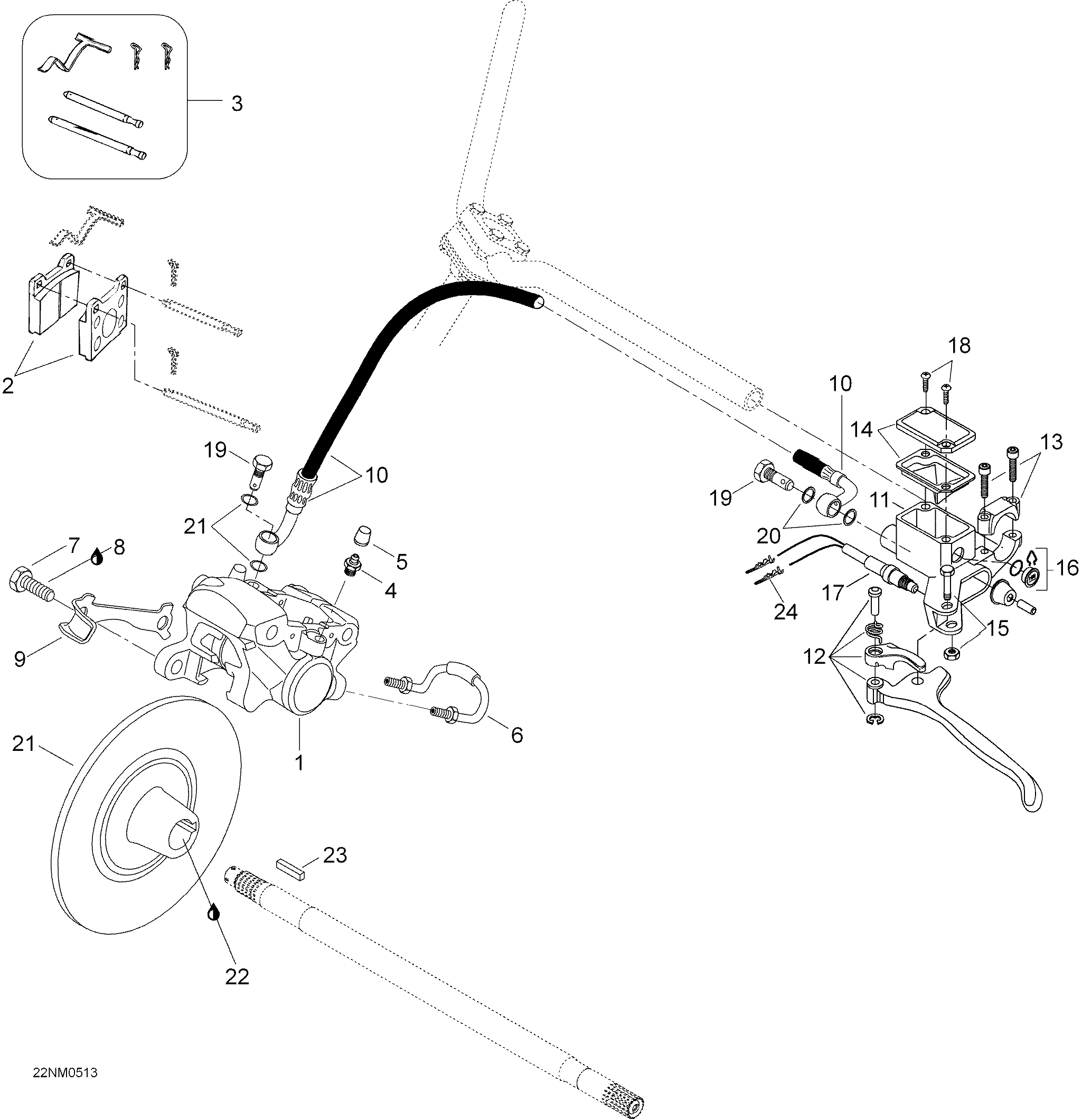

06- Brake для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1507032409 Caliber ass'y. Includes 1 to 6Caliber ass'y. Includes 1 to 6
-
2415084600 Brake lining kitBrake lining kit
-
3415128865 Kit (pins,retainers,spring)Kit (pins,retainers,spring)
-
4414989800 Screw-bleederScrew-bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
740049 Hex. screw M10 x 35Hex. screw M10 x 35
-
8293800060 Loctite 243, 10mlLoctite 243, 10ml
-
9507032316 Locking tabLocking tab
-
10507032237 HoseHose
-
11507032362 Master cylinder ass'y. Includes 11 to 18Master cylinder ass'y. Includes 11 to 18
-
12507032268 Short brake leverShort brake lever
-
13415029800 Clamp assyClamp assy
-
14415029900 CoverCover
-
15415030000 Pin assyPin assy
-
16414990600 WindowWindow
-
17507032366 Microswitch assyMicroswitch assy
-
18216141260 ScrewScrew
-
19414920500 Banjo boltBanjo bolt
-
20414920600 WasherWasher
-
21507031300 Brake diskBrake disk
-
22293800070 Loctite 767, 8ozLoctite 767, 8oz
-
23507021300 KeyKey
-
2442603 Male terminalMale terminal
