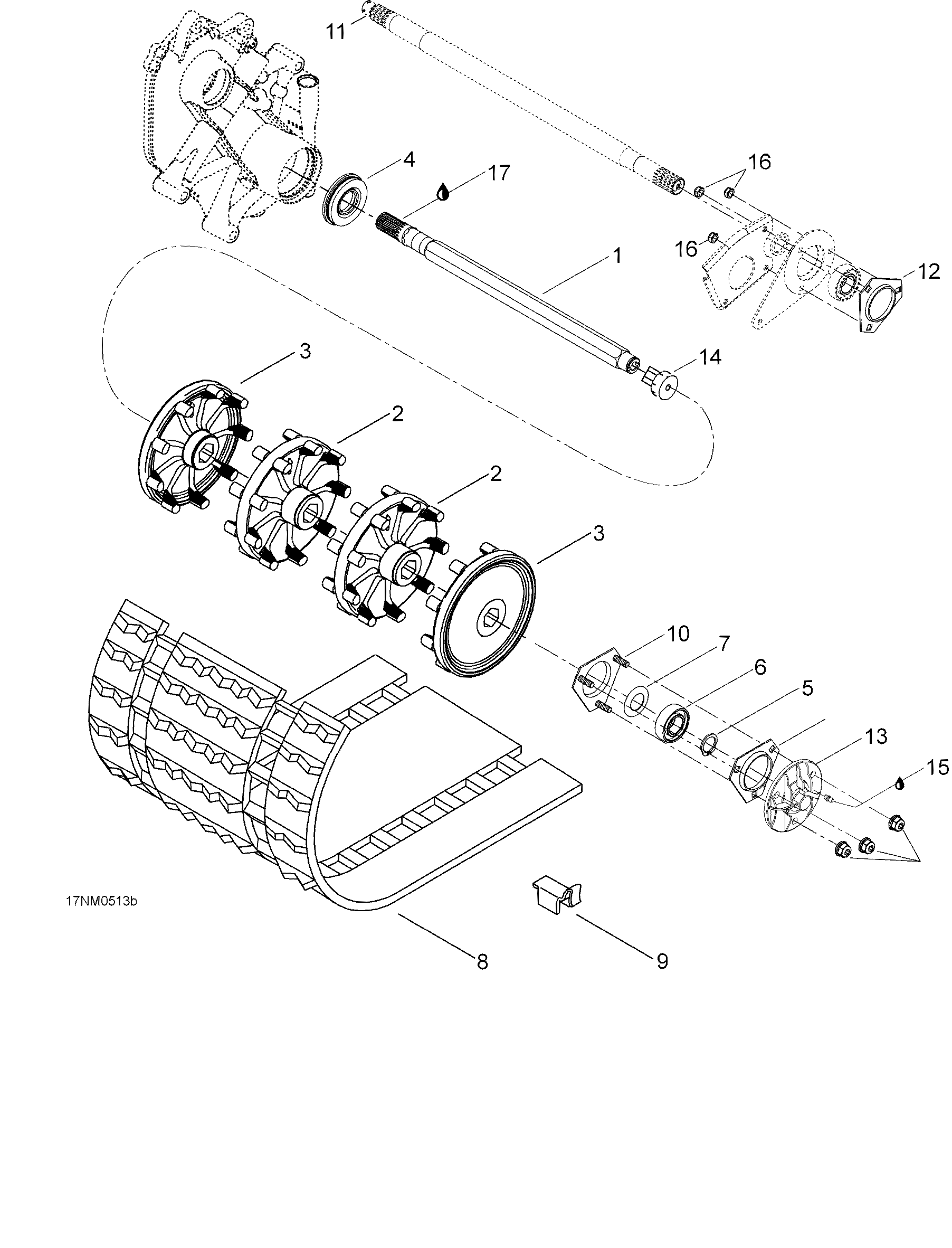

05- Drive System 2 для BRP Lynx Touring V-1000 - 2005
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504151781 Sprocket 9 teethSprocket 9 teeth
-
3504151782 Half sprocket 9 teethHalf sprocket 9 teeth
-
4504151918 Oil sealOil seal
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 ProtectorProtector
-
8504152039 Track ass'y. Includes 8 to 9Track ass'y. Includes 8 to 9
-
9500003400 Guide cleatGuide cleat
-
10504151860 Bearing housingBearing housing
-
11414784800 KorkKork
-
12501025000 FlangeFlange
-
13504152173 FlangeFlange
-
14504152040 SenderSender
-
15293550033 Synthetic greaseSynthetic grease
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
17293800023 Loctite antiseize, 8ozLoctite antiseize, 8oz
