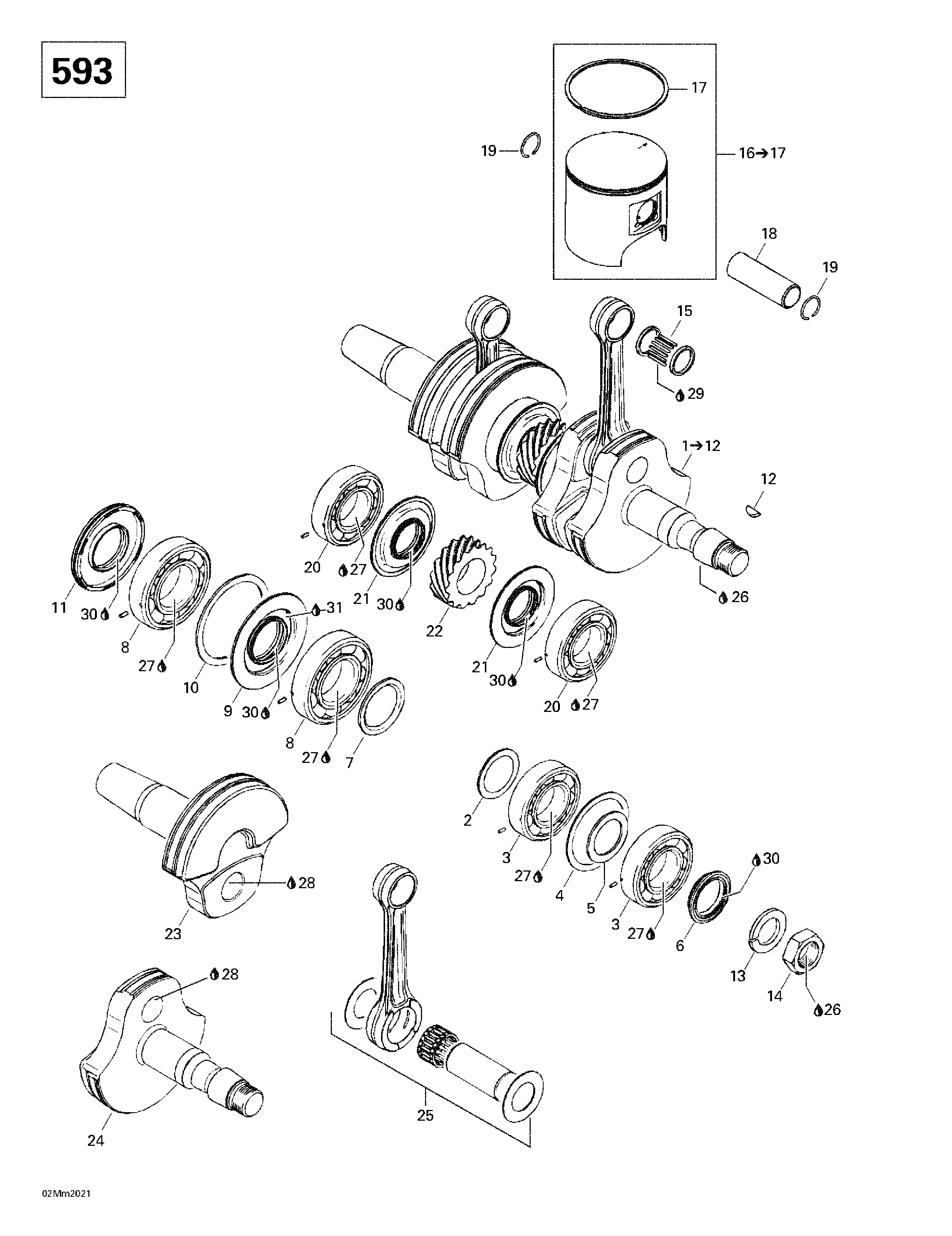

01- Crankshaft And Pistons для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1420888252 Crankshaft Ass'y. Includes 1 - 12.Crankshaft Ass'y. Includes 1 - 12.
-
2420827445 Distance RingDistance Ring
-
3420832590 Ball Bearing 6206Ball Bearing 6206
-
4420827050 Retaining DiskRetaining Disk
-
5420427684 Adjustment WasherAdjustment Washer
-
6420931790 Oil SealOil Seal
-
7420827760 Distance RingDistance Ring
-
8420832575 Ball Bearing 6207Ball Bearing 6207
-
9420931455 Oil SealOil Seal
-
10420927710 Retaining DiskRetaining Disk
-
11420831950 Oil SealOil Seal
-
12420246015 Woodfuff KeyWoodfuff Key
-
13420945759 Lock Washer 22 mmLock Washer 22 mm
-
14420842230 Hex. Nut M22Hex. Nut M22
-
15420832425 Needle BearingNeedle Bearing
-
16420886687 Piston Ass'y (1 Ring 75.88 mm). Includes 16 - 17.Piston Ass'y (1 Ring 75.88 mm). Includes 16 - 17.
-
420886688 Oversize Piston Ass'y (1 Ring 76.16 mm)Oversize Piston Ass'y (1 Ring 76.16 mm)
-
17420815150 Semi-Trapez Ring 76 mmSemi-Trapez Ring 76 mm
-
420815151 Oversize Semi-Trapez Ring 76.25 mmOversize Semi-Trapez Ring 76.25 mm
-
18420916410 Gudgeon PinGudgeon Pin
-
19420845102 Piston CirclipPiston Circlip
-
20420832590 Ball Bearing 6206Ball Bearing 6206
-
21420931940 Oil SealOil Seal
-
22420834350 Central Gear 15 TeethCentral Gear 15 Teeth
-
23420818664 Crankshaft (PTO side)Crankshaft (PTO side)
-
24420818693 Crankshaft (MAG side)Crankshaft (MAG side)
-
25420888253 Rod Repair Kit (MAG side)Rod Repair Kit (MAG side)
-
420888254 Rod Repair Kit (PTO side)Rod Repair Kit (PTO side)
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
28413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
29413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
30420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
31293550021 Isoflex Grease, 45 gIsoflex Grease, 45 g
