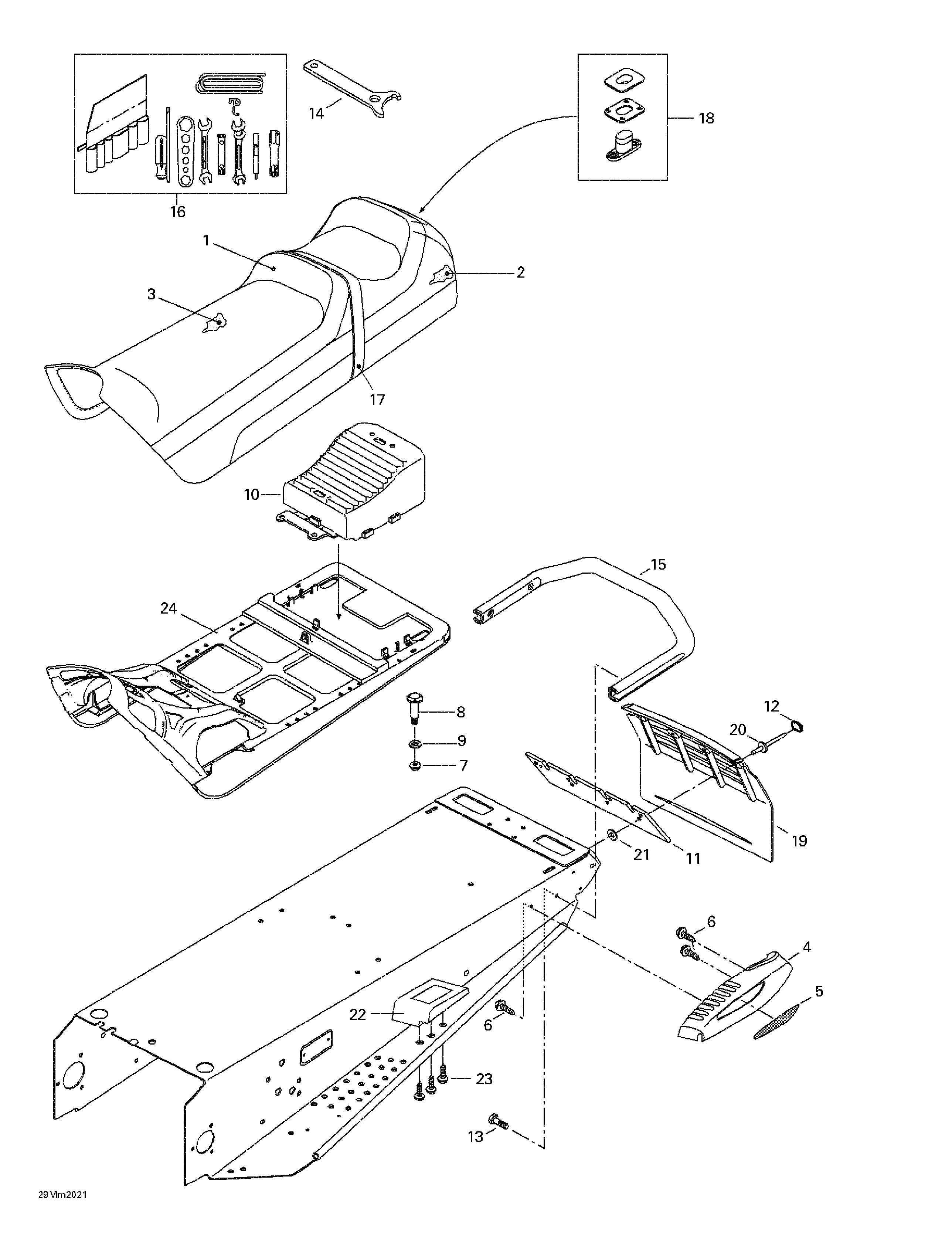

09- Seat And Accessories для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1510003740 Seat CoverSeat Cover
-
2510003741 Seat Foam (Side)Seat Foam (Side)
-
3510003752 Seat Foam (Top)Seat Foam (Top)
-
4572103900 R.H. MouldingR.H. Moulding
-
572104000 L.H. MouldingL.H. Moulding
-
5516000237 R.H. ReflectorR.H. Reflector
-
516000241 R.H. Reflector (Europe)R.H. Reflector (Europe)
-
516000238 LH ReflectorLH Reflector
-
516000242 L.H. Reflector (Europe)L.H. Reflector (Europe)
-
6365901100 Self Tapping Screw M12 x 3/4Self Tapping Screw M12 x 3/4
-
7233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
8732601221 > Bolt> Bolt
-
9732610072 Push NutPush Nut
-
10510003751 Rear TrunkRear Trunk
-
11572108200 ReinforcementReinforcement
-
12415073300 CapCap
-
13207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
14529032900 Wrench-AdjusterWrench-Adjuster
-
15517272510 Rear BumperRear Bumper
-
16529035596 Tool KitTool Kit
-
17510003753 Seat BeltSeat Belt
-
18414728000 Buckle-SeatBuckle-Seat
-
19520000182 Snow GuardSnow Guard
-
520000183 Snow Guard (Europe)Snow Guard (Europe)
-
20390908000 Pop Rivet (Black)Pop Rivet (Black)
-
21517225900 WasherWasher
-
22572088700 R.H. FootrestR.H. Footrest
-
572088800 L.H. FootrestL.H. Footrest
-
23243141640 Hex. Tapping Screw M4.8 x 16Hex. Tapping Screw M4.8 x 16
-
24510003739 Sub-SeatSub-Seat
