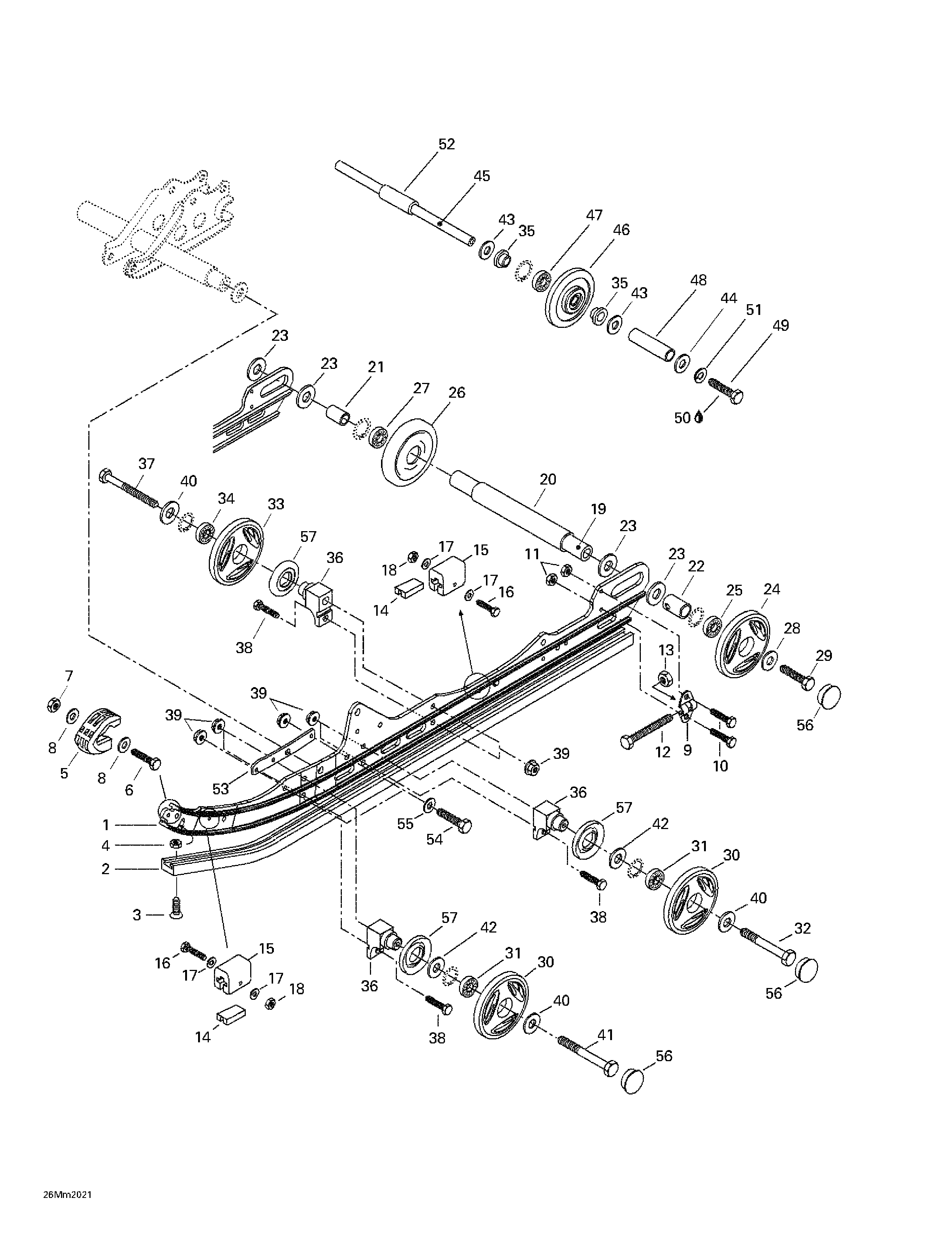

08- Rear Suspension для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1503188979 RunnerRunner
-
2560103500 Runner ShoeRunner Shoe
-
3208562560 Countersunk Head Screw M6 x 25Countersunk Head Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 Flat WasherFlat Washer
-
9503155300 TensionerTensioner
-
10207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14572084800 Stopper ReinforcementStopper Reinforcement
-
15570063000 Rubber StopperRubber Stopper
-
16207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
17391301700 Flat WasherFlat Washer
-
18232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
19503160700 Rear AxleRear Axle
-
20503183000 Spacer (long)Spacer (long)
-
21503182900 Spacer (Short)Spacer (Short)
-
22503189075 Outer SpacerOuter Spacer
-
23503180400 WasherWasher
-
24503189475 Wheel 165 (Black). Includes 24 - 25.Wheel 165 (Black). Includes 24 - 25.
-
25405404500 Ball Bearing 6205Ball Bearing 6205
-
26503189476 Wheel 165. Includes 26 - 27.Wheel 165. Includes 26 - 27.
-
27405404500 Ball Bearing 6205Ball Bearing 6205
-
28503183300 WasherWasher
-
29250000019 Hex. Screw with NylonHex. Screw with Nylon
-
30503188944 Wheel 139. Includes 30 - 31.Wheel 139. Includes 30 - 31.
-
31405404500 Ball Bearing 6205Ball Bearing 6205
-
32207088544 Hex. Screw M8 x 85Hex. Screw M8 x 85
-
33503188998 Wheel 139. Includes 33 - 34.Wheel 139. Includes 33 - 34.
-
34405404500 Ball Bearing 6205Ball Bearing 6205
-
35415112700 CushionCushion
-
36503174600 SupportSupport
-
37207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
38207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40503183100 WasherWasher
-
41207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
42503173700 WasherWasher
-
43503154000 WasherWasher
-
44234081410 Flat Washer 8 mmFlat Washer 8 mm
-
45503160000 Wheel Support AxleWheel Support Axle
-
46572018900 Idler Wheel. Includes 46 - 47.Idler Wheel. Includes 46 - 47.
-
47405404500 Ball Bearing 6205Ball Bearing 6205
-
48503188951 Outer SpacerOuter Spacer
-
49207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
50293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
51234181401 Lock Washer 8 mmLock Washer 8 mm
-
52503153100 SpacerSpacer
-
53503189060 Reinforcement PlateReinforcement Plate
-
54207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
55234081410 Flat Washer 8 mmFlat Washer 8 mm
-
56570063600 Wheel CapWheel Cap
-
57572089000 Labyrinth SealLabyrinth Seal
