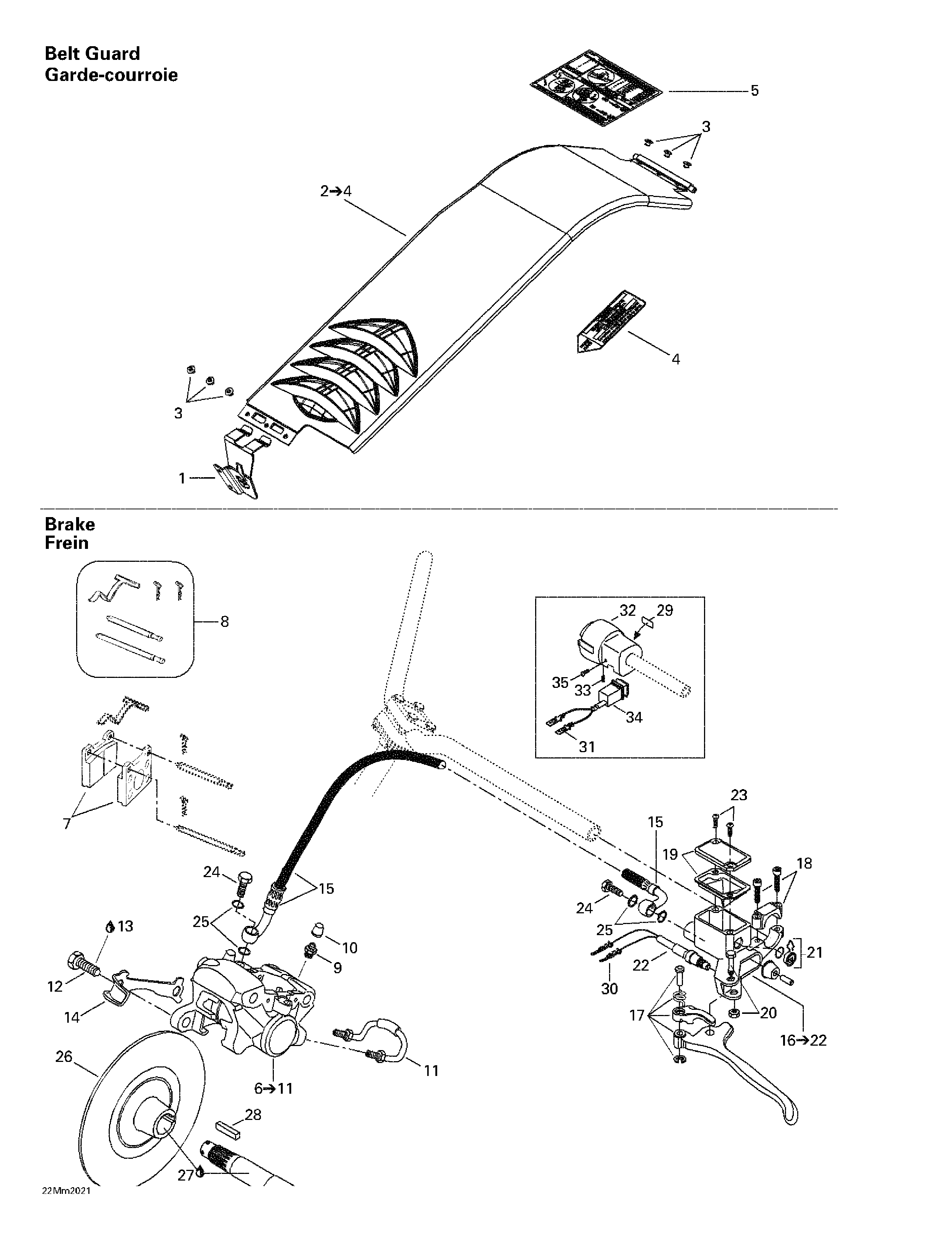

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300002 Belt Guard Ass'y. Includes 2 - 4.Belt Guard Ass'y. Includes 2 - 4.
-
3390402200 Pop Rivet 3/16Pop Rivet 3/16
-
4516000132 Warning LabelWarning Label
-
5418001709 Suspension Adjustment DecalSuspension Adjustment Decal
-
6415034500 Caliper. Includes 6 - 11.Caliper. Includes 6 - 11.
-
7415053600 Brake Lining KitBrake Lining Kit
-
8414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
9414989800 Screw-BleederScrew-Bleeder
-
10414989700 BootBoot
-
11414989900 Rigid TubingRigid Tubing
-
12207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14507029900 Locking TabLocking Tab
-
15507032237 HoseHose
-
16507032277 Master Cylinder. Includes 16 - 22.Master Cylinder. Includes 16 - 22.
-
17415075300 Lever Ass'yLever Ass'y
-
18415029800 Clamp Ass'yClamp Ass'y
-
19415029900 CapCap
-
20415030000 Pin Ass'yPin Ass'y
-
21414990600 WindowWindow
-
22507032284 Microswitch Ass'yMicroswitch Ass'y
-
23216141260 ScrewScrew
-
24414920500 Banjo BoltBanjo Bolt
-
25414920600 WasherWasher
-
26507031300 Brake DiskBrake Disk
-
27293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
28507021300 KeyKey
-
29415025500 Switch DecalSwitch Decal
-
30515175232 Male TerminalMale Terminal
-
31515175273 Male TerminalMale Terminal
-
32515175307 Brake HousingBrake Housing
-
33414440800 Set ScrewSet Screw
-
34515175390 SwitchSwitch
-
35250000022 Phillips ScrewPhillips Screw
