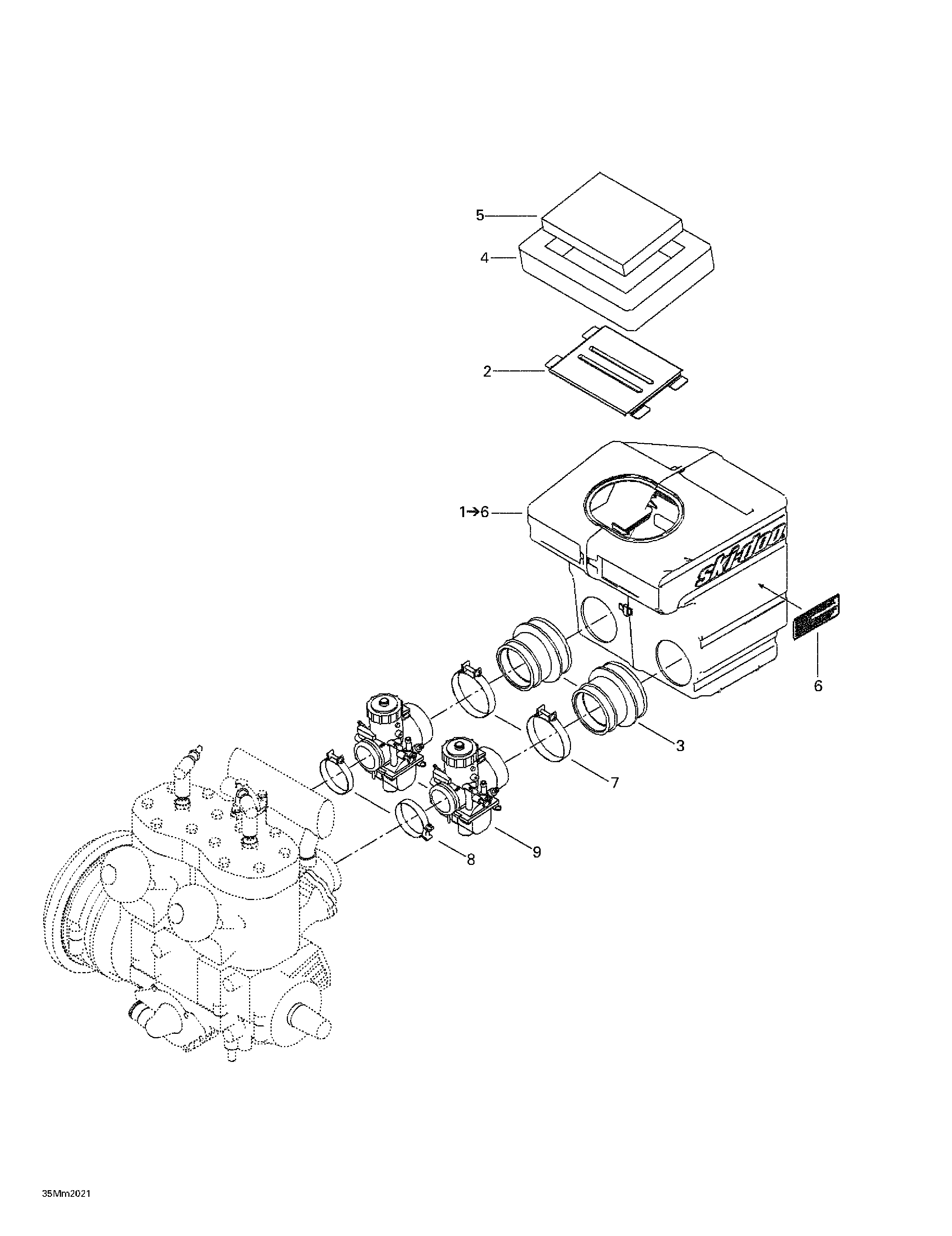

02- Air Intake System для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1508000074 Air Intake Ass'y. Includes 1 - 6.Air Intake Ass'y. Includes 1 - 6.
-
2508000004 Intake GrillIntake Grill
-
3570068900 Air Intake Adaptor (40 mm)Air Intake Adaptor (40 mm)
-
4508000099 Lower FoamLower Foam
-
5415103200 Air FilterAir Filter
-
6516000130 Caution LabelCaution Label
-
7508000009 ClampClamp
-
8512059006 ClampClamp
-
9403138614 VM 40-122 CarburetorVM 40-122 Carburetor
