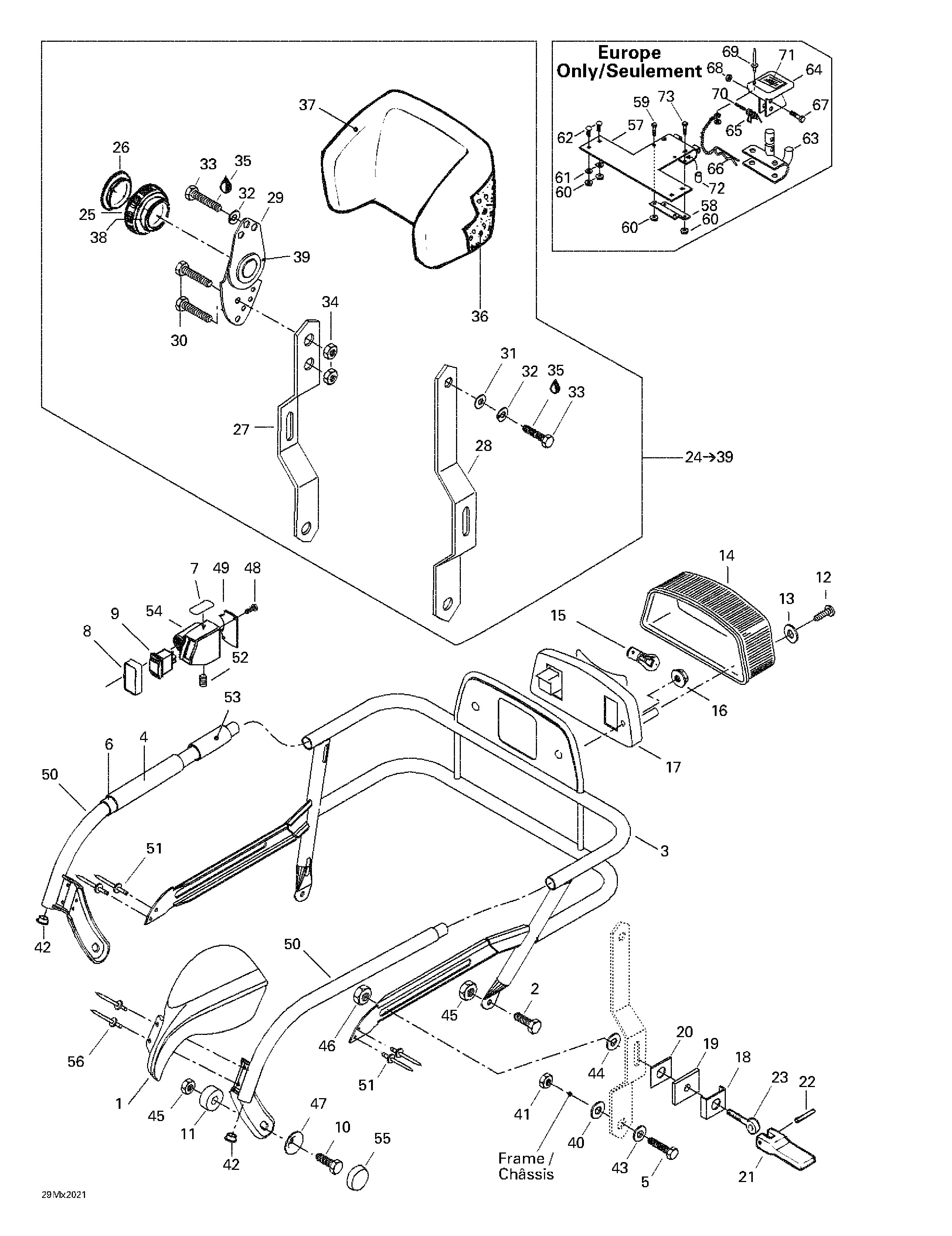

09- Luggage Rack, Hitch для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1572089400 R.H. ProtectorR.H. Protector
-
572089500 L.H. ProtectorL.H. Protector
-
2207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
3511000126 Rack Ass'yRack Ass'y
-
4415050200 L.H. Grip (370 mm)L.H. Grip (370 mm)
-
415050300 R.H. Grip (250 mm)R.H. Grip (250 mm)
-
5207182584 Screw M8 x 25Screw M8 x 25
-
6414988700 Reflective SheetReflective Sheet
-
7418001800 Heat Grip DecalHeat Grip Decal
-
8511000002 Switch ProtectorSwitch Protector
-
9511000001 Rocker SwitchRocker Switch
-
10207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
11511000114 SpacerSpacer
-
12209632540 Phillips ScrewPhillips Screw
-
13414516400 WasherWasher
-
14414513700 LensLens
-
15410504000 BulbBulb
-
16233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
17515175405 Lamp HousingLamp Housing
-
18517257300 GuideGuide
-
19570027400 Rubber ShimRubber Shim
-
20517251300 SpacerSpacer
-
21572038200 Lock LeverLock Lever
-
22414821400 PinPin
-
23517257600 Eye BoltEye Bolt
-
24510003783 Backrest Ass'y. Includes 24 - 39.Backrest Ass'y. Includes 24 - 39.
-
25414820900 Tiller HandleTiller Handle
-
26414821000 CapCap
-
27517296400 R.H. ArmR.H. Arm
-
28517296500 L.H. ArmL.H. Arm
-
29414813300 ReclinerRecliner
-
30207182544 Hex Screw M8 x 25Hex Screw M8 x 25
-
31224081201 Flat WasherFlat Washer
-
32234181401 Lock Washer 8 mmLock Washer 8 mm
-
33207182044 Hex Screw M8 x 20Hex Screw M8 x 20
-
34232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
35293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
36414821200 Backrest FoamBackrest Foam
-
37510003782 Backrest CoverBackrest Cover
-
38415015500 StripStrip
-
39517250500 CapCap
-
40414819600 WasherWasher
-
41232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
42572110800 CapCap
-
43234081670 Washer 8 mmWasher 8 mm
-
44414819500 WasherWasher
-
45233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
46517250000 NutNut
-
47506115800 CupCup
-
48732601255 ScrewScrew
-
49572089300 PlatePlate
-
50511000108 R.H. ArmR.H. Arm
-
511000111 L.H. ArmL.H. Arm
-
51390403600 Pop Rivet 3/16Pop Rivet 3/16
-
52206580890 Screw Set M8 x 8Screw Set M8 x 8
-
53415050400 Grip (Short) (60 mm)Grip (Short) (60 mm)
-
54572089200 Switch HousingSwitch Housing
-
55572045900 CapCap
-
56390906800 Pop Rivet 3/16Pop Rivet 3/16
-
57511000065 Fixation (Europe)Fixation (Europe)
-
58517223500 Reinforcement (Europe)Reinforcement (Europe)
-
59207162044 Hex. Screw M6 x 20 (Europe)Hex. Screw M6 x 20 (Europe)
-
60233261414 Elastic Flanged Nut M6 (Europe)Elastic Flanged Nut M6 (Europe)
-
61224061201 Flat Washer (Europe)Flat Washer (Europe)
-
62207762044 Carriage Bolt M6 x 20 (Europe)Carriage Bolt M6 x 20 (Europe)
-
63517199300 Hitch (Europe)Hitch (Europe)
-
64517152700 Hitch Protector (Europe)Hitch Protector (Europe)
-
65517152800 Spring (Europe)Spring (Europe)
-
66114045200 Hair Pin (Europe)Hair Pin (Europe)
-
67207063044 Hex. Screw M6 x 30 (Europe)Hex. Screw M6 x 30 (Europe)
-
68232561414 Elastic Stop Nut M6 (Europe)Elastic Stop Nut M6 (Europe)
-
69390409400 Pop Rivet (Europe)Pop Rivet (Europe)
-
70732804000 Pin Spring (Europe)Pin Spring (Europe)
-
71414998500 Instruction Label (Europe)Instruction Label (Europe)
-
72517191700 Spacer (Europe)Spacer (Europe)
-
73207065044 Hex. Screw M6 x 50 (Europe)Hex. Screw M6 x 50 (Europe)
