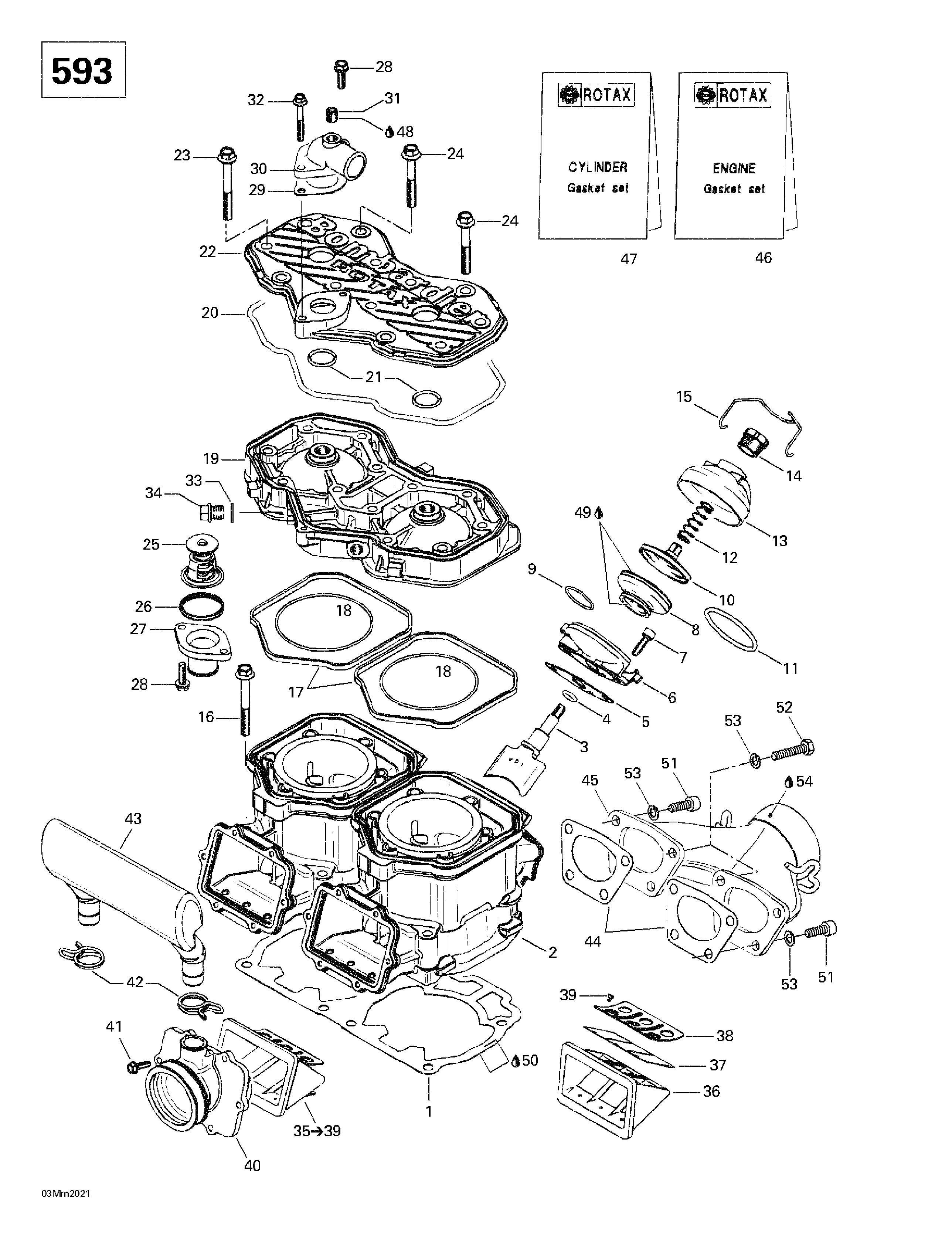

01- Cylinder, Exhaust Manifold, Reed Valve для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1420931584 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
420931962 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
420931582 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
420931583 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
2420923435 Cylinder with SleeveCylinder with Sleeve
-
3420854370 Exhaust ValveExhaust Valve
-
4420430110 O'RingO'Ring
-
5420250239 GasketGasket
-
6420854265 Valve HousingValve Housing
-
7205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
8290260723 BellowsBellows
-
9420838253 Spring ClampSpring Clamp
-
10420854447 Exhaust ValveExhaust Valve
-
11290239048 Hose SpringHose Spring
-
12420239944 SpringSpring
-
13420911551 Valve CoverValve Cover
-
14420241220 Adjuster ScrewAdjuster Screw
-
15420838082 Spring ClipSpring Clip
-
16420841999 Hex. Screw M8 x 68.5Hex. Screw M8 x 68.5
-
17420931590 Rubber RingRubber Ring
-
18293300026 O'RingO'Ring
-
19420923450 Cylinder Head (Silver)Cylinder Head (Silver)
-
20420950320 O'RingO'Ring
-
21420430782 O'RingO'Ring
-
22420923460 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
23420841306 Hex. Collar Screw M8 x 65Hex. Collar Screw M8 x 65
-
24420941621 Hex. Collar Screw M8 x 56.5Hex. Collar Screw M8 x 56.5
-
25414834100 ThermostatThermostat
-
26420931270 Sealing RingSealing Ring
-
27420922025 Outlet SocketOutlet Socket
-
28420941250 Screw M6 x 20Screw M6 x 20
-
29420850338 GasketGasket
-
30420922062 Bent Outlet SocketBent Outlet Socket
-
31420240480 Plug Screw 1/8-27 NPTPlug Screw 1/8-27 NPT
-
32420941451 Hex. Collar Screw M6 x 40Hex. Collar Screw M6 x 40
-
33420250015 Gasket RingGasket Ring
-
34420841921 Plug Screw M12 x 1.5Plug Screw M12 x 1.5
-
35420924519 Reed Valve Ass'y. Includes 35 - 39.Reed Valve Ass'y. Includes 35 - 39.
-
37420924532 Pedal ReedPedal Reed
-
38420924539 Reed Pedal StopReed Pedal Stop
-
39420941215 Screw M3 x 5Screw M3 x 5
-
40420867805 Carburetor SocketCarburetor Socket
-
41420941925 Screw M5 x 16Screw M5 x 16
-
42420851440 ClampClamp
-
43420867815 Intake ResonatorIntake Resonator
-
44420931610 GasketGasket
-
45420979543 Exhaust ManifoldExhaust Manifold
-
46420888581 Engine Gasket SetEngine Gasket Set
-
47420888586 Cylinder Gasket SetCylinder Gasket Set
-
48293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
49413707000 Molykote 111Molykote 111
-
50293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
51205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
52207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
53234181401 Lock Washer 8 mmLock Washer 8 mm
-
54413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
