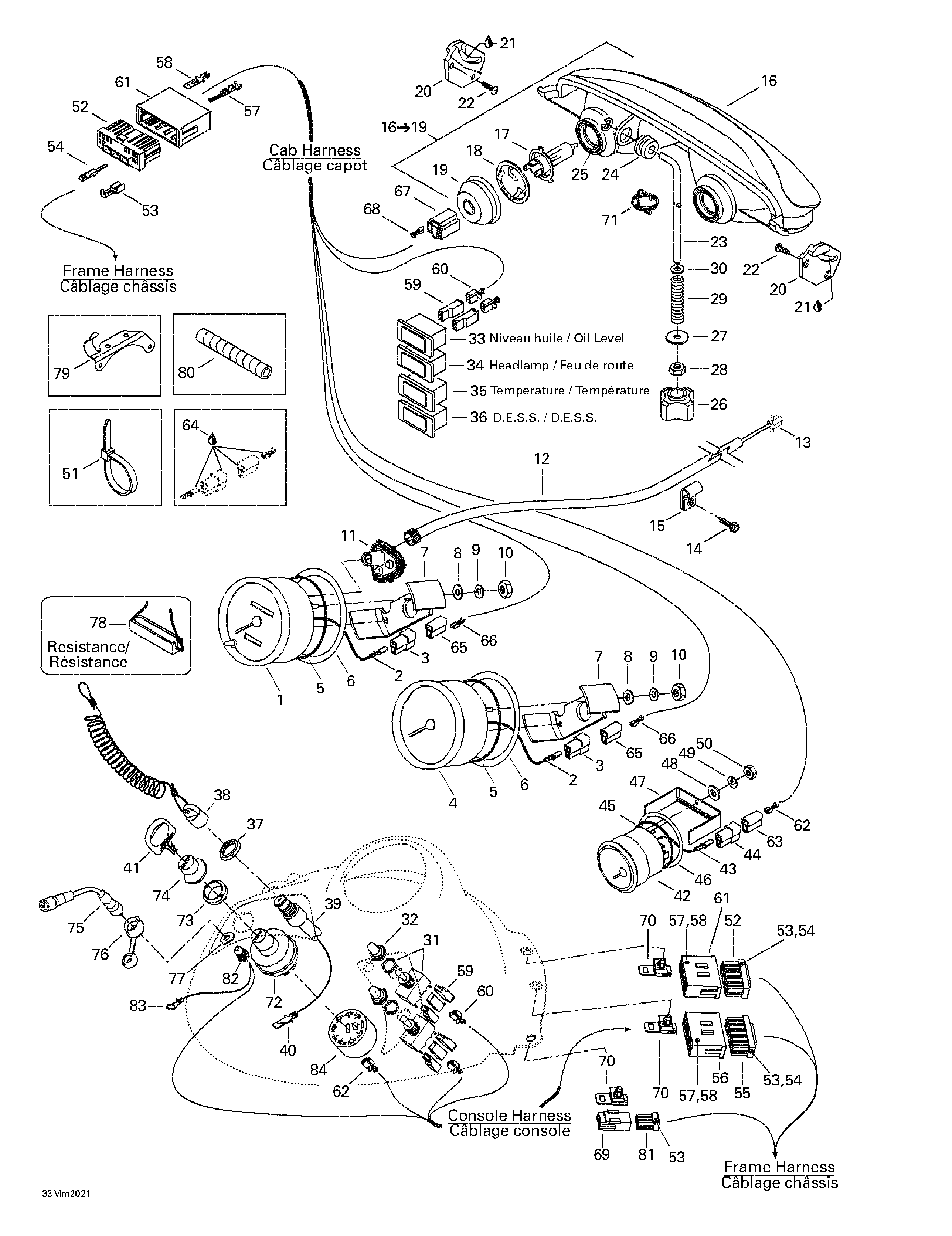

10- Electrical System для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MPH)Speedometer (MPH)
-
2409210000 Male Terminal (14-18 Gauge)Male Terminal (14-18 Gauge)
-
3409204500 Male Terminal Housing (2 circuits)Male Terminal Housing (2 circuits)
-
4515175340 TachometerTachometer
-
5414807100 O-RingO-Ring
-
6517258500 WasherWasher
-
7414806500 Case HolderCase Holder
-
8414806800 Flat WasherFlat Washer
-
9414806700 Lock WasherLock Washer
-
10414806900 NutNut
-
11515175400 Drive AngleDrive Angle
-
12415101500 Speedometer CableSpeedometer Cable
-
13572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
15414176000 Clip (Cable)Clip (Cable)
-
16515175158 Halogen Headlamp. Includes 16 - 19.Halogen Headlamp. Includes 16 - 19.
-
17410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
18410608300 Bulb HolderBulb Holder
-
19410607100 Protector CapProtector Cap
-
20517289300 Headlamp Support R.HHeadlamp Support R.H
-
517289400 Headlamp Support L.HHeadlamp Support L.H
-
21413707500 Grease Tube LMZ, 400 gGrease Tube LMZ, 400 g
-
22732601315 Headlamp ScrewHeadlamp Screw
-
23517295800 Adjuster RodAdjuster Rod
-
24415100800 GrommetGrommet
-
25732610072 Push NutPush Nut
-
26572100800 HandleHandle
-
27224060251 WasherWasher
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
29415100600 SpringSpring
-
30234061410 Flat Washer 6 mmFlat Washer 6 mm
-
31410107300 Switch (Heating Grip)Switch (Heating Grip)
-
32515175281 Switch CoverSwitch Cover
-
33410109500 Pilot Lamp (Oil Level)Pilot Lamp (Oil Level)
-
34410109600 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
35410109700 Pilot Lamp (Temperature)Pilot Lamp (Temperature)
-
36410113300 Pilot Lamp (DESS)Pilot Lamp (DESS)
-
37278000508 Safety Switch NutSafety Switch Nut
-
38515166900 DESS Cap Ass'yDESS Cap Ass'y
-
39515175145 DESS Switch. Includes 39 - 40.DESS Switch. Includes 39 - 40.
-
40515175232 Male TerminalMale Terminal
-
41414991700 Blank Key (Plastic PKG 5)Blank Key (Plastic PKG 5)
-
42515175343 Fuel GaugeFuel Gauge
-
43409210000 Male TerminalMale Terminal
-
44409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
45414807200 O-RingO-Ring
-
46517258600 Formed WasherFormed Washer
-
47415099800 Case HolderCase Holder
-
48391301700 WasherWasher
-
49414833700 Lock WasherLock Washer
-
50414833600 NutNut
-
51293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
515175220 Tie RapTie Rap
-
52515175350 Female Terminal Housing (13 circuits)Female Terminal Housing (13 circuits)
-
53515175231 Female TerminalFemale Terminal
-
54515175282 Female TerminalFemale Terminal
-
55515175349 Female Terminal Housing (15 circuits)Female Terminal Housing (15 circuits)
-
56515175351 Male Terminal Housing (15 circuits)Male Terminal Housing (15 circuits)
-
57515175232 Male TerminalMale Terminal
-
58515175273 Male TerminalMale Terminal
-
59409010400 Female Terminal Housing (1 circuit)Female Terminal Housing (1 circuit)
-
60409010100 Female TerminalFemale Terminal
-
61515175352 Male Terminal Housing (13 circuits)Male Terminal Housing (13 circuits)
-
62561503100 Female TerminalFemale Terminal
-
63409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
64293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
65409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
66561503100 Female TerminalFemale Terminal
-
67409202700 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
68515175320 Female TerminalFemale Terminal
-
69515175494 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
70515175283 Housing SupportHousing Support
-
71515175324 Spring (Europe)Spring (Europe)
-
72410111300 Ignition SwitchIgnition Switch
-
73410112100 Face NutFace Nut
-
74570013700 Switch BootSwitch Boot
-
75515175161 Visor Plug ExtensionVisor Plug Extension
-
76572103300 CapCap
-
77503175800 WasherWasher
-
78515175241 Resistance (50 ohms)Resistance (50 ohms)
-
79515175254 Cable SupportCable Support
-
80409902100 Tubing 6 mmTubing 6 mm
-
81515175495 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
84572150700 Ignition Switch BlockIgnition Switch Block
