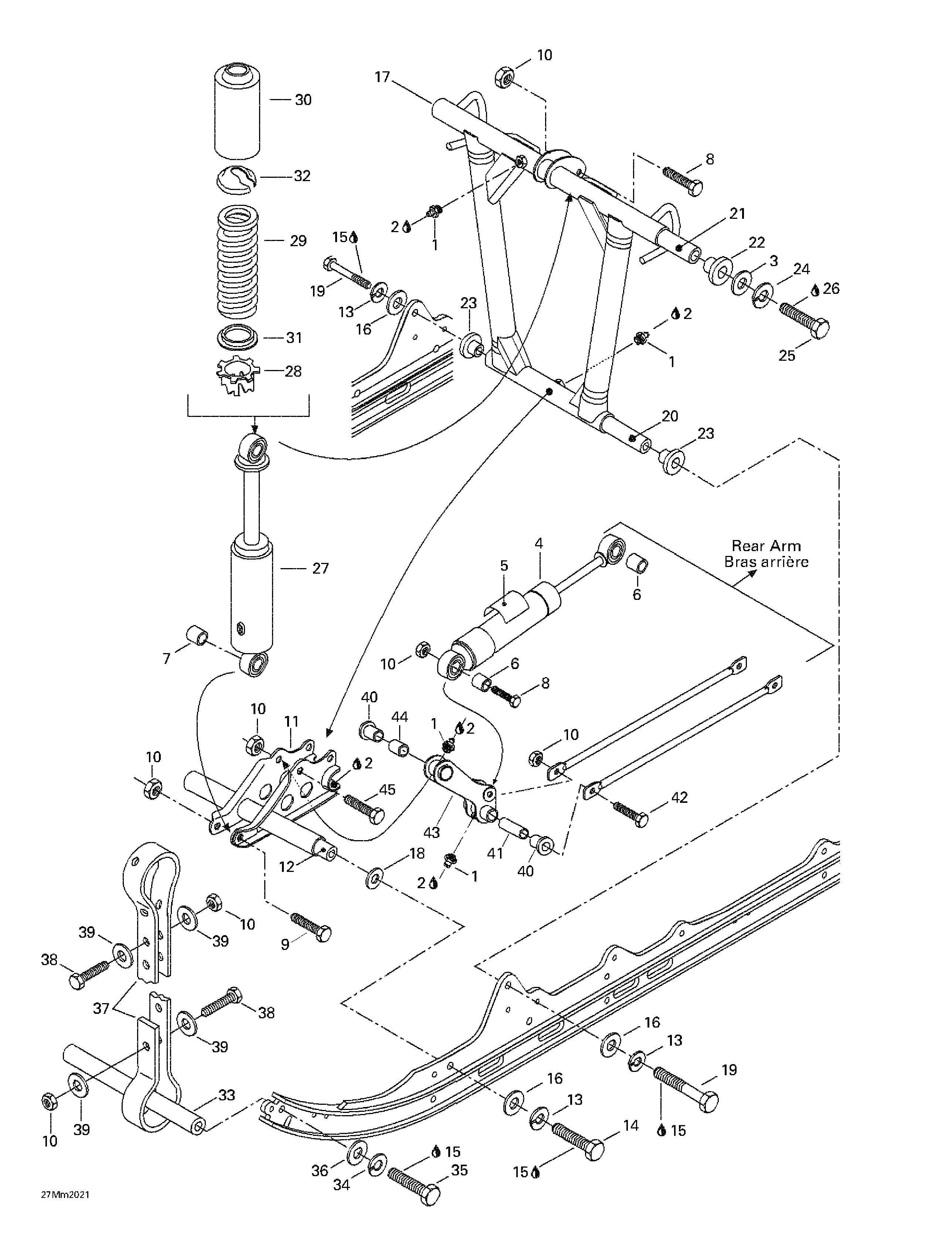

08- Front Arm для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1408200700 Grease Fitting M6Grease Fitting M6
-
2219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
3234001410 Flat Washer 10 mmFlat Washer 10 mm
-
4415102400 Rear ShockRear Shock
-
503189496 Rear Shock (Europe)Rear Shock (Europe)
-
5516000182 HPG Decal (Europe)HPG Decal (Europe)
-
6414936000 Cushion (Europe)Cushion (Europe)
-
7414917900 CushionCushion
-
8207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
9207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11503188976 Center SupportCenter Support
-
12503174900 Lower AxleLower Axle
-
13234120602 Lock Washer 12 mmLock Washer 12 mm
-
14207124044 Hex. Screw M12 x 40Hex. Screw M12 x 40
-
15293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
16234021410 Flat Washer 12 mmFlat Washer 12 mm
-
17503189185 Front ArmFront Arm
-
18503175400 Hardened WasherHardened Washer
-
19207026044 Hex. Screw M12 x 60Hex. Screw M12 x 60
-
20503189313 ShaftShaft
-
21503188938 ShaftShaft
-
22503189324 CushionCushion
-
23503189323 CushionCushion
-
24234101601 Lock Washer 10 mmLock Washer 10 mm
-
25207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
26293800060 Loctite 242, 10 mlLoctite 242, 10 ml
-
27503189196 Center ShockCenter Shock
-
28503169000 CamCam
-
29415057500 Shock SpringShock Spring
-
30503188930 ProtectorProtector
-
31572092600 Spring GuideSpring Guide
-
32503140600 Spring StopperSpring Stopper
-
33503151600 AxleAxle
-
34234181401 Lock Washer 8 mmLock Washer 8 mm
-
35207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
36234081410 Flat Washer 8 mmFlat Washer 8 mm
-
37503189362 Stopper StrapStopper Strap
-
38207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
39517078700 WasherWasher
-
40415052300 Plastic CushionPlastic Cushion
-
41503171600 Tie Rod ShaftTie Rod Shaft
-
42207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
43503171400 LeverLever
-
44503171700 Pivot AxlePivot Axle
-
45207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
