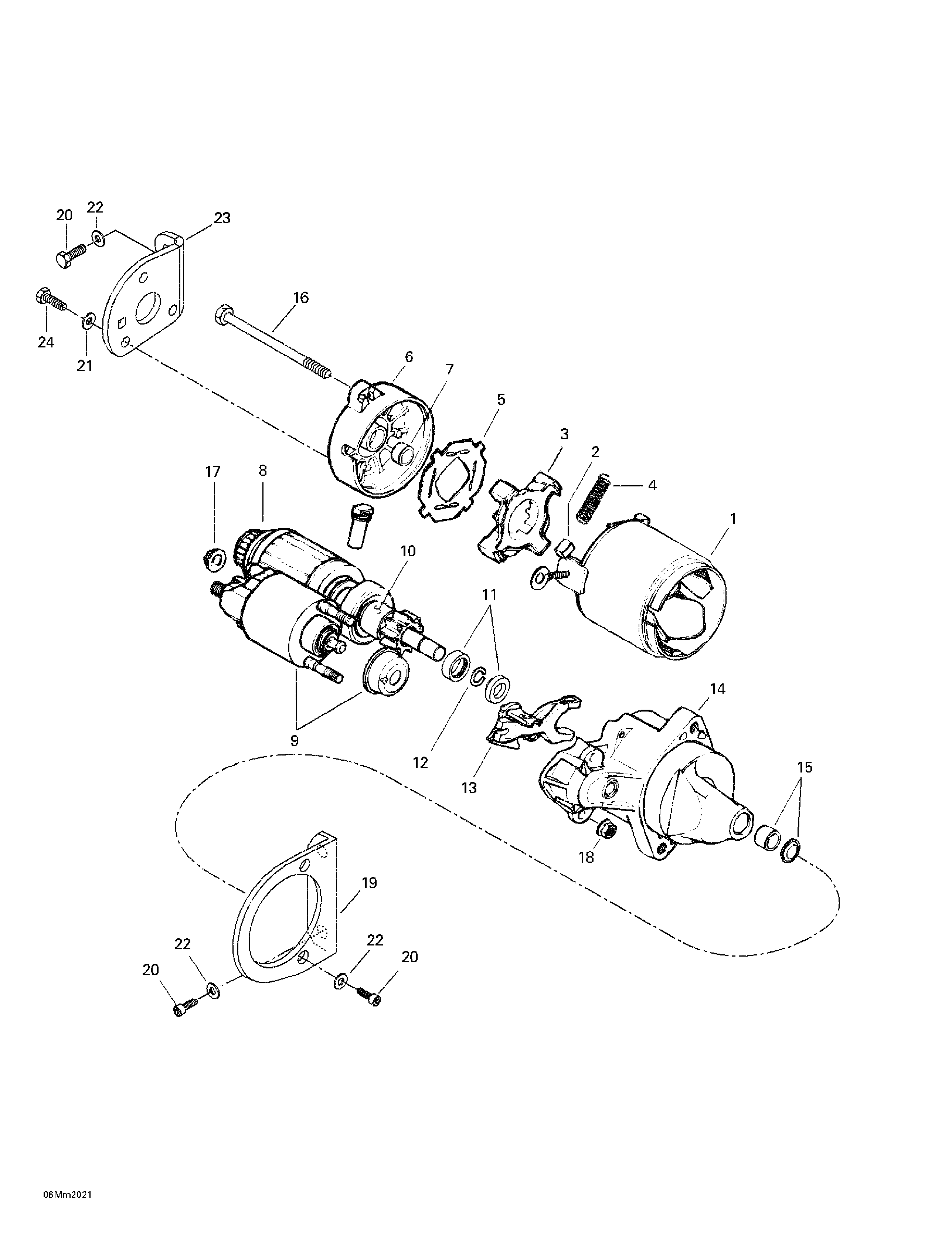

04- Electric Starter для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1515175438 Starter. Includes 1 - 18.Starter. Includes 1 - 18.
-
1410213106 Starter HousingStarter Housing
-
2410213107 Brush KitBrush Kit
-
3410209700 Brush HolderBrush Holder
-
4410209800 Brush SpringBrush Spring
-
5410209900 InsulatorInsulator
-
7410210100 Bushing BrassBushing Brass
-
8410210200 Armature Ass'yArmature Ass'y
-
9410210300 Switch Ass'ySwitch Ass'y
-
10410210400 Starter ClutchStarter Clutch
-
11410212500 NutNut
-
12410212600 CirclipCirclip
-
13410213109 LeverLever
-
14410213110 HousingHousing
-
15410210900 Bushing BrassBushing Brass
-
16410213112 BoltBolt
-
17410211100 NutNut
-
18410211200 NutNut
-
19515175142 Starter Bracket (PTO)Starter Bracket (PTO)
-
20207582044 Screw Hex. M8 x 20 (Scotch Grip)Screw Hex. M8 x 20 (Scotch Grip)
-
21234061410 Washer 6 mmWasher 6 mm
-
22250200008 Washer 8 mmWasher 8 mm
-
23515175441 Starter Support (MAG)Starter Support (MAG)
-
24207361644 Screw Hex. M6 x 16 (Scotch Grip)Screw Hex. M6 x 16 (Scotch Grip)
