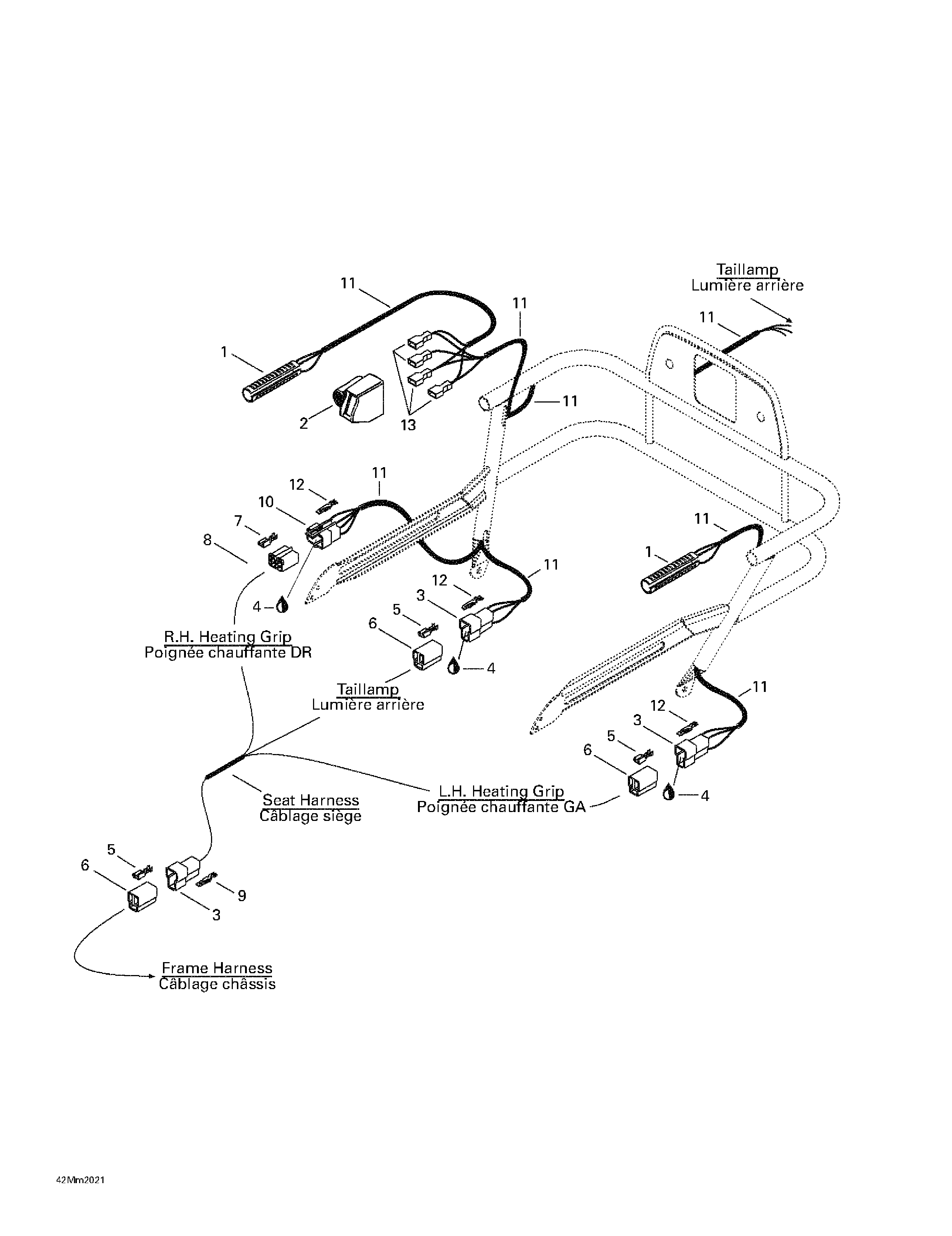

09- Rack для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1515175387 Heating ElementHeating Element
-
2572089200 Switch HousingSwitch Housing
-
3409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
4293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
5561503100 Female TerminalFemale Terminal
-
6409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
7561503200 Female TerminalFemale Terminal
-
8409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
9409206100 Male TerminalMale Terminal
-
10409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
11515175332 VinylVinyl
-
12409210000 Male TerminalMale Terminal
-
13409010700 Female TerminalFemale Terminal
