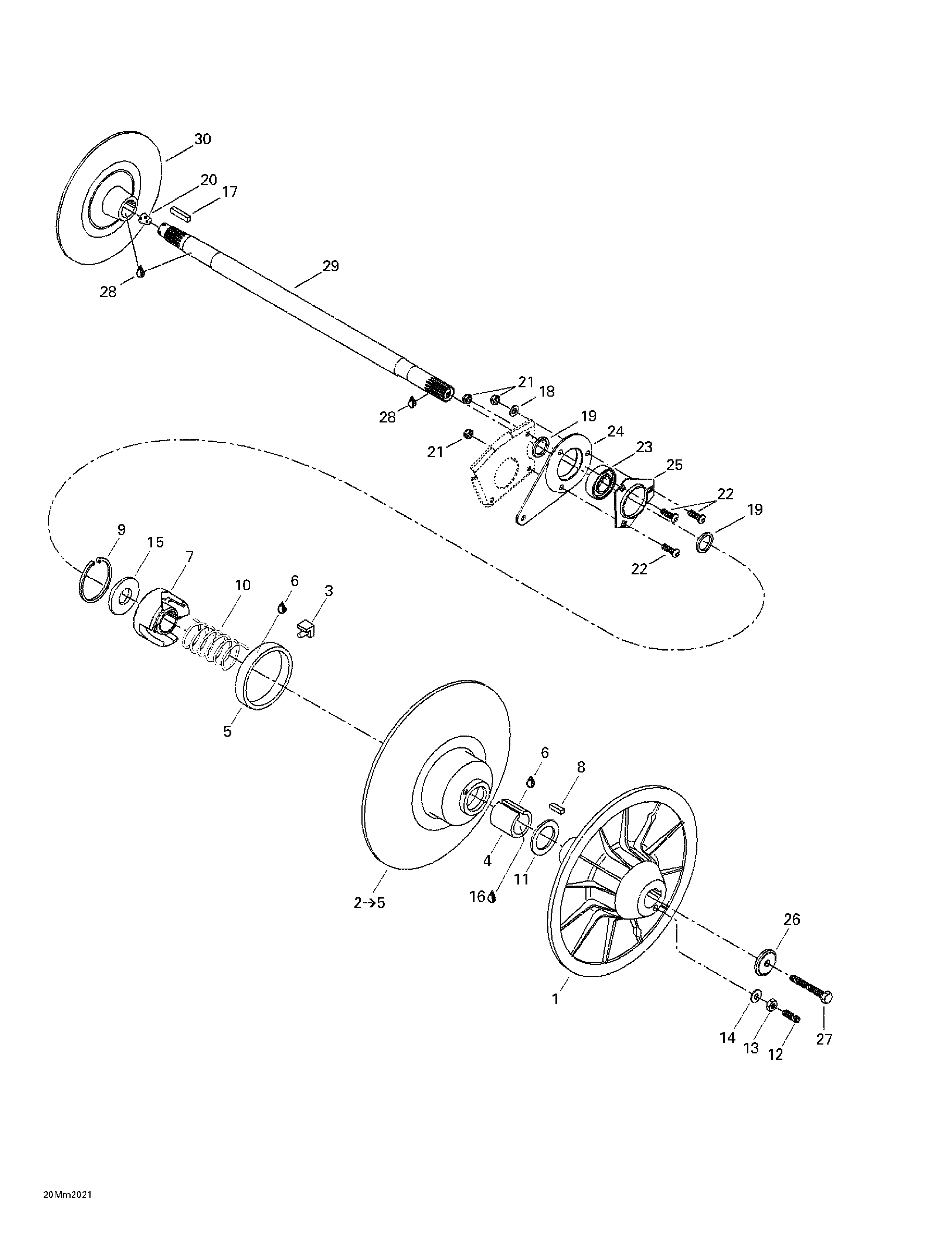

05- Driven Pulley для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1417010200 Fixed FlangeFixed Flange
-
2504143400 Sliding Flange Ass'ySliding Flange Ass'y
-
3414918000 Cam Slider ShoeCam Slider Shoe
-
4415011200 BushingBushing
-
5414876600 Bushing GarlockBushing Garlock
-
6413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
7417126337 Cam 47 DegCam 47 Deg
-
8414820800 KeyKey
-
9371903100 CirclipCirclip
-
10414558900 Release Spring (Beige)Release Spring (Beige)
-
11504141900 Thrust WasherThrust Washer
-
12206263044 Socket Set Screw M6 x 30Socket Set Screw M6 x 30
-
13232061414 Hex. Nut M6Hex. Nut M6
-
14420245370 WasherWasher
-
15504141800 WasherWasher
-
16413701000 Loctite 767, Antiseize Lubricant, 12 ozLoctite 767, Antiseize Lubricant, 12 oz
-
17507021300 KeyKey
-
18234081410 Flat Washer 8 mmFlat Washer 8 mm
-
19504149100 SpacerSpacer
-
20414784800 CorkCork
-
21232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
22205482546 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
23405408200 Ball BearingBall Bearing
-
24080044200 Casting SpacerCasting Spacer
-
25501025000 FlangeFlange
-
26517302322 WasherWasher
-
27207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
28293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
29501026300 CountershaftCountershaft
-
30507031300 Brake DiskBrake Disk
