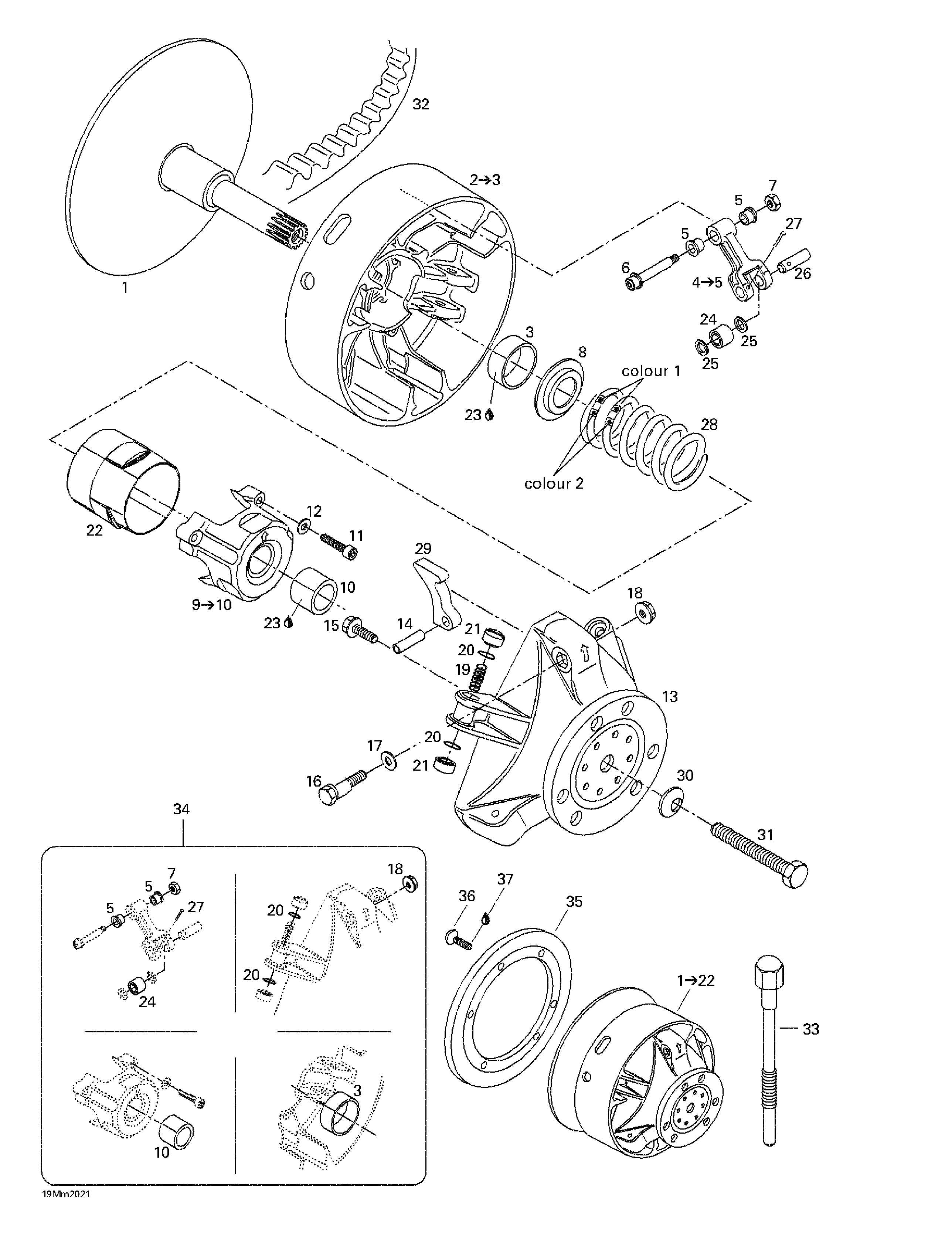

05- Drive Pulley для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1417222283 Drive Pulley Ass'y. Includes 1 - 22.Drive Pulley Ass'y. Includes 1 - 22.
-
1417222160 Fixed FlangeFixed Flange
-
2417222049 Sliding Flange Ass'y. Includes 2 - 3.Sliding Flange Ass'y. Includes 2 - 3.
-
3417004201 BushingBushing
-
4417003801 Lever Ass'y. Includes 4 - 5.Lever Ass'y. Includes 4 - 5.
-
5417004305 BushingBushing
-
6417004800 Screw Ass'yScrew Ass'y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8417222044 Spring SeatSpring Seat
-
9417222298 Spring Cover Ass'y. Includes 9 - 10.Spring Cover Ass'y. Includes 9 - 10.
-
10417004501 BushingBushing
-
11250000038 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
12420245370 WasherWasher
-
13417222081 Governor Cup Ass'yGovernor Cup Ass'y
-
14732804009 Rolled Pin M8 x 24Rolled Pin M8 x 24
-
15210361890 Hex. Forming Screw M6 x 18Hex. Forming Screw M6 x 18
-
16417005500 Calibration ScrewCalibration Screw
-
17417005600 WasherWasher
-
18233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
19417005700 SpringSpring
-
20732401030 O-RingO-Ring
-
21417005800 Slider ShoeSlider Shoe
-
22417222176 GuardGuard
-
23413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
24417003900 Roller Ass'yRoller Ass'y
-
25417004302 Stopper WasherStopper Washer
-
26417004308 PinPin
-
27732958001 Cotter PinCotter Pin
-
28414689500 Spring (Blue/Yellow)Spring (Blue/Yellow)
-
29417005281 Ramp 281Ramp 281
-
30250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
31417120000 Drive Pulley BoltDrive Pulley Bolt
-
32414860700 Drive BeltDrive Belt
-
33529022400 Puller Inner HalfPuller Inner Half
-
34417006100 Clutch Repair KitClutch Repair Kit
-
35417300057 Ring GearRing Gear
-
36236281684 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
37293800005 Loctite 271, 10 mlLoctite 271, 10 ml
