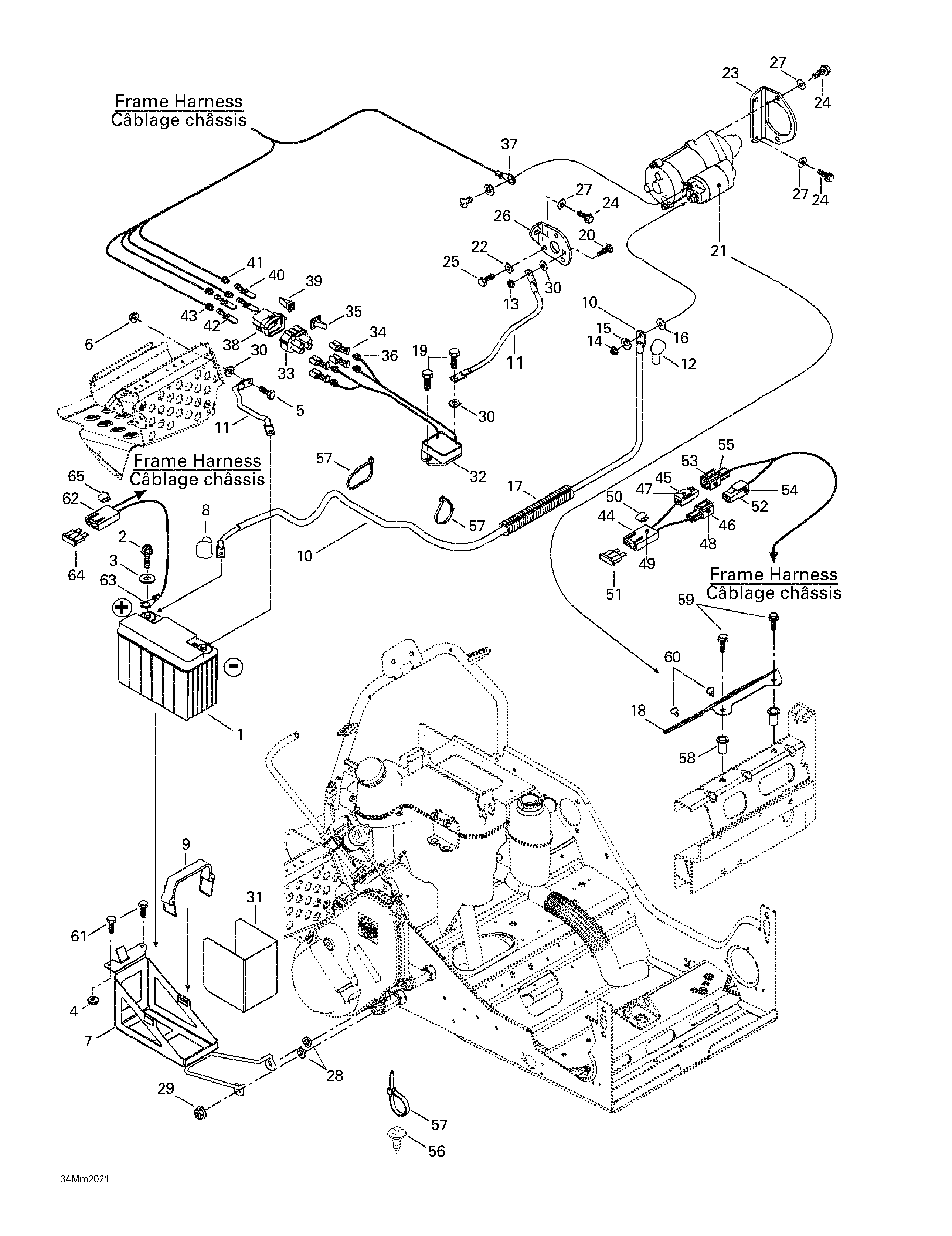

10- Battery And Starter для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1515175481 Battery. Includes 1 - 3.Battery. Includes 1 - 3.
-
4233251414 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
5207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
6233261414 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
7515175472 Battery SupportBattery Support
-
8570151000 Protection CapProtection Cap
-
9515175475 Battery StrapBattery Strap
-
10515175482 Battery WireBattery Wire
-
11515175483 Ground WireGround Wire
-
12278000020 Protector CapProtector Cap
-
13233261414 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
14232081414 Hex. Nut M8Hex. Nut M8
-
15234181401 Lock Washer 8 mmLock Washer 8 mm
-
16234081410 Flat Washer 8 mmFlat Washer 8 mm
-
17409901700 TubingTubing
-
18515175536 ProtectorProtector
-
19210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
20207762044 Carriage Bolt M6 x 20Carriage Bolt M6 x 20
-
21515175438 StarterStarter
-
22234061410 Flat Washer 6 mmFlat Washer 6 mm
-
23515175142 Starter Bracket (PTO)Starter Bracket (PTO)
-
24207582044 Flanged Screw Hex. M8 x 20 (Scotch Grip)Flanged Screw Hex. M8 x 20 (Scotch Grip)
-
25207361644 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
26515175441 Starter Bracket (MAG)Starter Bracket (MAG)
-
27250200008 Lock Washer 8 mmLock Washer 8 mm
-
28503175800 Flat WasherFlat Washer
-
29233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
30250200000 Lock Washer SerratedLock Washer Serrated
-
31515175363 DeflectorDeflector
-
32515175217 Voltage Regulator. Includes 32 - 36.Voltage Regulator. Includes 32 - 36.
-
33409208000 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
34278000994 Female TerminalFemale Terminal
-
35409013400 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
36278000996 Wire SealWire Seal
-
37515175504 Ring TerminalRing Terminal
-
38409207700 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
39409013100 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
40409010900 Male TerminalMale Terminal
-
41409208300 Wire SealWire Seal
-
42409013000 Male TerminalMale Terminal
-
43278000996 Wire Seal (Orange)Wire Seal (Orange)
-
44409004000 Fuse HolderFuse Holder
-
45515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
46515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
47515175273 Male TerminalMale Terminal
-
48515175282 Female TerminalFemale Terminal
-
49409011600 Female TerminalFemale Terminal
-
50409014200 Backward ClipBackward Clip
-
51278001143 Fuse 20 AMPFuse 20 AMP
-
52515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
53515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
54515175273 Male TerminalMale Terminal
-
55515175282 Female TerminalFemale Terminal
-
56293730018 Dart MountDart Mount
-
57414115200 Tie Rap 180 mmTie Rap 180 mm
-
58415107300 insert M6insert M6
-
59207661644 Flanged Screw Hex. M6 x 16Flanged Screw Hex. M6 x 16
-
60293830005 Rubber PlugRubber Plug
-
61207151644 Screw Hex. M5 x 16Screw Hex. M5 x 16
-
62409004000 Fuse HolderFuse Holder
-
63278000992 Ring TerminalRing Terminal
-
64410917200 Fuse 30 AMPFuse 30 AMP
-
65409014200 Backward ClipBackward Clip
