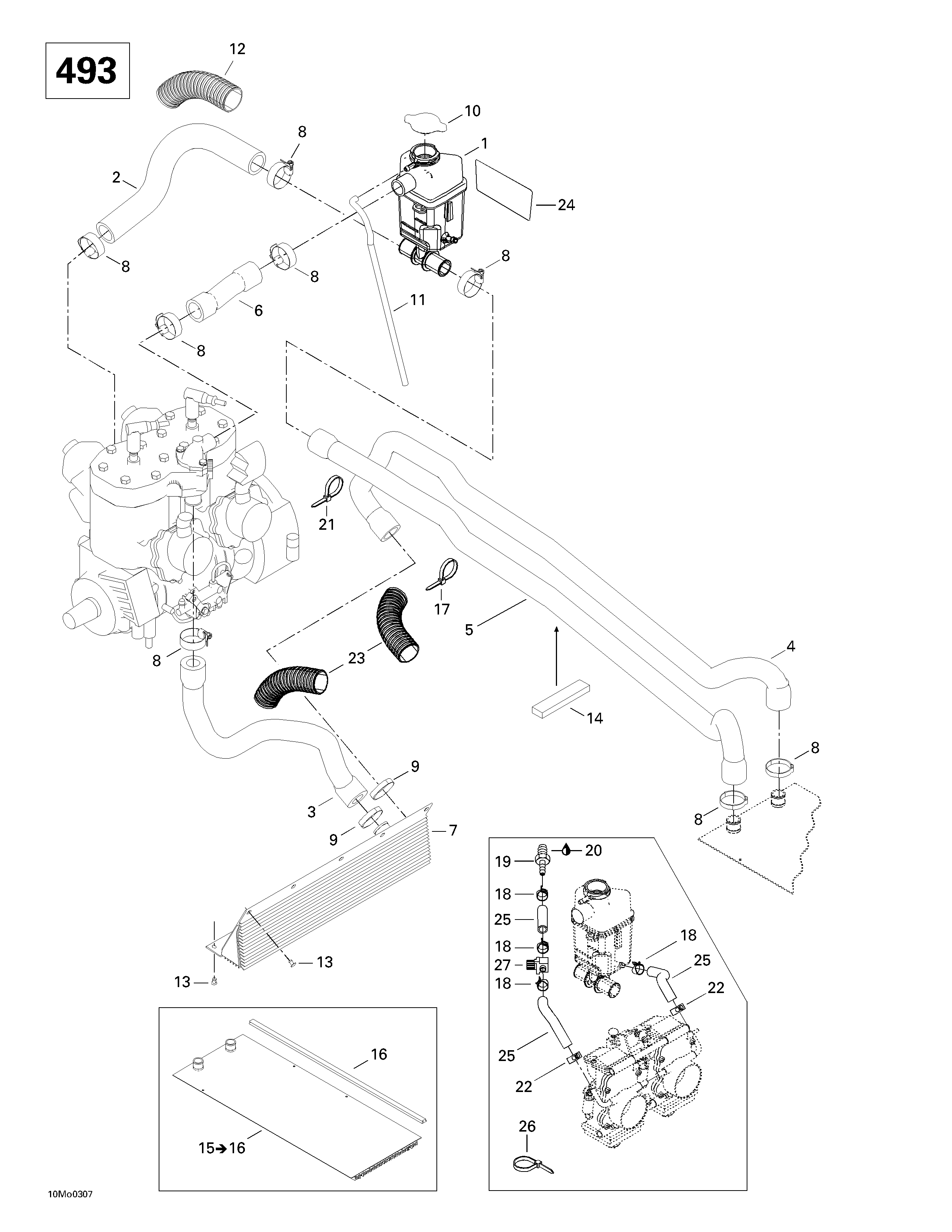

01- Cooling System (493) для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1509000134 Tank Coolant. Legend 500.Tank Coolant. Legend 500.
-
2509000135 Engine Inlet Hose. Legend 500.Engine Inlet Hose. Legend 500.
-
3509000046 Engine Outlet Hose. Legend 500.Engine Outlet Hose. Legend 500.
-
4509000003 Radiator Inlet Hose. Legend 500.Radiator Inlet Hose. Legend 500.
-
5509000004 Radiator Outlet Hose. Legend 500.Radiator Outlet Hose. Legend 500.
-
6509000112 Deviation Hose. Legend 500.Deviation Hose. Legend 500.
-
7517297100 Front Radiator. Legend 500.Front Radiator. Legend 500.
-
8408800400 Tridon Gear Clamp. Legend 500.Tridon Gear Clamp. Legend 500.
-
9509000045 Oetiker Gear Clamp. Legend 500.Oetiker Gear Clamp. Legend 500.
-
10509000187 Pressure Cap. Legend 500.Pressure Cap. Legend 500.
-
11415110000 Polyurethane Hose 5.2 mm. Legend 500.Polyurethane Hose 5.2 mm. Legend 500.
-
12415084700 Protective Shield. Legend 500.Protective Shield. Legend 500.
-
13390402200 Pop Rivet 3/16. Legend 500.Pop Rivet 3/16. Legend 500.
-
14293200003 Seal. Legend 500.Seal. Legend 500.
-
15518322901 Rear Radiator. Includes 15 - 16. Legend 500.Rear Radiator. Includes 15 - 16. Legend 500.
-
16518321655 Radiator Protector. Legend 500.Radiator Protector. Legend 500.
-
17293750008 Tie Rap 350 mm. Legend 500.Tie Rap 350 mm. Legend 500.
-
18414655700 Spring Clamp. Legend 500.Spring Clamp. Legend 500.
-
19293710082 Straight Fitting. Legend 500.Straight Fitting. Legend 500.
-
20293800018 Loctite 592, Pipe Sealant, 50 ml. Legend 500.Loctite 592, Pipe Sealant, 50 ml. Legend 500.
-
21293750008 Tie Rap 350 mm. Legend 500.Tie Rap 350 mm. Legend 500.
-
22293650128 Tridon Clamp. Legend 500.Tridon Clamp. Legend 500.
-
23409902200 Tubing. Legend 500.Tubing. Legend 500.
-
24514053399 Reflective Sheet. Legend 500.Reflective Sheet. Legend 500.
-
25509000093 Hose 8 mm. Legend 500.Hose 8 mm. Legend 500.
-
26293750002 Tie Rap 130 mm. Legend 500.Tie Rap 130 mm. Legend 500.
-
27512059324 Valve 5/16''. Legend 500.Valve 5/16''. Legend 500.
