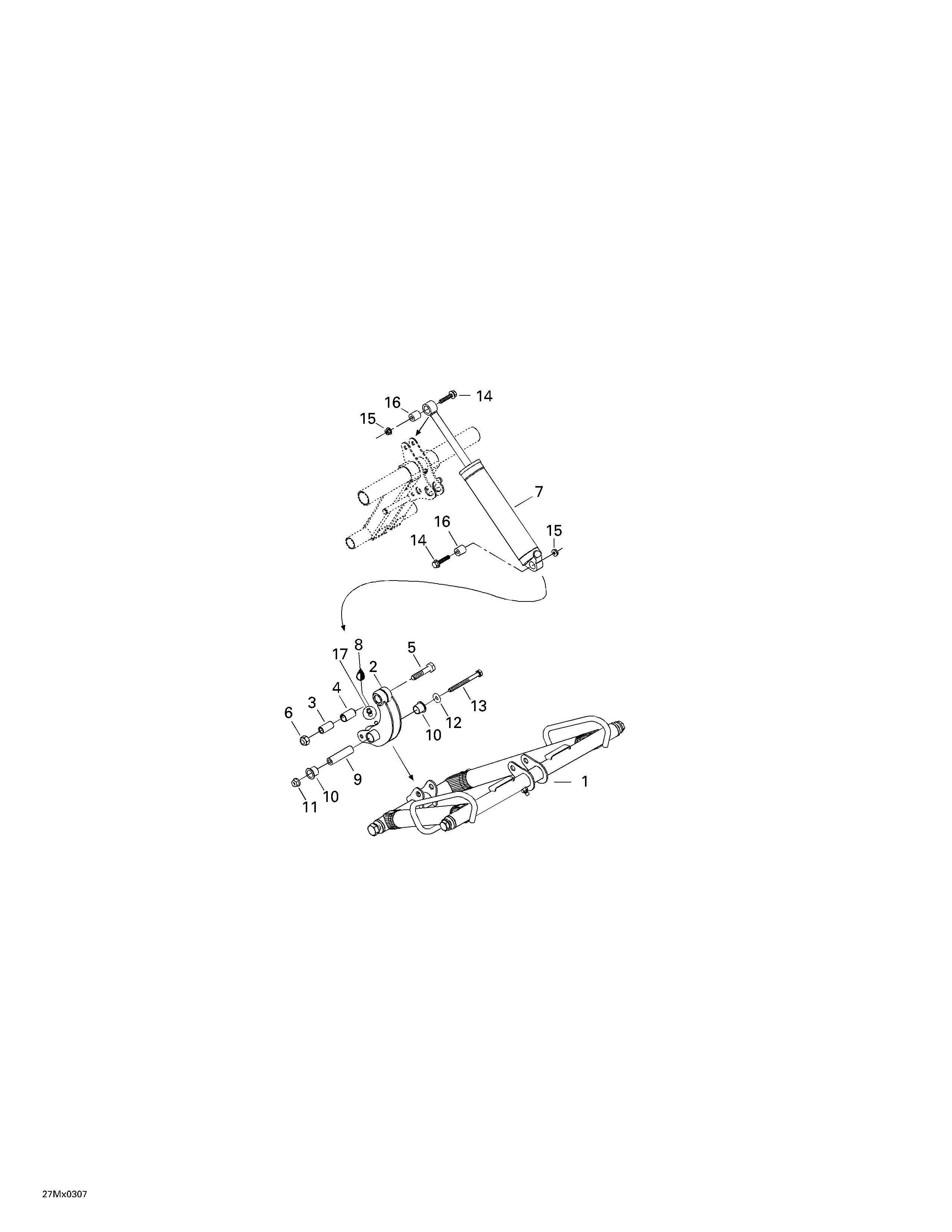

08- Rear Shocks для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189845 RockerRocker
-
503190116 Rocker (SE AIR). Legend 600. Legend 700.Rocker (SE AIR). Legend 600. Legend 700.
-
3503189388 Rocker AxleRocker Axle
-
4503189626 CushionCushion
-
5207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
6233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
7503190260 Rear ShockRear Shock
-
8219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
9503189815 Axle Bar (Sport)Axle Bar (Sport)
-
503190162 Axle Bar (Air). Legend 600. Legend 700.Axle Bar (Air). Legend 600. Legend 700.
-
10506150200 Cushion Rod (Sport)Cushion Rod (Sport)
-
11233281414 Elastique Flanged Nut M8 (Sport)Elastique Flanged Nut M8 (Sport)
-
12224081201 Flat Washer (Sport)Flat Washer (Sport)
-
13207088544 Hex. Screw M8 x 85Hex. Screw M8 x 85
-
14207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
15233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
16414936000 CushionCushion
-
17408200700 Grease FittingGrease Fitting
