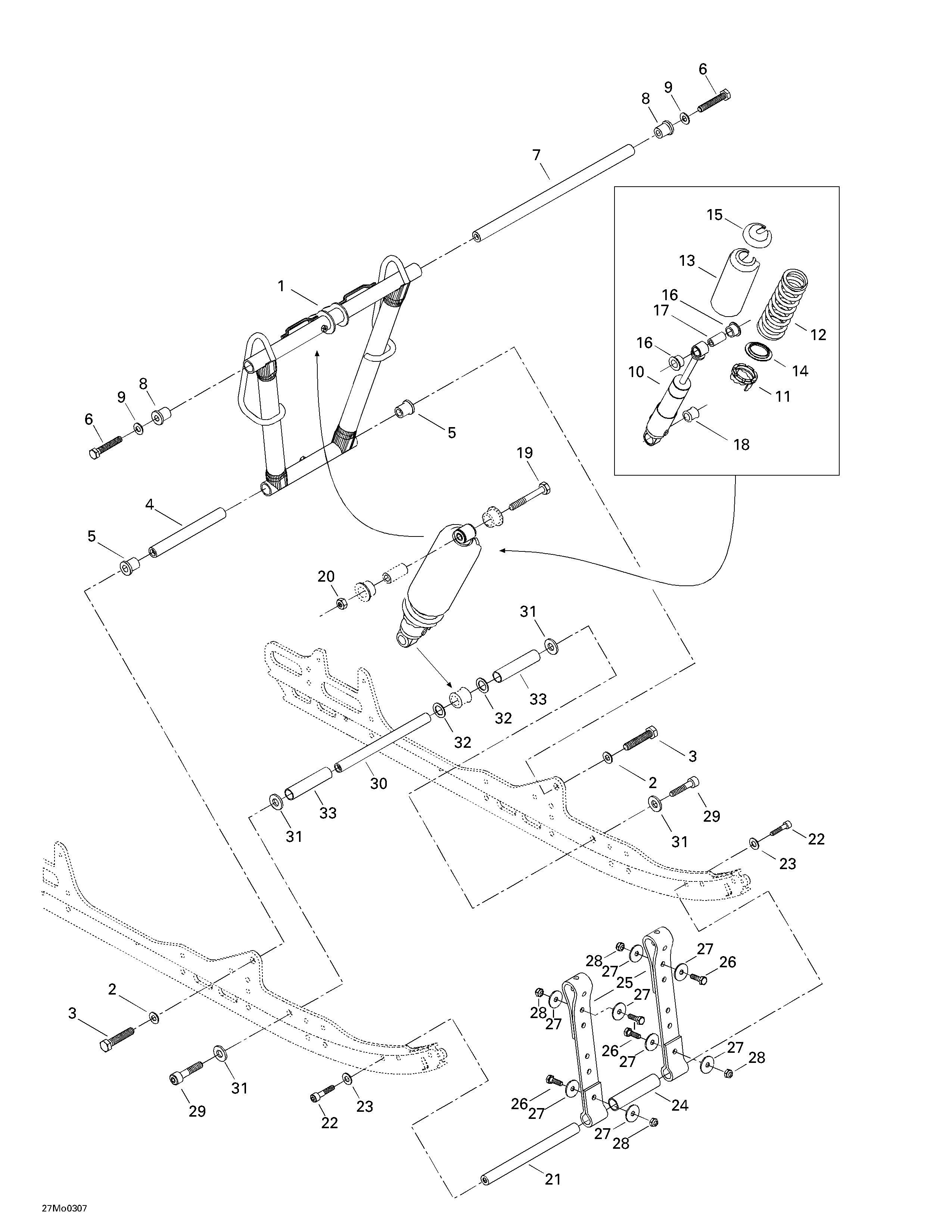

08- Front Arm для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189276 WasherWasher
-
3207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex. Screw M10 x 55 (Scotch Grip)Hex. Screw M10 x 55 (Scotch Grip)
-
7503188938 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 WasherWasher
-
10503189804 Center ShockCenter Shock
-
11505070150 Cam 45 DegCam 45 Deg
-
12503189325 SpringSpring
-
13503188930 ProtectorProtector
-
14517184300 Spring GuideSpring Guide
-
15503140600 Spring StopperSpring Stopper
-
16503189117 CushionCushion
-
17503189282 BushingBushing
-
18503189271 CushionCushion
-
19207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
20233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
21503189562 AxleAxle
-
22205503544 Socket Head Screw M10 x 35 (Scotch Grip)Socket Head Screw M10 x 35 (Scotch Grip)
-
23503189564 WasherWasher
-
24503189265 SpacerSpacer
-
25503189362 Stopper StrapStopper Strap
-
26207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
27224081301 Flat WasherFlat Washer
-
28232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
29205523544 Socket Screw M12 x 35 (Scotch Grip)Socket Screw M12 x 35 (Scotch Grip)
-
30503189272 Center Shock ShaftCenter Shock Shaft
-
31503189276 WasherWasher
-
32503189273 WasherWasher
-
33503189274 SpacerSpacer
