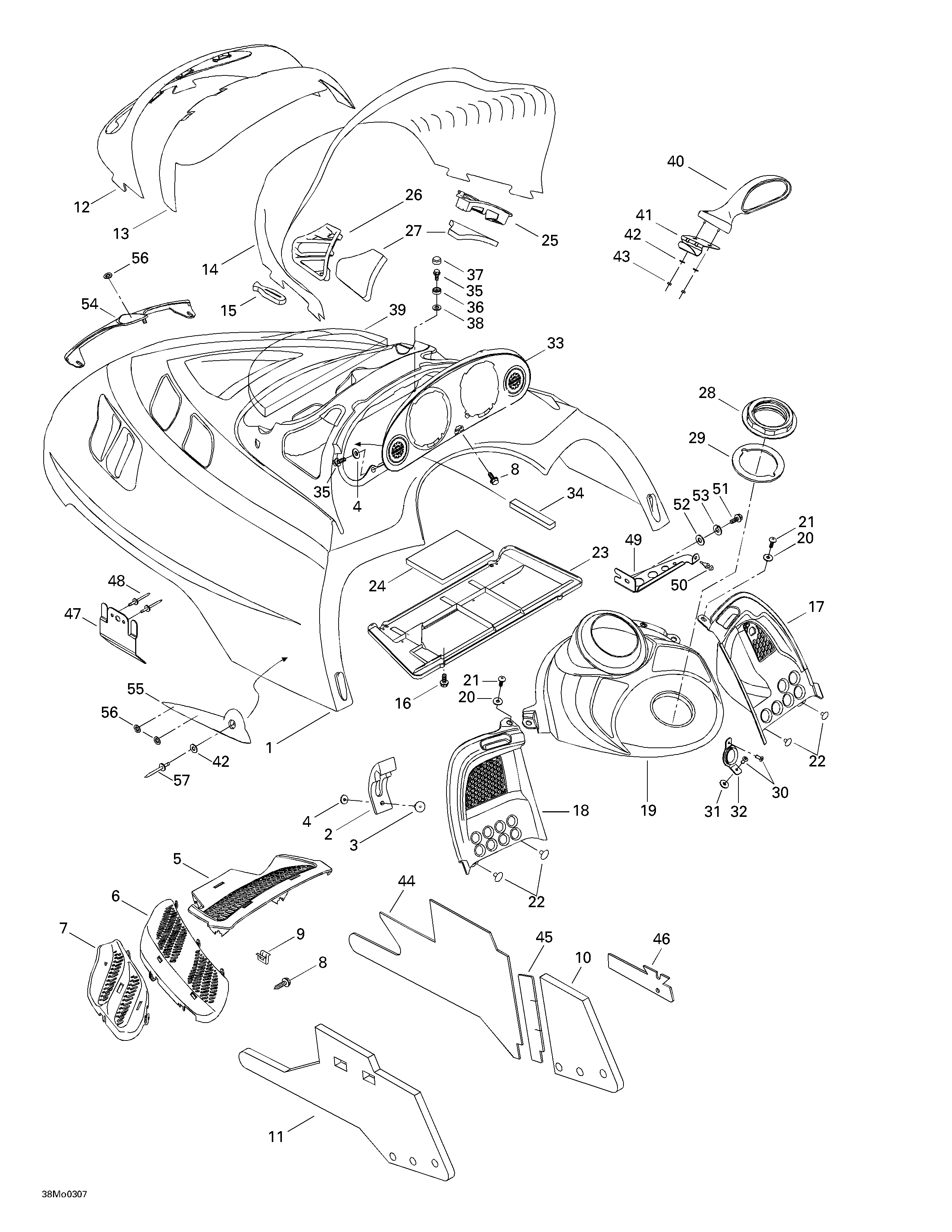

09- Cab, Console для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1517302740 Hood (Black (B-160))Hood (Black (B-160))
-
517302755 Hood (Blue (B-225))Hood (Blue (B-225))
-
2570027100 Hood LatchHood Latch
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5517302026 Center Grill (Black)Center Grill (Black)
-
6517302028 R.H. Intermediate Grill (Black). Legend 500.R.H. Intermediate Grill (Black). Legend 500.
-
517302671 R.H. Intermediate Grill (Black). Legend 600. Legend 700.R.H. Intermediate Grill (Black). Legend 600. Legend 700.
-
517302031 L.H. Intermediate Grill (Black). Legend 500.L.H. Intermediate Grill (Black). Legend 500.
-
517302672 L.H. Intermediate Grill (Black). Legend 600. Legend 700.L.H. Intermediate Grill (Black). Legend 600. Legend 700.
-
7517302034 R.H. Side GrillR.H. Side Grill
-
517302036 L.H. Side GrillL.H. Side Grill
-
8732601210 Hex. Tapping ScrewHex. Tapping Screw
-
9517302785 ClipClip
-
10517302675 R.H. Side FoamR.H. Side Foam
-
11517302630 L.H. Side FoamL.H. Side Foam
-
12517302158 Headlamp Moulding (EB-160 Black)Headlamp Moulding (EB-160 Black)
-
517302762 Headlamp Moulding (EB-211 Blue)Headlamp Moulding (EB-211 Blue)
-
13517302003 Windshield SupportWindshield Support
-
14517302356 WindshieldWindshield
-
15570023800 Windshield LatchWindshield Latch
-
16243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
17517302005 R.H. ConsoleR.H. Console
-
18517302006 L.H. ConsoleL.H. Console
-
19517302757 Center Console (Sport)Center Console (Sport)
-
517302758 Center Console (SE). Legend 600. Legend 700.Center Console (SE). Legend 600. Legend 700.
-
20391301600 WasherWasher
-
21732600030 ScrewScrew
-
22293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
23517302836 Air Intake PlateAir Intake Plate
-
24517302425 Secondary FoamSecondary Foam
-
25517302024 R.H. Air Intake GrillR.H. Air Intake Grill
-
26517302025 L.H. Air Intake GrillL.H. Air Intake Grill
-
27517302151 Air Intake FoamAir Intake Foam
-
28517302043 Console NutConsole Nut
-
29293250029 GasketGasket
-
30390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
31517302286 Rubber StopperRubber Stopper
-
32517302129 Rope GuideRope Guide
-
33517302760 Indicator Support (Sport)Indicator Support (Sport)
-
517302761 Indicator Support (SE, SE AIR). Legend 600. Legend 700.Indicator Support (SE, SE AIR). Legend 600. Legend 700.
-
34517302420 Foam (Sport)Foam (Sport)
-
35241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
36414436800 Retainer CapRetainer Cap
-
37414436900 Snap Cap (Black)Snap Cap (Black)
-
38234042600 Flat Washer 4 mmFlat Washer 4 mm
-
39517302317 Center Foam. (Canada/United States Only)Center Foam. (Canada/United States Only)
-
40517302679 R.H. MirrorR.H. Mirror
-
517302681 L.H. MirrorL.H. Mirror
-
41517302539 Retainer PlateRetainer Plate
-
42517124300 WasherWasher
-
43232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
44514053624 Reflective SheetReflective Sheet
-
45514053450 Reflective SheetReflective Sheet
-
46514053391 Reflective SheetReflective Sheet
-
47517302615 Hood GuideHood Guide
-
48390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
49517302621 R.H. Console SupportR.H. Console Support
-
50517302624 Rubber StopperRubber Stopper
-
51210261280 Hex. Forming Screw M6 x 12Hex. Forming Screw M6 x 12
-
52234061410 Flat WasherFlat Washer
-
53234161471 Lock WasherLock Washer
-
54517302780 Front Hood MouldingFront Hood Moulding
-
55517302781 R.H. Hood MouldingR.H. Hood Moulding
-
517302782 L.H. Hood MouldingL.H. Hood Moulding
-
56732610072 Push NutPush Nut
-
57293150092 Pop Rivet 3/16''Pop Rivet 3/16''
