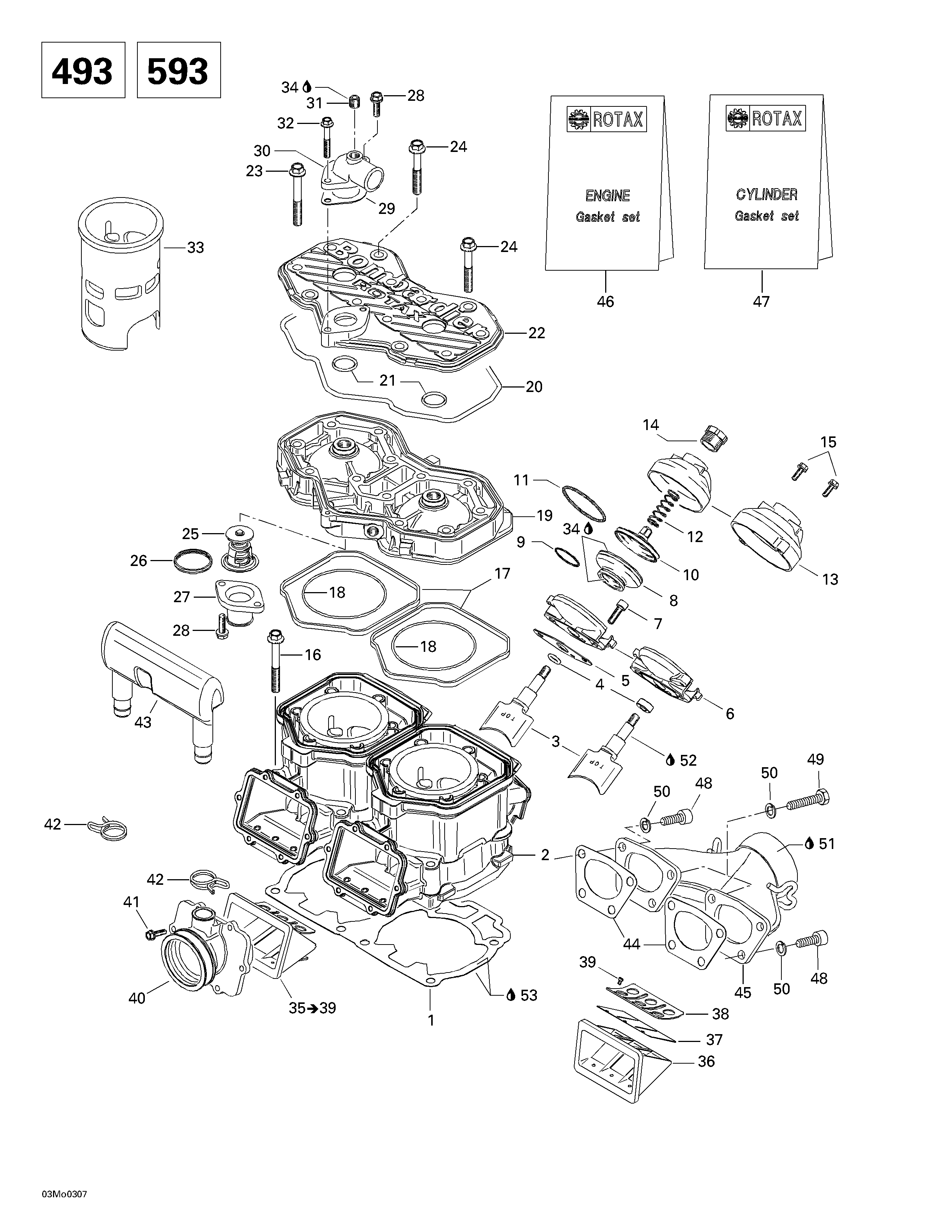

01- Cylinder, Exhaust Manifold, Reed Valve (493 для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1420931589 Double Gasket 0.8 mm. Legend 500.Double Gasket 0.8 mm. Legend 500.
-
420931584 Double Gasket 0.8 mm. Legend 600.Double Gasket 0.8 mm. Legend 600.
-
420931960 Double Gasket 0.7 mm. Legend 500.Double Gasket 0.7 mm. Legend 500.
-
420931962 Double Gasket 0.7 mm. Legend 600.Double Gasket 0.7 mm. Legend 600.
-
420931587 Double Gasket 0.6 mm. Legend 500.Double Gasket 0.6 mm. Legend 500.
-
420931582 Double Gasket 0.6 mm. Legend 600.Double Gasket 0.6 mm. Legend 600.
-
420931588 Double Gasket 0.5 mm. Legend 500.Double Gasket 0.5 mm. Legend 500.
-
420931583 Double Gasket 0.5 mm. Legend 600.Double Gasket 0.5 mm. Legend 600.
-
420931581 Double Gasket 0.4 mm. Legend 600.Double Gasket 0.4 mm. Legend 600.
-
2420613605 Cylinder with Sleeve. Legend 500.Cylinder with Sleeve. Legend 500.
-
420613625 Cylinder with Sleeve. Legend 600.Cylinder with Sleeve. Legend 600.
-
3420854490 Exhaust Valve. Legend 500.Exhaust Valve. Legend 500.
-
420854370 Exhaust Valve. Legend 600.Exhaust Valve. Legend 600.
-
4420430110 O-Ring. Legend 500.O-Ring. Legend 500.
-
420950730 Oil Seal. Legend 500. Legend 600.Oil Seal. Legend 500. Legend 600.
-
5420250239 Gasket. Legend 500. Legend 600.Gasket. Legend 500. Legend 600.
-
6420854266 Valve Housing. Legend 500. Legend 600.Valve Housing. Legend 500. Legend 600.
-
7205062044 Socket Head Screw M6 x 20. Legend 500. Legend 600.Socket Head Screw M6 x 20. Legend 500. Legend 600.
-
8290260723 Bellows. Legend 500. Legend 600.Bellows. Legend 500. Legend 600.
-
9420838253 Spring Clamp. Legend 500. Legend 600.Spring Clamp. Legend 500. Legend 600.
-
10420854449 Exhaust Valve. Legend 500. Legend 600.Exhaust Valve. Legend 500. Legend 600.
-
11290239048 Hose Spring. Legend 500. Legend 600.Hose Spring. Legend 500. Legend 600.
-
12420239948 Spring. Legend 500.Spring. Legend 500.
-
420239944 Spring. Legend 600.Spring. Legend 600.
-
13420911552 Valve Cover. Legend 500. Legend 600.Valve Cover. Legend 500. Legend 600.
-
14420241221 Adjuster Screw. Legend 500. Legend 600.Adjuster Screw. Legend 500. Legend 600.
-
15420841555 Tapping Screw M5 x 20. Legend 500. Legend 600.Tapping Screw M5 x 20. Legend 500. Legend 600.
-
16420640951 Hex. Screw M8 x 68.5. Legend 500. Legend 600.Hex. Screw M8 x 68.5. Legend 500. Legend 600.
-
17420931590 Rubber Ring. Legend 500. Legend 600.Rubber Ring. Legend 500. Legend 600.
-
18420831792 O-Ring. Legend 500.O-Ring. Legend 500.
-
293300026 O-Ring. Legend 600.O-Ring. Legend 600.
-
19420923885 Cylinder Head (Silver). Legend 500.Cylinder Head (Silver). Legend 500.
-
420923454 Cylinder Head (Silver). Legend 600.Cylinder Head (Silver). Legend 600.
-
20290950320 O-Ring. Legend 500. Legend 600.O-Ring. Legend 500. Legend 600.
-
21420430782 O-Ring. Legend 500. Legend 600.O-Ring. Legend 500. Legend 600.
-
22420923460 Cylinder Head Cover (Silver). Legend 500. Legend 600.Cylinder Head Cover (Silver). Legend 500. Legend 600.
-
23420841306 Hex. Collar Screw M8 x 65. Legend 500. Legend 600.Hex. Collar Screw M8 x 65. Legend 500. Legend 600.
-
24420941621 Hex. Collar Screw M8 x 56.5. Legend 500. Legend 600.Hex. Collar Screw M8 x 56.5. Legend 500. Legend 600.
-
25420922517 Thermostat. Legend 500. Legend 600.Thermostat. Legend 500. Legend 600.
-
26420931272 Sealing Ring. Legend 500. Legend 600.Sealing Ring. Legend 500. Legend 600.
-
27420922025 Bent Outlet Socket. Legend 500. Legend 600.Bent Outlet Socket. Legend 500. Legend 600.
-
28420941250 Screw M6 x 20. Legend 500. Legend 600.Screw M6 x 20. Legend 500. Legend 600.
-
29420850338 Gasket. Legend 500. Legend 600.Gasket. Legend 500. Legend 600.
-
30420922062 Bent Outlet Socket. Legend 500. Legend 600.Bent Outlet Socket. Legend 500. Legend 600.
-
31420240480 Plug Screw 1/8-27 NPT. Legend 500. Legend 600.Plug Screw 1/8-27 NPT. Legend 500. Legend 600.
-
32420941451 Hex. Collar Screw M6 x 40. Legend 500. Legend 600.Hex. Collar Screw M6 x 40. Legend 500. Legend 600.
-
33420923861 Cylinder Sleeve. Legend 500.Cylinder Sleeve. Legend 500.
-
420923443 Cylinder Sleeve. Legend 600.Cylinder Sleeve. Legend 600.
-
34420297906 Sealing Compound, 30 ml. Legend 500. Legend 600.Sealing Compound, 30 ml. Legend 500. Legend 600.
-
35420924519 Reed Valve Ass'y. Includes 35 - 39. Legend 500. Legend 600.Reed Valve Ass'y. Includes 35 - 39. Legend 500. Legend 600.
-
37420924532 Reed Pedal. Legend 500. Legend 600.Reed Pedal. Legend 500. Legend 600.
-
38420924539 Reed Pedal Stop. Legend 500. Legend 600.Reed Pedal Stop. Legend 500. Legend 600.
-
39420941215 Screw M3 x 5. Legend 500. Legend 600.Screw M3 x 5. Legend 500. Legend 600.
-
40420867882 Carburetor Socket. Legend 500. Legend 600.Carburetor Socket. Legend 500. Legend 600.
-
41420941925 Screw M5 x 16. Legend 500. Legend 600.Screw M5 x 16. Legend 500. Legend 600.
-
42420851440 Clamp. Legend 500. Legend 600.Clamp. Legend 500. Legend 600.
-
43420867817 Intake Resonator. Legend 500. Legend 600.Intake Resonator. Legend 500. Legend 600.
-
44420931615 Gasket. Legend 500.Gasket. Legend 500.
-
420931610 Gasket. Legend 600.Gasket. Legend 600.
-
45420973650 Exhaust Manifold. Legend 500.Exhaust Manifold. Legend 500.
-
420979543 Exhaust Manifold. Legend 600.Exhaust Manifold. Legend 600.
-
46420888722 Engine Gasket Set. Legend 500.Engine Gasket Set. Legend 500.
-
420888584 Engine Gasket Set. Legend 600.Engine Gasket Set. Legend 600.
-
47420888726 Cylinder Gasket Set. Legend 500.Cylinder Gasket Set. Legend 500.
-
420888588 Cylinder Gasket Set. Legend 600.Cylinder Gasket Set. Legend 600.
-
48205082544 Socket Head Screw M8 x 25. Legend 500. Legend 600.Socket Head Screw M8 x 25. Legend 500. Legend 600.
-
49207182044 Hex. Screw M8 x 20. Legend 500. Legend 600.Hex. Screw M8 x 20. Legend 500. Legend 600.
-
50234181401 Lock Washer 8 mm. Legend 500. Legend 600.Lock Washer 8 mm. Legend 500. Legend 600.
-
51413710300 Sealant, Loctite 17914, 80 ml. Legend 500. Legend 600.Sealant, Loctite 17914, 80 ml. Legend 500. Legend 600.
-
52711297433 Molykote G-n Paste, Dow Corning, 50 g. Legend 500. Legend 600.Molykote G-n Paste, Dow Corning, 50 g. Legend 500. Legend 600.
-
53293800038 Loctite 518, 50 ml. Legend 500. Legend 600.Loctite 518, 50 ml. Legend 500. Legend 600.
