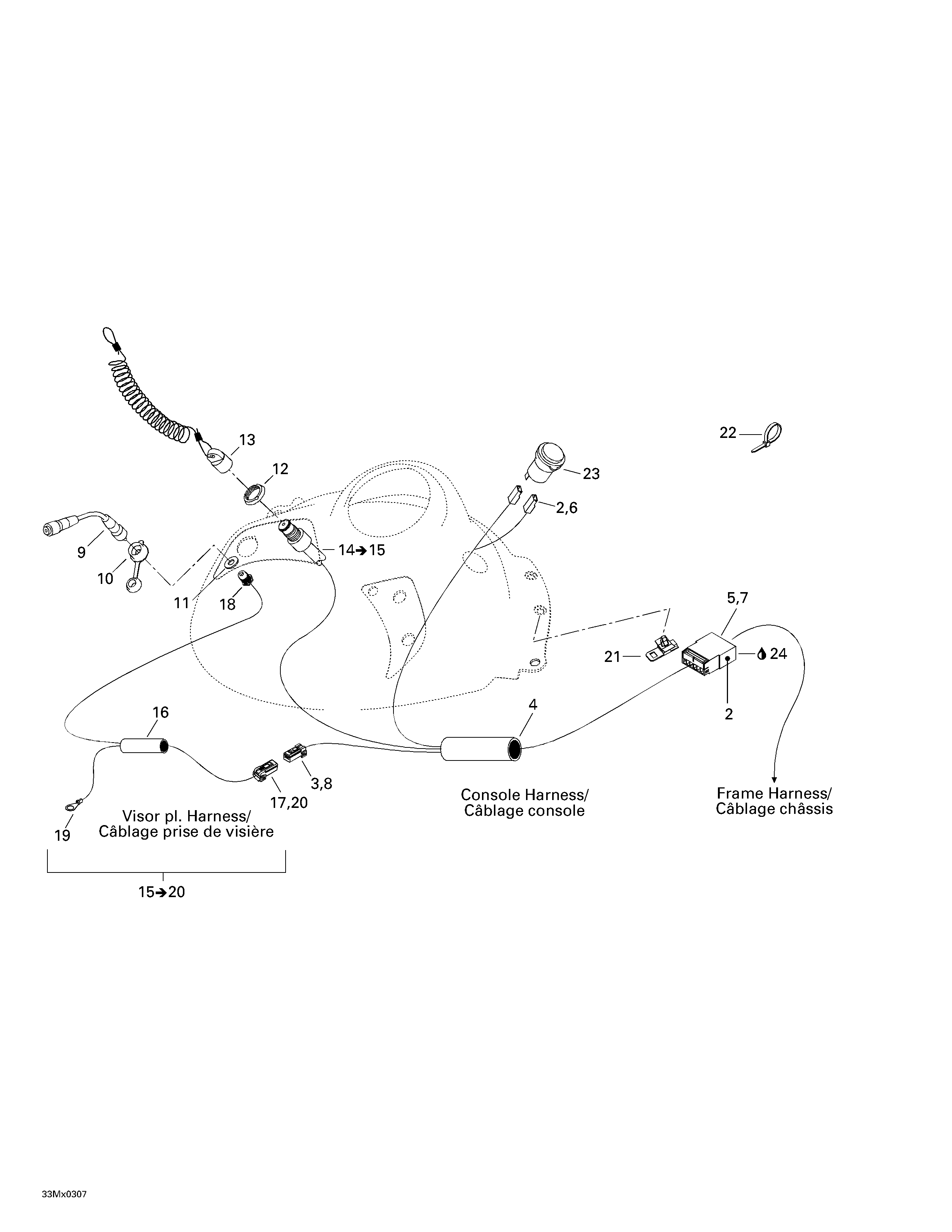

10- Console Harness для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1515175826 Console Harness. Includes 1 - 8.Console Harness. Includes 1 - 8.
-
2409010400 Female Terminal Housing (1 circuit)Female Terminal Housing (1 circuit)
-
3515175231 Female TerminalFemale Terminal
-
4515175314 TubingTubing
-
5515175662 Male Housing (6 circuits)Male Housing (6 circuits)
-
6409010100 Female TerminalFemale Terminal
-
7515175232 Male terminalMale terminal
-
8515175658 Female Housing (2 circuits)Female Housing (2 circuits)
-
9515175971 Visor Plug ExtensionVisor Plug Extension
-
10572103300 CapCap
-
11503175800 WasherWasher
-
12278000508 Safety Switch NutSafety Switch Nut
-
13515166900 DESS Cap Ass'yDESS Cap Ass'y
-
14515175145 DESS Switch. Includes 14 - 15.DESS Switch. Includes 14 - 15.
-
15515175799 Visor Plug Harness. Includes 15 - 20.Visor Plug Harness. Includes 15 - 20.
-
16515175332 Tubing 1/4''Tubing 1/4''
-
17515175654 Male Housing (2 circuits)Male Housing (2 circuits)
-
20515175232 Male TerminalMale Terminal
-
21515175283 Housing SupportHousing Support
-
22293750002 Tie Rap 130 mmTie Rap 130 mm
-
23710000024 Outlet (SE). Legend 600. Legend 700.Outlet (SE). Legend 600. Legend 700.
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
