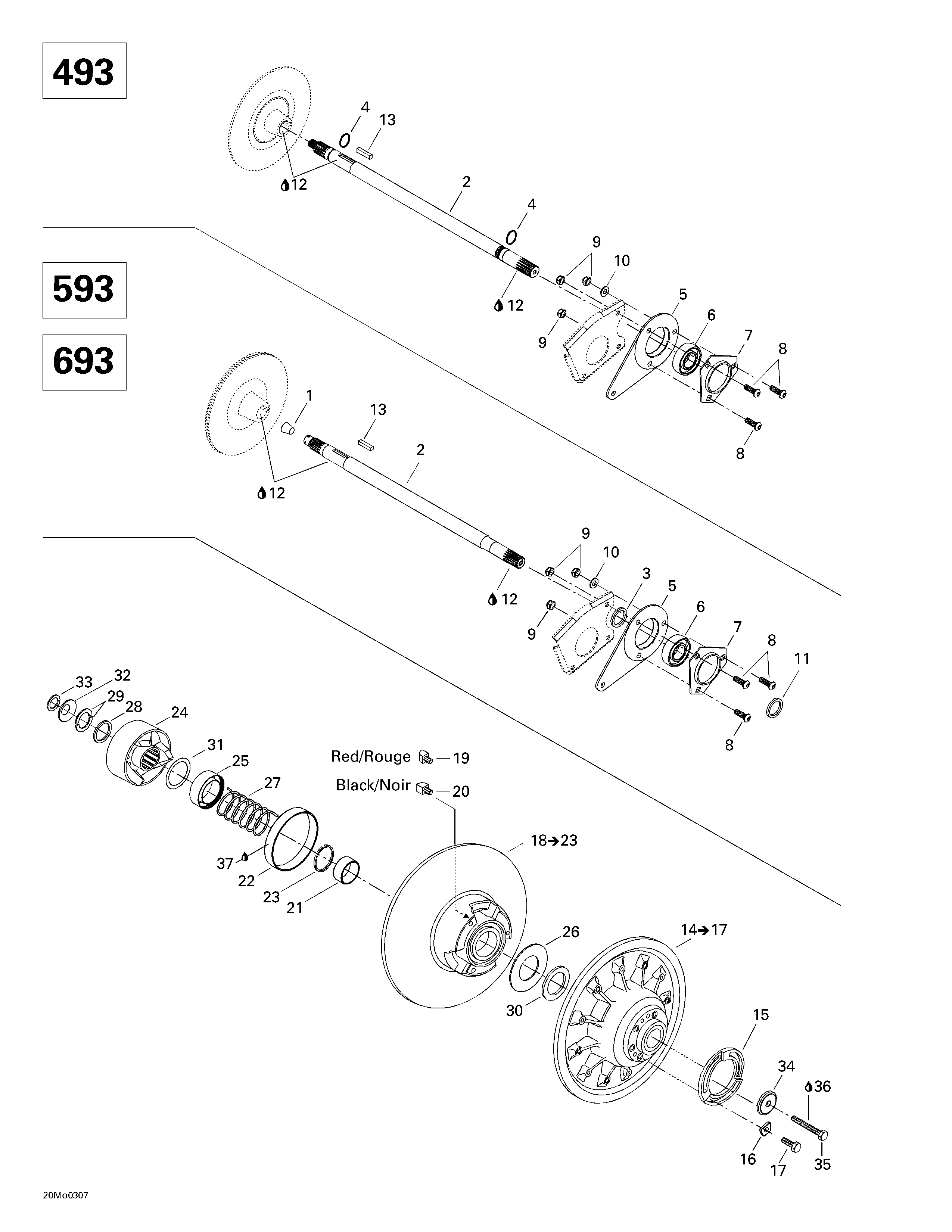

05- Driven Pulley для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1414784800 Cork. Legend 600. Legend 700.Cork. Legend 600. Legend 700.
-
2504151858 Countershaft. Legend 500.Countershaft. Legend 500.
-
501026300 Countershaft. Legend 600. Legend 700.Countershaft. Legend 600. Legend 700.
-
3504149100 Spacer. Legend 600. Legend 700.Spacer. Legend 600. Legend 700.
-
4371910000 Circlip. Legend 500.Circlip. Legend 500.
-
5080044200 Casting SpacerCasting Spacer
-
6504152008 Ball Bearing. Legend 500.Ball Bearing. Legend 500.
-
504152026 Ball Bearing. Legend 600. Legend 700.Ball Bearing. Legend 600. Legend 700.
-
7501025000 FlangeFlange
-
8205482546 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10234081410 Flat Washer 8 mmFlat Washer 8 mm
-
11504149100 Spacer. Legend 600. Legend 700.Spacer. Legend 600. Legend 700.
-
12293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
13507021300 KeyKey
-
14417126527 Fixed Flange Ass'y. Includes 14 - 17.Fixed Flange Ass'y. Includes 14 - 17.
-
15415005800 Adjustment RingAdjustment Ring
-
16415005900 Adjustment ShimAdjustment Shim
-
17207162544 Hex. Screw M6 x 25 (3)Hex. Screw M6 x 25 (3)
-
207162244 Hex. Screw M6 x 22 (3)Hex. Screw M6 x 22 (3)
-
18417126318 Sliding Flange Ass'y. Includes 18 - 23.Sliding Flange Ass'y. Includes 18 - 23.
-
19417126373 Rear Cam Shoe Slider (Red)Rear Cam Shoe Slider (Red)
-
20417126374 Front Cam Shoe Slider (Black)Front Cam Shoe Slider (Black)
-
22414978100 BushingBushing
-
23371911200 CirclipCirclip
-
24413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
417126445 Cam Ass'y 44 Deg. Legend 500.Cam Ass'y 44 Deg. Legend 500.
-
417126577 Cam Ass'y 47 Deg. Legend 600. Legend 700.Cam Ass'y 47 Deg. Legend 600. Legend 700.
-
25417126381 GuardGuard
-
26504099600 Thrust WasherThrust Washer
-
27414978300 Release SpringRelease Spring
-
28417126375 SpacerSpacer
-
29371911000 Half KeyHalf Key
-
30504112300 ShimShim
-
31417126322 Swivel AbutmentSwivel Abutment
-
32417300055 ProtectorProtector
-
33417300054 SpacerSpacer
-
34517302322 WasherWasher
-
35207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
37413703100 Loctite 609, 10 mlLoctite 609, 10 ml
