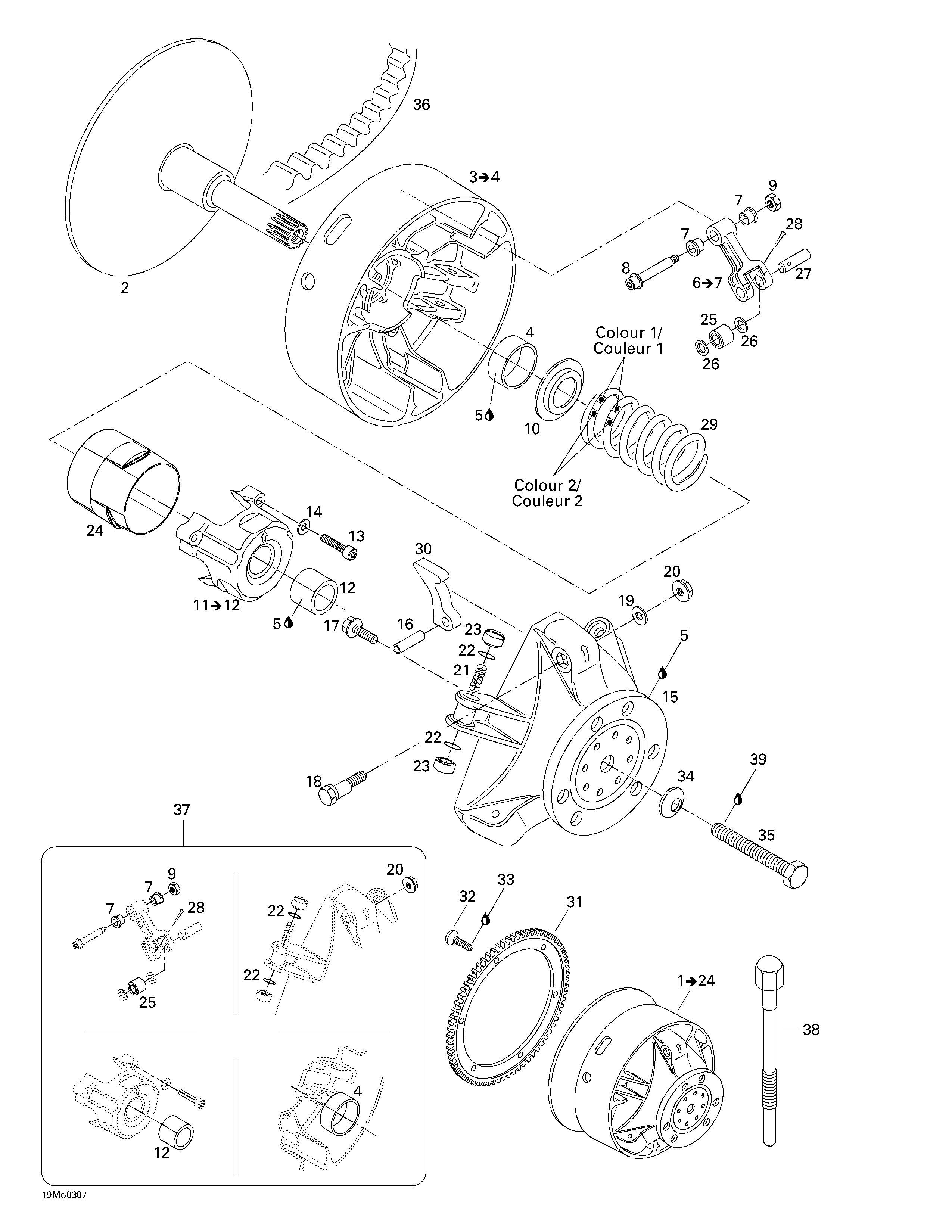

05- Drive Pulley для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
2417222407 Fixed Flange. Legend 500.Fixed Flange. Legend 500.
-
417222411 Fixed Flange. Legend 600. Legend 700.Fixed Flange. Legend 600. Legend 700.
-
3417222241 Sliding Flange Ass'y. Includes 3 - 4.Sliding Flange Ass'y. Includes 3 - 4.
-
4417004201 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6417222383 Lever Ass'y. Includes 6 - 7.Lever Ass'y. Includes 6 - 7.
-
7417004305 BushingBushing
-
8417004800 Screw Ass'yScrew Ass'y
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10417222044 Spring SeatSpring Seat
-
11417222304 Spring Cover Ass'y. Includes 11 - 12.Spring Cover Ass'y. Includes 11 - 12.
-
12417004501 BushingBushing
-
13250000038 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
14420245370 WasherWasher
-
15417222081 Governor Cup Ass'yGovernor Cup Ass'y
-
16732804009 Rolled Pin M8 x 24Rolled Pin M8 x 24
-
17210361890 Hex. Forming Screw M6 x 18Hex. Forming Screw M6 x 18
-
18417005500 Calibration ScrewCalibration Screw
-
19417005600 WasherWasher
-
20233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
21417005700 SpringSpring
-
22732401030 O-RingO-Ring
-
23417005800 Slider ShoeSlider Shoe
-
24417222176 Guard. Legend 600. Legend 700.Guard. Legend 600. Legend 700.
-
25417003900 Roller Ass'yRoller Ass'y
-
26417004302 Stopper WasherStopper Washer
-
27417004308 PinPin
-
28732958001 Cotter PinCotter Pin
-
29414949500 Spring (Violet/Pink). Legend 500.Spring (Violet/Pink). Legend 500.
-
414817900 Spring (Violet/violet). Legend 600.Spring (Violet/violet). Legend 600.
-
414689500 Spring (Blue/Yellow). Legend 700.Spring (Blue/Yellow). Legend 700.
-
30417222376 Ramp 283. Legend 500.Ramp 283. Legend 500.
-
417222372 Ramp 299. Legend 600. Legend 700.Ramp 299. Legend 600. Legend 700.
-
31417300057 Ring GearRing Gear
-
32236281684 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
33293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
34250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
35417120000 Drive Pulley BoltDrive Pulley Bolt
-
36414860700 Drive Belt. Legend 500. Legend 600.Drive Belt. Legend 500. Legend 600.
-
417300127 Drive Belt. Legend 700.Drive Belt. Legend 700.
-
37417006100 Clutch Repair KitClutch Repair Kit
-
38529022400 Puller Inner HalfPuller Inner Half
-
39293800005 Loctite 271, 10 mlLoctite 271, 10 ml
