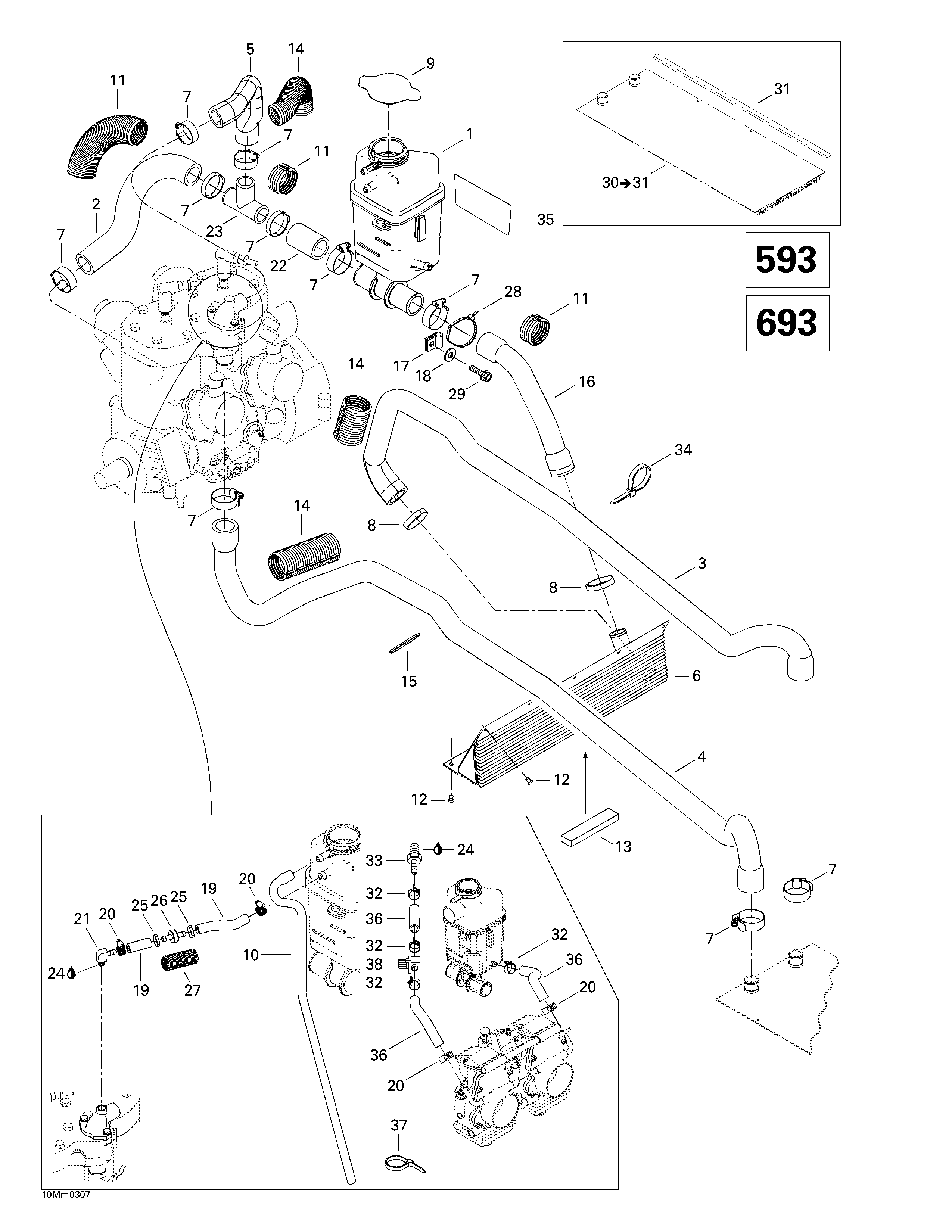

01- Cooling System (593) для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1509000167 Tank Coolant. Legend 600. Legend 700.Tank Coolant. Legend 600. Legend 700.
-
2509000141 Engine Inlet Hose. Legend 600. Legend 700.Engine Inlet Hose. Legend 600. Legend 700.
-
3509000003 Radiator Inlet Hose. Legend 600. Legend 700.Radiator Inlet Hose. Legend 600. Legend 700.
-
4509000145 Radiator Outlet Hose. Legend 600. Legend 700.Radiator Outlet Hose. Legend 600. Legend 700.
-
5509000142 Hose. Legend 600. Legend 700.Hose. Legend 600. Legend 700.
-
6509000146 Front Radiator. Legend 600. Legend 700.Front Radiator. Legend 600. Legend 700.
-
7408800400 Tridon Clamp. Legend 600. Legend 700.Tridon Clamp. Legend 600. Legend 700.
-
8509000045 Oetiker Clamp. Legend 600. Legend 700.Oetiker Clamp. Legend 600. Legend 700.
-
9509000187 Pressure Cap. Legend 600. Legend 700.Pressure Cap. Legend 600. Legend 700.
-
10415110000 Polyurethane Hose 5.2 mm. Legend 600. Legend 700.Polyurethane Hose 5.2 mm. Legend 600. Legend 700.
-
11415084700 Protective Shield. Legend 600. Legend 700.Protective Shield. Legend 600. Legend 700.
-
12390402200 Pop Rivet 3/16''. Legend 600. Legend 700.Pop Rivet 3/16''. Legend 600. Legend 700.
-
13293200003 Seal. Legend 600. Legend 700.Seal. Legend 600. Legend 700.
-
14409902200 Tubing. Legend 600. Legend 700.Tubing. Legend 600. Legend 700.
-
15293750008 Tie Rap 350 mm. Legend 600. Legend 700.Tie Rap 350 mm. Legend 600. Legend 700.
-
16509000144 Radiator Outlet Hose. Legend 600. Legend 700.Radiator Outlet Hose. Legend 600. Legend 700.
-
17415052400 Attache. Legend 600. Legend 700.Attache. Legend 600. Legend 700.
-
18391301600 Washer. Legend 600. Legend 700.Washer. Legend 600. Legend 700.
-
19509000093 Hose 8 mm. Legend 600. Legend 700.Hose 8 mm. Legend 600. Legend 700.
-
20293650128 Tridon Clamp. Legend 600. Legend 700.Tridon Clamp. Legend 600. Legend 700.
-
21293700020 Elbow Fitting 90 Deg. Legend 600. Legend 700.Elbow Fitting 90 Deg. Legend 600. Legend 700.
-
22509000143 Hose. Legend 600. Legend 700.Hose. Legend 600. Legend 700.
-
23414619900 T Fitting. Legend 600. Legend 700.T Fitting. Legend 600. Legend 700.
-
24293800018 Loctite 592, Pipe Sealant, 50 ml. Legend 600. Legend 700.Loctite 592, Pipe Sealant, 50 ml. Legend 600. Legend 700.
-
25293650053 Crimp Clamp. Legend 600. Legend 700.Crimp Clamp. Legend 600. Legend 700.
-
26509000153 Check Valve. Legend 600. Legend 700.Check Valve. Legend 600. Legend 700.
-
27415080000 Tubing 16 mm. Legend 600. Legend 700.Tubing 16 mm. Legend 600. Legend 700.
-
28509000165 Tie Rap. Legend 600. Legend 700.Tie Rap. Legend 600. Legend 700.
-
29210252040 Hex. Flanged Screw M5. Legend 600. Legend 700.Hex. Flanged Screw M5. Legend 600. Legend 700.
-
30518322901 Rear Radiator. Includes 30 - 31. Legend 600. Legend 700.Rear Radiator. Includes 30 - 31. Legend 600. Legend 700.
-
31518321655 Radiator Protector. Legend 600. Legend 700.Radiator Protector. Legend 600. Legend 700.
-
32414655700 Spring Clamp. Legend 600. Legend 700.Spring Clamp. Legend 600. Legend 700.
-
33293710082 Straight Fitting. Legend 600. Legend 700.Straight Fitting. Legend 600. Legend 700.
-
34293750008 Tie Rap 350 mm. Legend 600. Legend 700.Tie Rap 350 mm. Legend 600. Legend 700.
-
35514053399 Reflective Sheet. Legend 600. Legend 700.Reflective Sheet. Legend 600. Legend 700.
-
36509000093 Hose 8 mm. Legend 600. Legend 700.Hose 8 mm. Legend 600. Legend 700.
-
37293750002 Tie Rap 130 mm. Legend 600. Legend 700.Tie Rap 130 mm. Legend 600. Legend 700.
-
38512059324 Valve 5/16''. Legend 600. Legend 700.Valve 5/16''. Legend 600. Legend 700.
