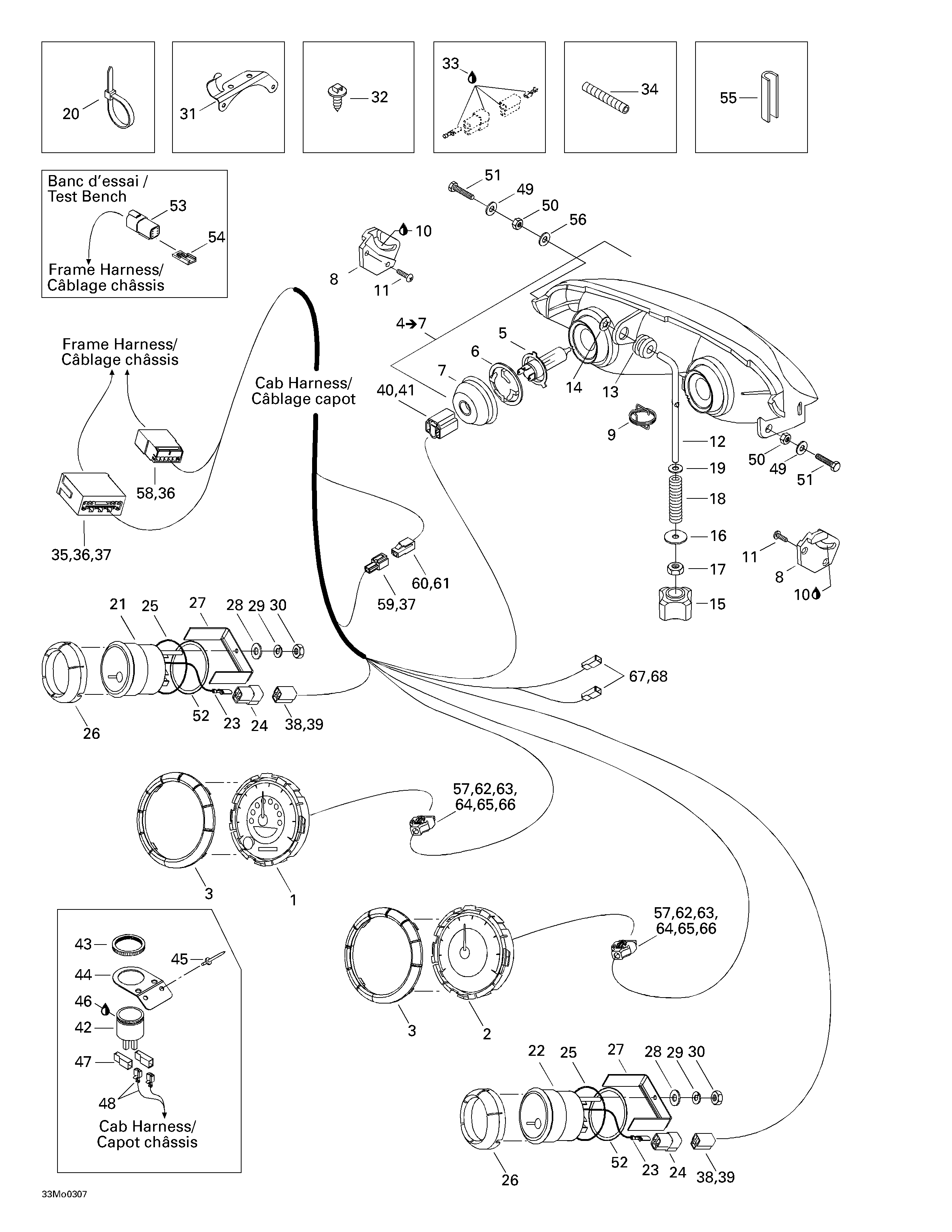

10- Cab Harness для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1515175942 Electronic Speedometer (KMH)Electronic Speedometer (KMH)
-
2515175943 TachometerTachometer
-
3515175651 Gauge RingGauge Ring
-
4515175909 Halogen Headlamp. Includes 4 - 7.Halogen Headlamp. Includes 4 - 7.
-
5410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
6515175910 Bulb HolderBulb Holder
-
7515175911 CoverCover
-
8517289300 Headlamp Support R.H. (B-211) (RIM)Headlamp Support R.H. (B-211) (RIM)
-
517289400 Headlamp Support L.H. (B-211) (RIM)Headlamp Support L.H. (B-211) (RIM)
-
9515175324 Spring (Europe). Legend 600. Legend 700.Spring (Europe). Legend 600. Legend 700.
-
10413707500 Grease Tube LMZ, 400 gGrease Tube LMZ, 400 g
-
11732601315 Headlamp ScrewHeadlamp Screw
-
12517295800 Adjuster RodAdjuster Rod
-
13415100800 GrommetGrommet
-
14732610072 Push NutPush Nut
-
15515175548 HandleHandle
-
16224060251 WasherWasher
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18415100600 SpringSpring
-
19234061410 Flat Washer 6 mmFlat Washer 6 mm
-
20293750002 Locking Tie 142 mmLocking Tie 142 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
293750001 Tie Rap 94 mmTie Rap 94 mm
-
21515175601 Temperature Gauge (SE). Legend 600. Legend 700.Temperature Gauge (SE). Legend 600. Legend 700.
-
22515175529 Fuel Gauge (SE). Legend 600. Legend 700.Fuel Gauge (SE). Legend 600. Legend 700.
-
23409210000 Male Terminal (SE). Legend 600. Legend 700.Male Terminal (SE). Legend 600. Legend 700.
-
24409204200 Male Terminal Housing. (3 Circuits) (SE) Legend 600. Legend 700.Male Terminal Housing. (3 Circuits) (SE) Legend 600. Legend 700.
-
25414807200 O-Ring (SE). Legend 600. Legend 700.O-Ring (SE). Legend 600. Legend 700.
-
26515175711 Ring Gauge. Legend 600. Legend 700.Ring Gauge. Legend 600. Legend 700.
-
27415099800 Case Holder (SE). Legend 600. Legend 700.Case Holder (SE). Legend 600. Legend 700.
-
28391301700 Flat Washer (SE). Legend 600. Legend 700.Flat Washer (SE). Legend 600. Legend 700.
-
29414833700 Lock Washer (SE). Legend 600. Legend 700.Lock Washer (SE). Legend 600. Legend 700.
-
30414833600 Nut (SE). Legend 600. Legend 700.Nut (SE). Legend 600. Legend 700.
-
31515175254 Cable SupportCable Support
-
32293730018 Dart MountDart Mount
-
33293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
34409902100 Tubing (6 mm)Tubing (6 mm)
-
415079900 Tubing (10 mm)Tubing (10 mm)
-
409901800 Tubing (13 mm)Tubing (13 mm)
-
415080000 Tubing (16 mm)Tubing (16 mm)
-
35515175720 Male Terminal Housing (11 circuits)Male Terminal Housing (11 circuits)
-
36515175232 Male TerminalMale Terminal
-
37515175273 Male TerminalMale Terminal
-
38409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
39409205300 Female TerminalFemale Terminal
-
40409202700 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
41515175321 Female TerminalFemale Terminal
-
42415060900 HornHorn
-
43414805101 Plastic NutPlastic Nut
-
44515175688 Painted PlatePainted Plate
-
45390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
46296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
47409010400 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
48409010100 Female TerminalFemale Terminal
-
49234051410 Flat WasherFlat Washer
-
50250100018 Well-Nut M5Well-Nut M5
-
51207053544 Hex. Screw M5 x 35Hex. Screw M5 x 35
-
52517258600 Washer. Legend 600. Legend 700.Washer. Legend 600. Legend 700.
-
53515175668 Male Terminal Housing (6 circuits)Male Terminal Housing (6 circuits)
-
54270000141 ClipClip
-
55271000110 Trim ProtectorTrim Protector
-
56234001410 Flat Washer 10 mm (B-160 Black)Flat Washer 10 mm (B-160 Black)
-
57515175801 Female Terminal Housing (24 circuits)Female Terminal Housing (24 circuits)
-
58515175662 Male HousingMale Housing
-
59515175509 Male HousingMale Housing
-
60515175510 Female HousingFemale Housing
-
61515175282 Female TerminalFemale Terminal
-
62515175812 PlugPlug
-
63515175802 Female SupportFemale Support
-
64515175803 SealSeal
-
65515175804 HousingHousing
-
66515175806 Female TerminalFemale Terminal
-
67410010100 Female TerminalFemale Terminal
-
68409010400 Female HousingFemale Housing
