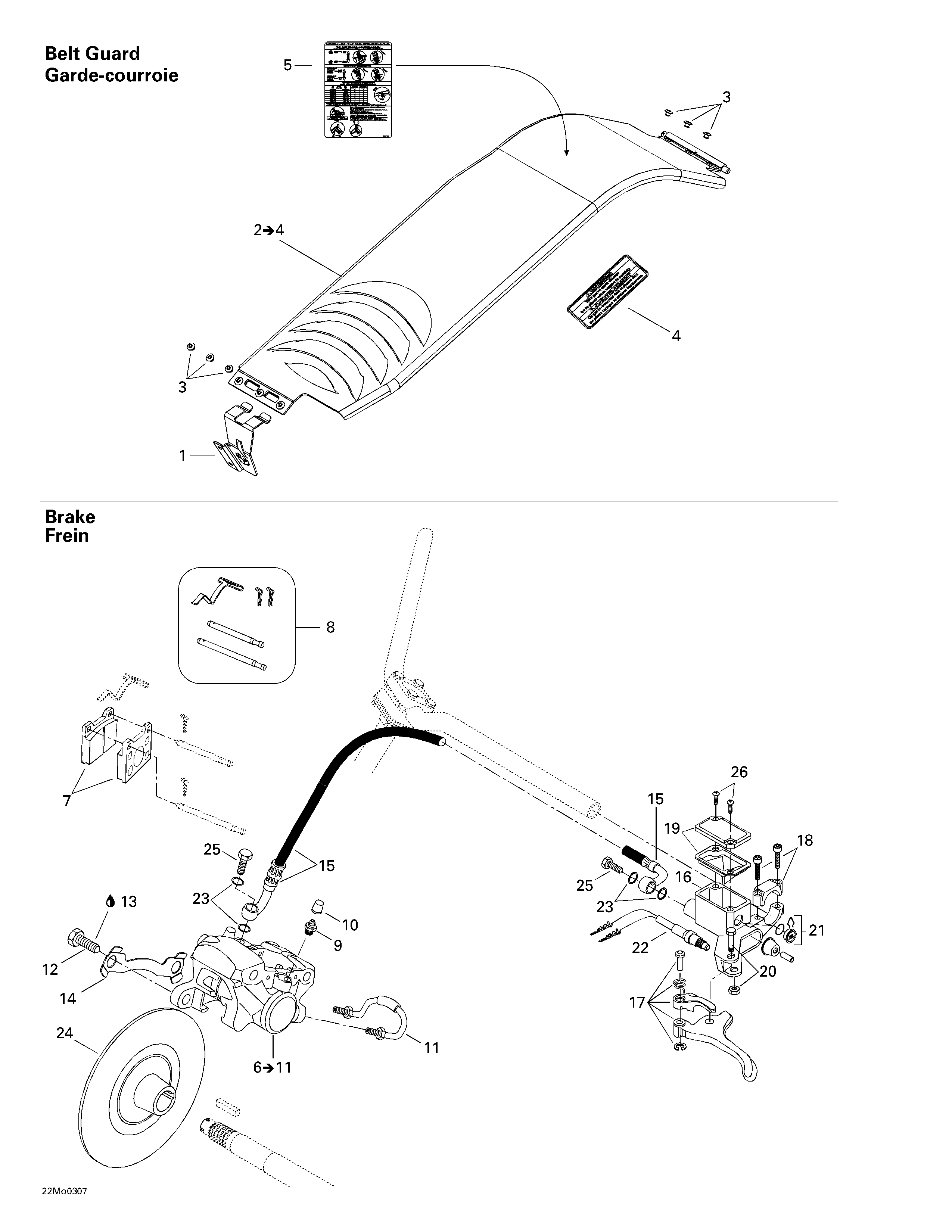

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300173 Belt Guard Ass'y. Includes 2 - 4.Belt Guard Ass'y. Includes 2 - 4.
-
3390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
4516001190 Warning LabelWarning Label
-
5516001639 Suspension Adjustment DecalSuspension Adjustment Decal
-
6507032349 Caliper. Includes 6 - 11.Caliper. Includes 6 - 11.
-
7415053600 Brake Lining KitBrake Lining Kit
-
8414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
9414989800 Screw-BleederScrew-Bleeder
-
10414989700 BootBoot
-
11414989900 Rigid TubingRigid Tubing
-
12207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14507032316 Locking TabLocking Tab
-
15507032237 HoseHose
-
16507032362 Master Cylinder. Includes 16 - 22.Master Cylinder. Includes 16 - 22.
-
17507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
18415029800 Clamp Ass'yClamp Ass'y
-
19415029900 CapCap
-
20415030000 Pin Ass'yPin Ass'y
-
21414990600 WindowWindow
-
22507032366 MicroswitchMicroswitch
-
23414920600 WasherWasher
-
24507032203 Brake Disk. Legend 500Brake Disk. Legend 500
-
24507031300 Brake Disk. Legend 600/700Brake Disk. Legend 600/700
-
25414920500 Banjo BoltBanjo Bolt
-
26216141260 Screw M4 x 12Screw M4 x 12
